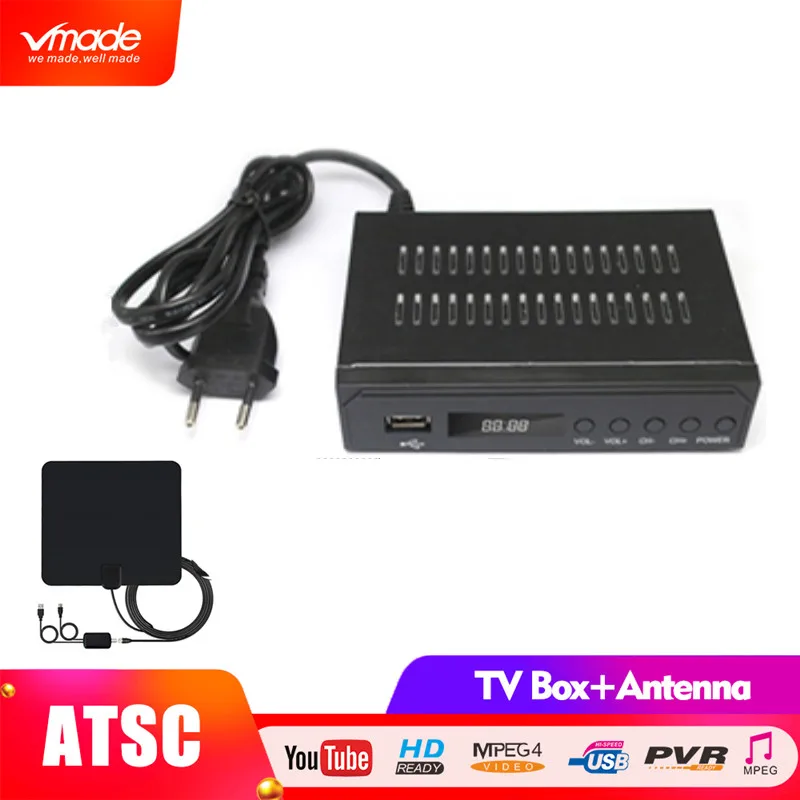

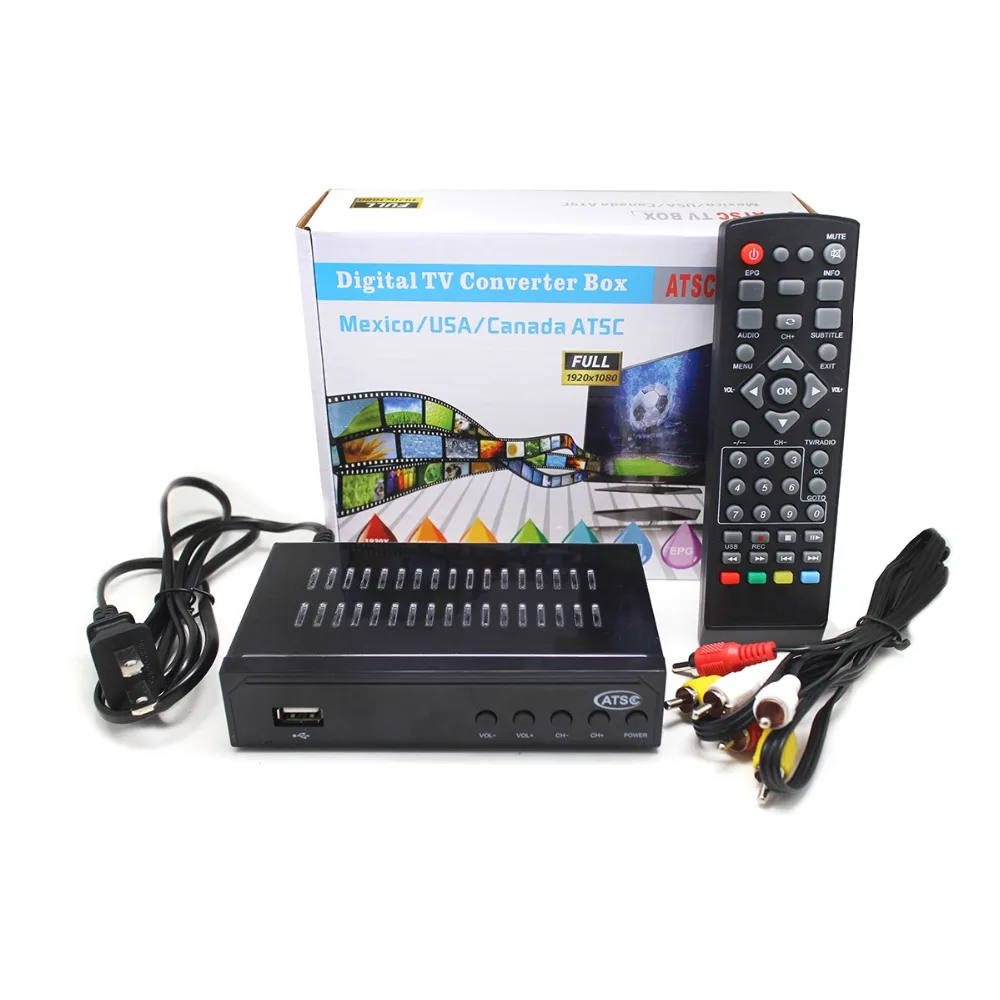

           ATSC TV BOX HD Digital TV Converter Box Terrestrial Antenna Signal TV

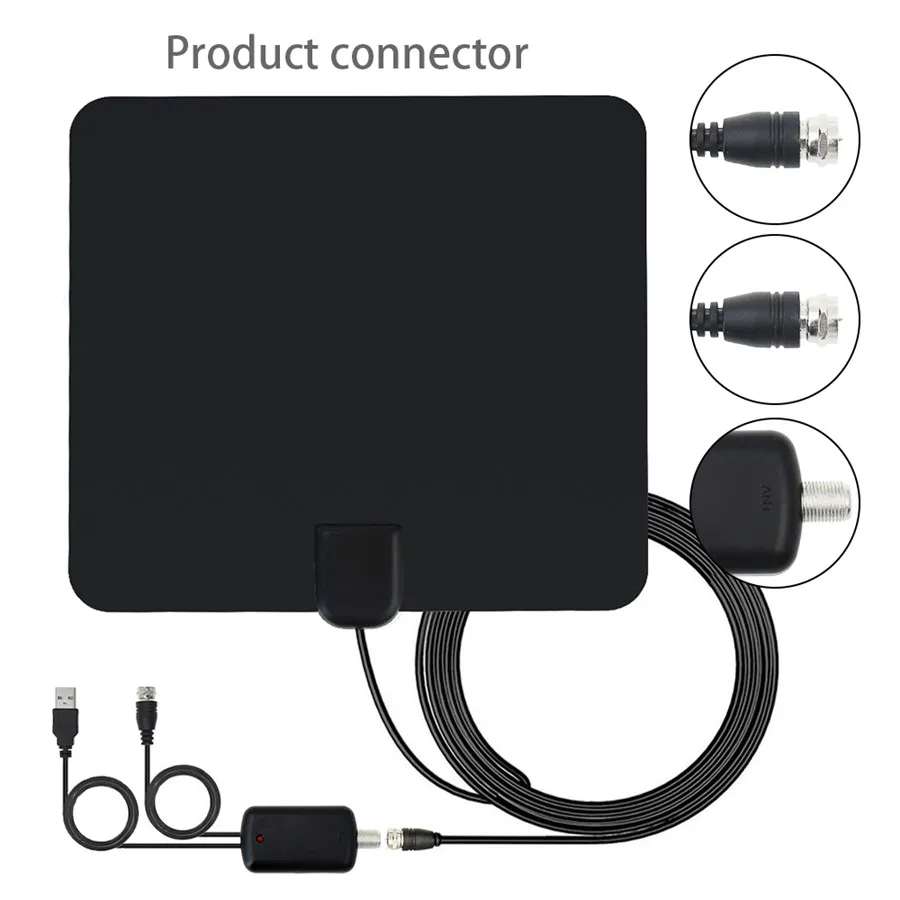

                       Tuner receiver support Dobly AC-3 with Indoor TV Antenna

Features

• Memory: 32X16Mbit  DDR2 Frequency1066
• Flash: 32M bytes
• Demodulator Type: MSB1237 Chip Set
• TUNER:Rafael R836
• CPU:MSTAR-MSD7802(128 pin) MIPS 34Kf@600MHZ

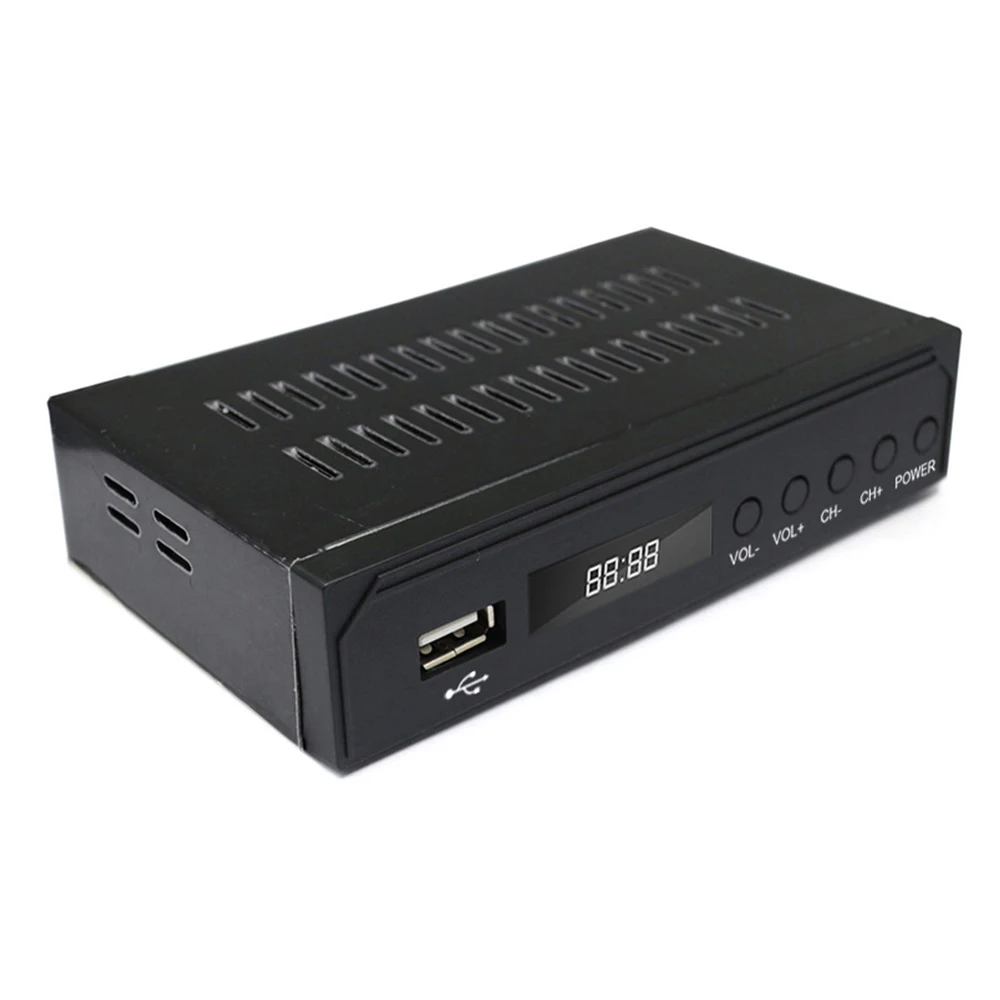

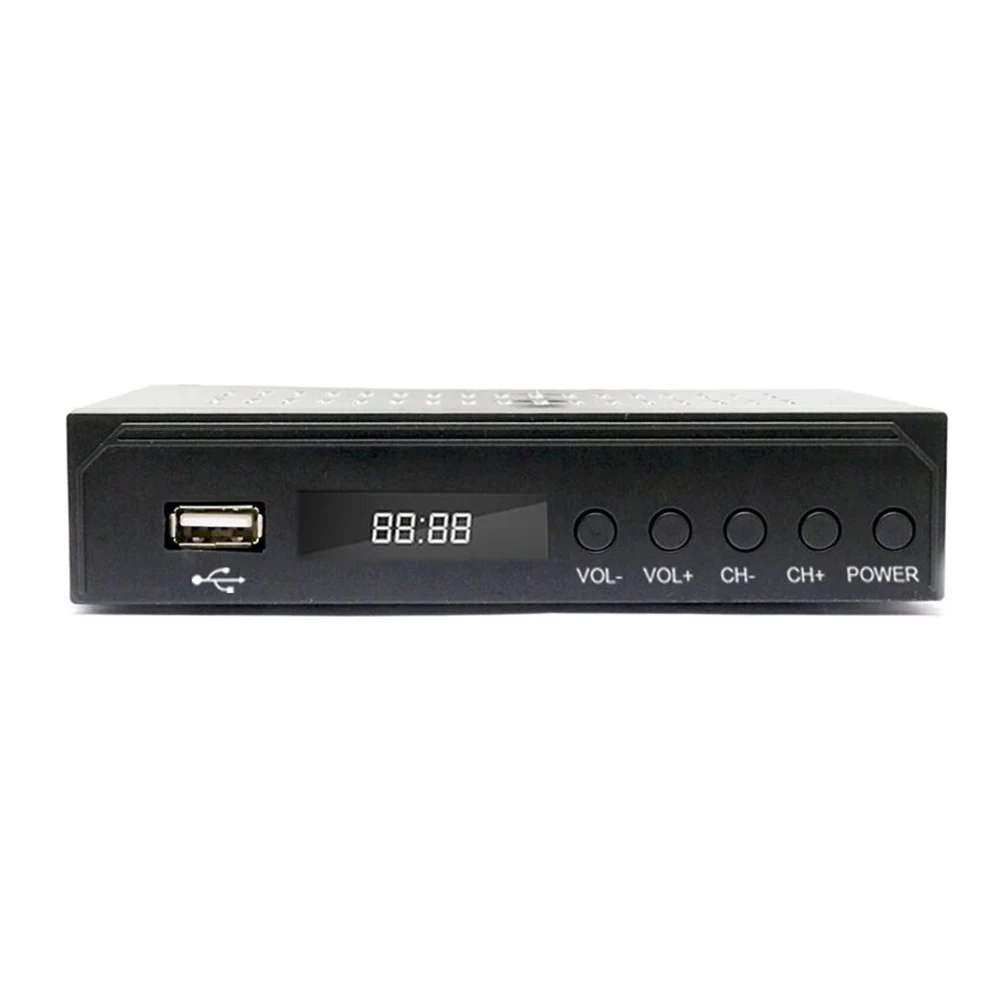

Front Panel

• USB 2.0:Embedded One Host,
• Front Panel:4-digit LED display on front panel ;
• RED  LED Standby,GREEN LED Lock

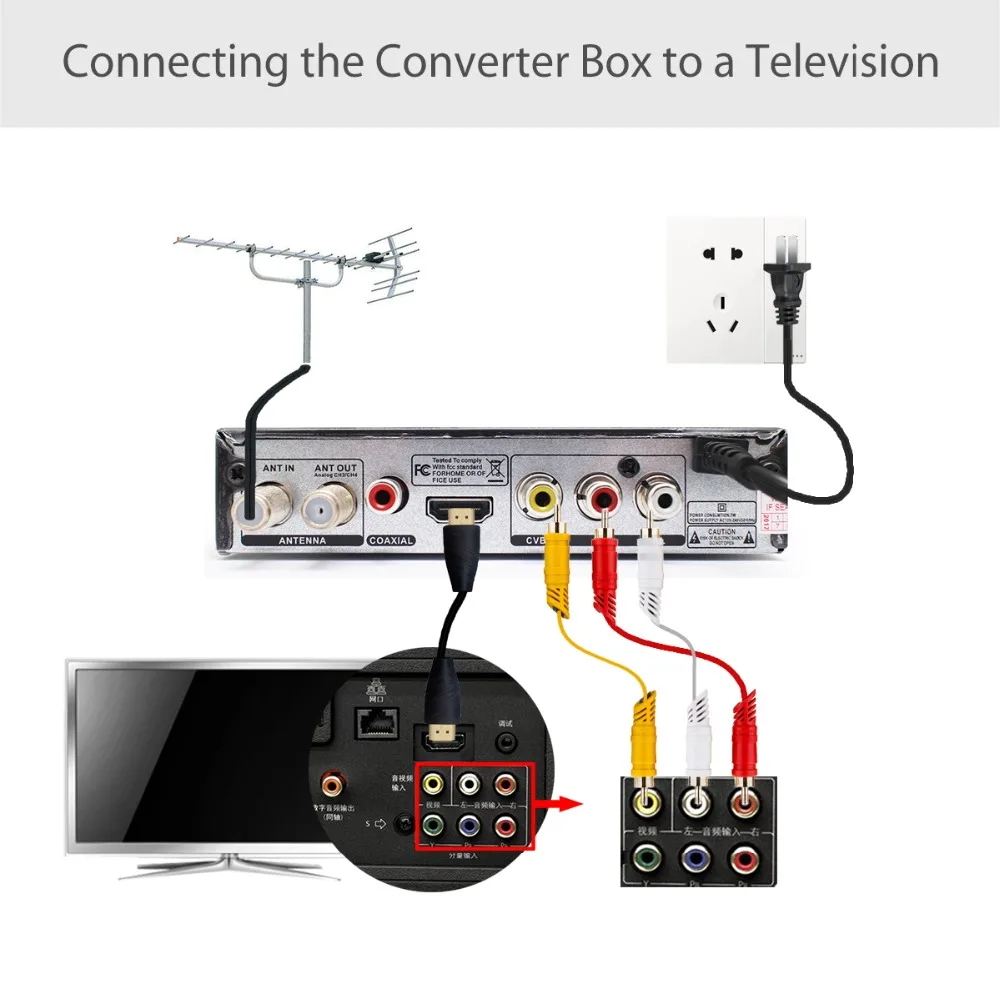

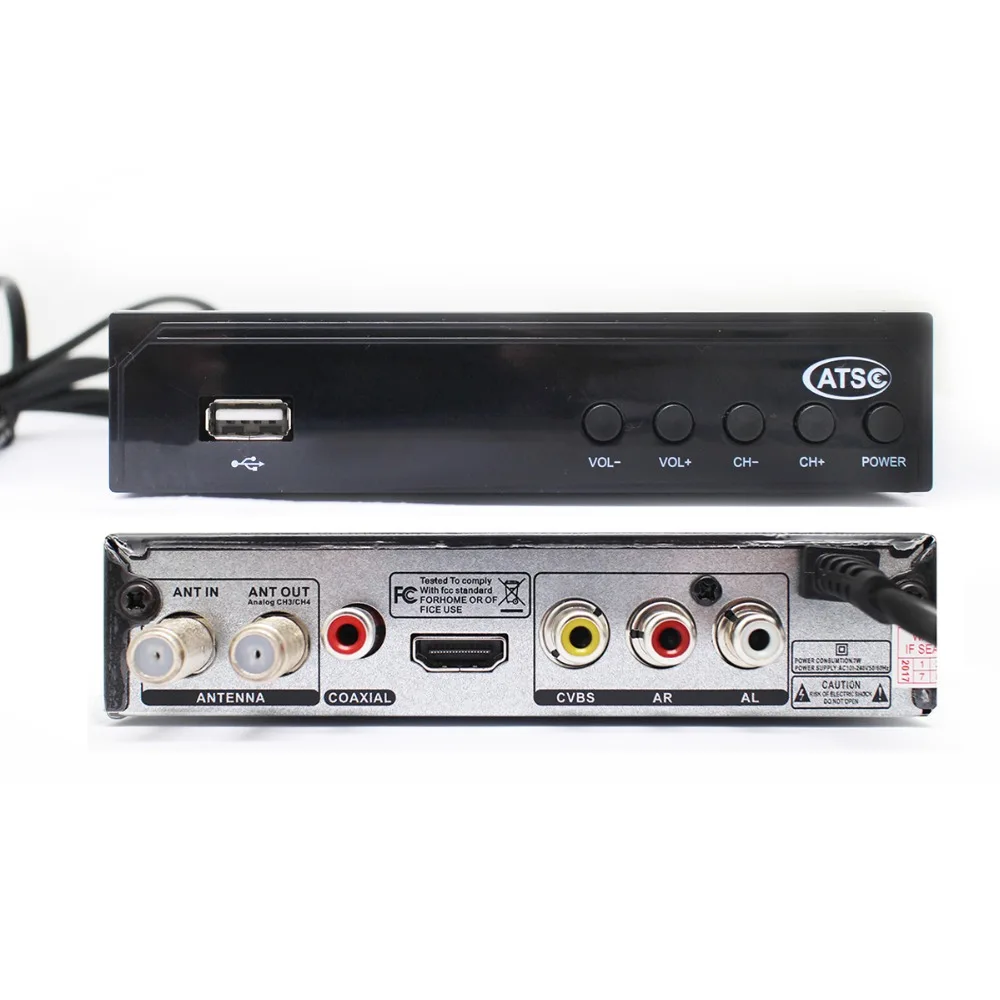

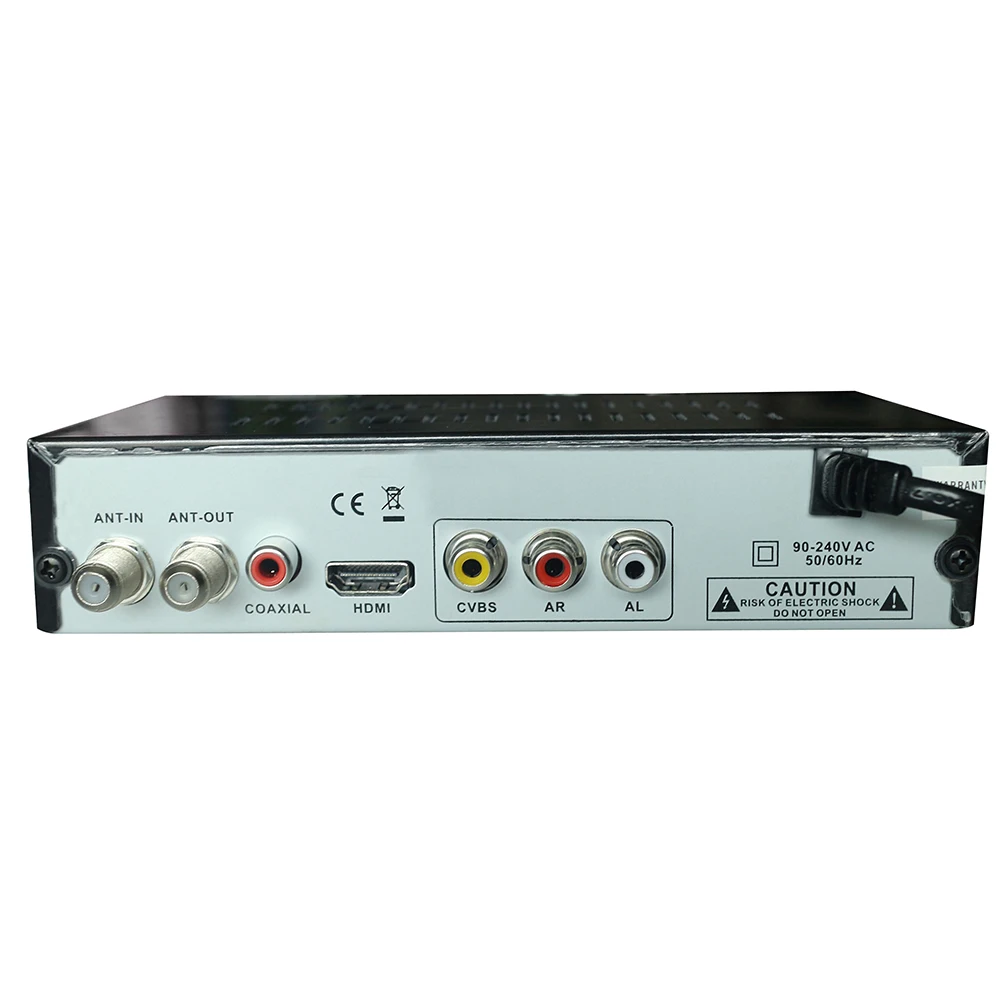

Rear Panel

• Tuner RF input connector
• Tuner RF Loop through connector
• HDMI V1.3
• AV RCA x1
• Ypbpr RCAx1
• Coaxial x1
• Power  AC100~240V  50Hz/60Hz

Demodulation

• Standard ISO/IEC 13818-1; ARIB STB-B10
• Input max. bit stream rate:
• 36Mbps (serial) / 9Mbps (parallel)
• ATSC NTIA and  8VSB Standard
• QPSK, 64QAM, 256QAM
• FEC: 1/2, 2/3, 3/4, 4/5,5/6,
• Guard Interval: 1/4,1/8,1/16,1/32,1/128
• FFT Mode: 2K, 8K, 32K
• RF input frequency: 54-803MHz
• Bandwith: 6MHz
• Input level: -83 - -5dBm

Video Decoding

• Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818
• MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)
• MPEG-2 Main Profile# Main Level(15Mbps)
• H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)

  Audio Decoding

• MPEG-1, MPEG-2 (Layer I/II),
• MP3, AC-3 (Dolby Digital), AAC-LC, WMA
• E-AC-3 (Dolby Digital Plus) decoding
• HE-AAC 5.1 multi-chhannel decoding
• MediaCode:avi. mpg, .dat, .vob,
• .div, .mov, .mkv, .jpeg, .ts etc

Sorftware Features

• USA  ATSC  8VSB /64/256 QAM digital broadcast  HD receiver
• Converts digital broadcast to your analog TV
• By remote control to choose the RF 3/4 ch output
• Sleep Timer
• Support teletext/subtitle/muti-language
• Powerful and highly effective 7-day EPG function
• AUTO, 16:9 Pillar Box, 16:9 Pan G Scan,
• 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen

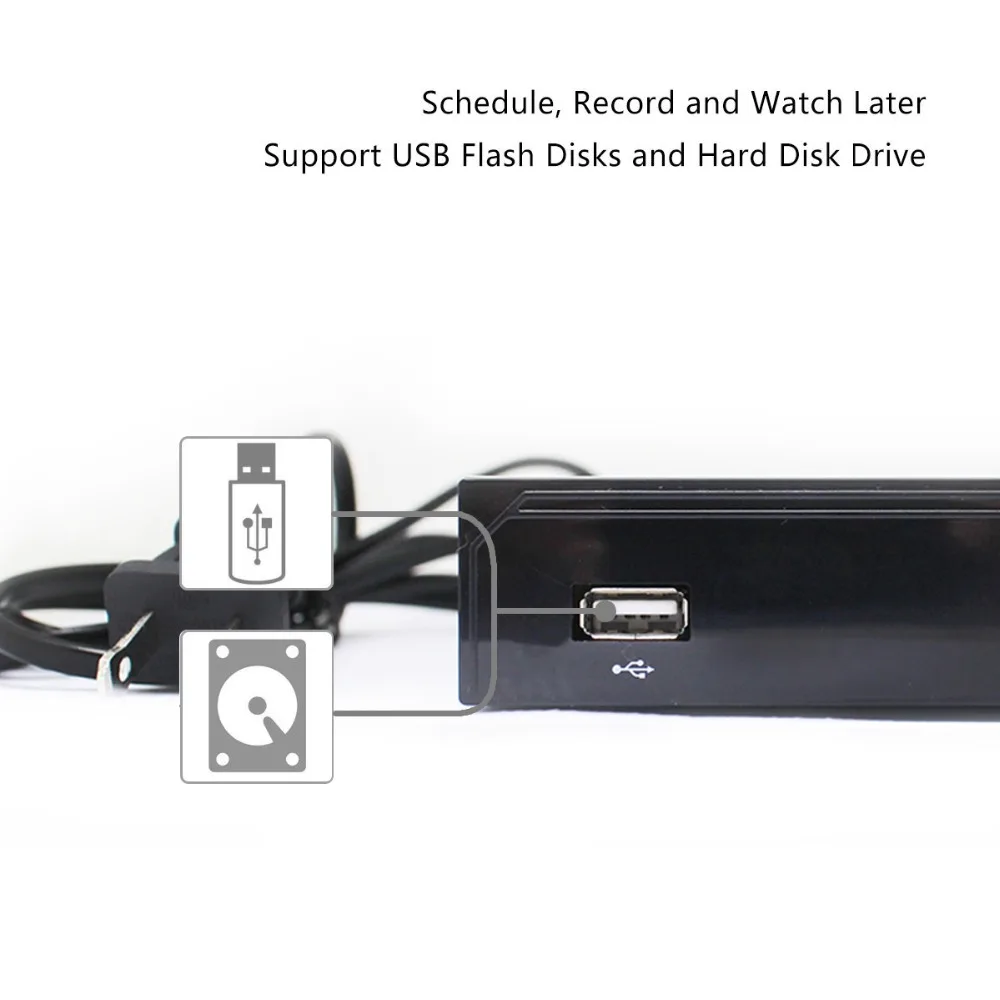

• USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback
• Video output resolution: 480i/576i/480p/576p/720p/1080i/1080

NOTE: ​

ATSC TV BOX DIGITAL CONVERTOR is a Digital Converter Box Which Converts ATSC digital broadcast to your analog TV. The built-in Media Player function allow user to play back video files via USB connection.

Support USB PVR Screen Recording when you see the channel.

ATSC TV Box Only working for    Canada Mexico Korea America Dominica Honduras Puerto Rico and Surinam    with NTIA cert.   Please NOTE IMPORTANT: While this device DOES have full QAM/Cable capability, it is NOT currently officially supported due to incompatibility issues with some cable providers.
a. If you are purchasing this device soley for QAM/Cable capability please be advised that it will work ONLY with DECRYPTED channels. It may NOT work with all Cable providers.
b. ATSC/Broadcast television is 100% guaranteed to work & is fully supported









---

---
