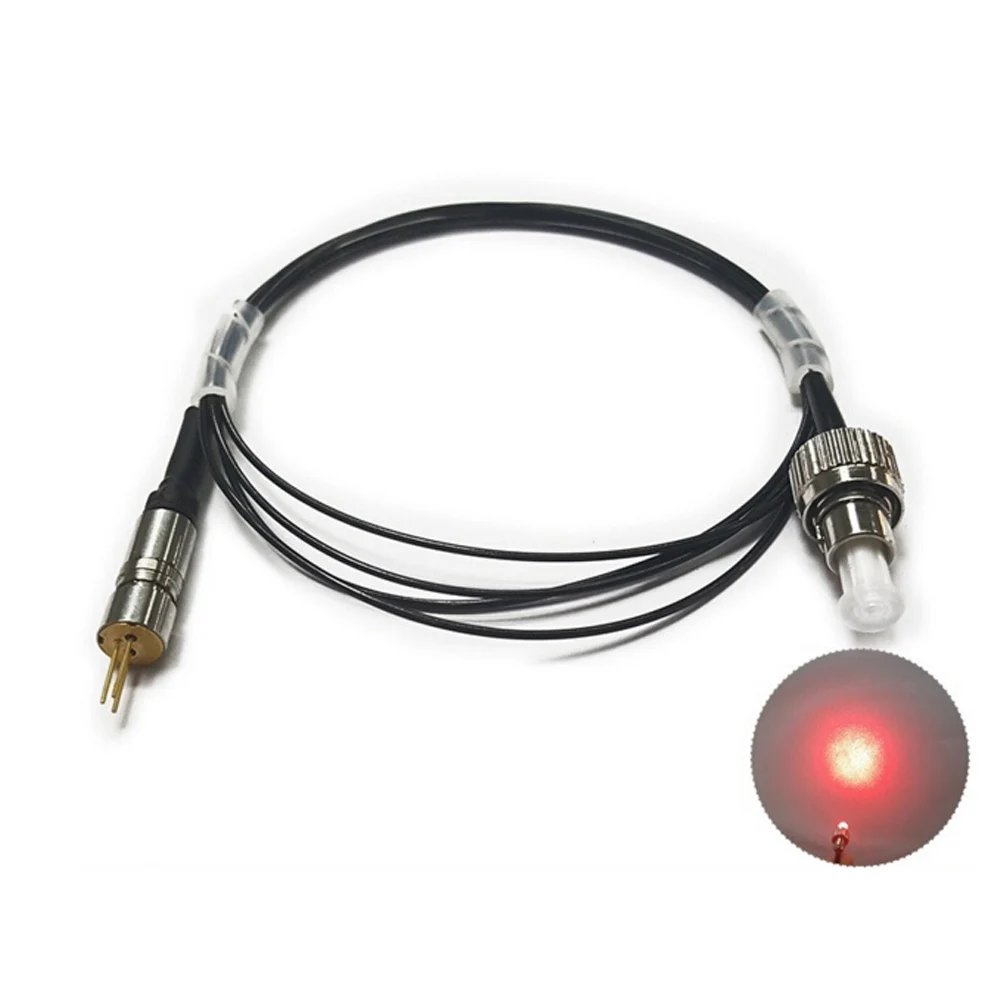

635nm5mw Semiconductor Laser Coupler Splitter Fiber Red Laser Module Lamp FC Connector Core 200um

Specifications:

Output wavelength: 635±5NM

Output power: <5MW

Size: 6*16MM

Fiber Material: Quartz

Fiber core diameter: 200 microns

Fiber length: 1 meter

Connector type: FC connector

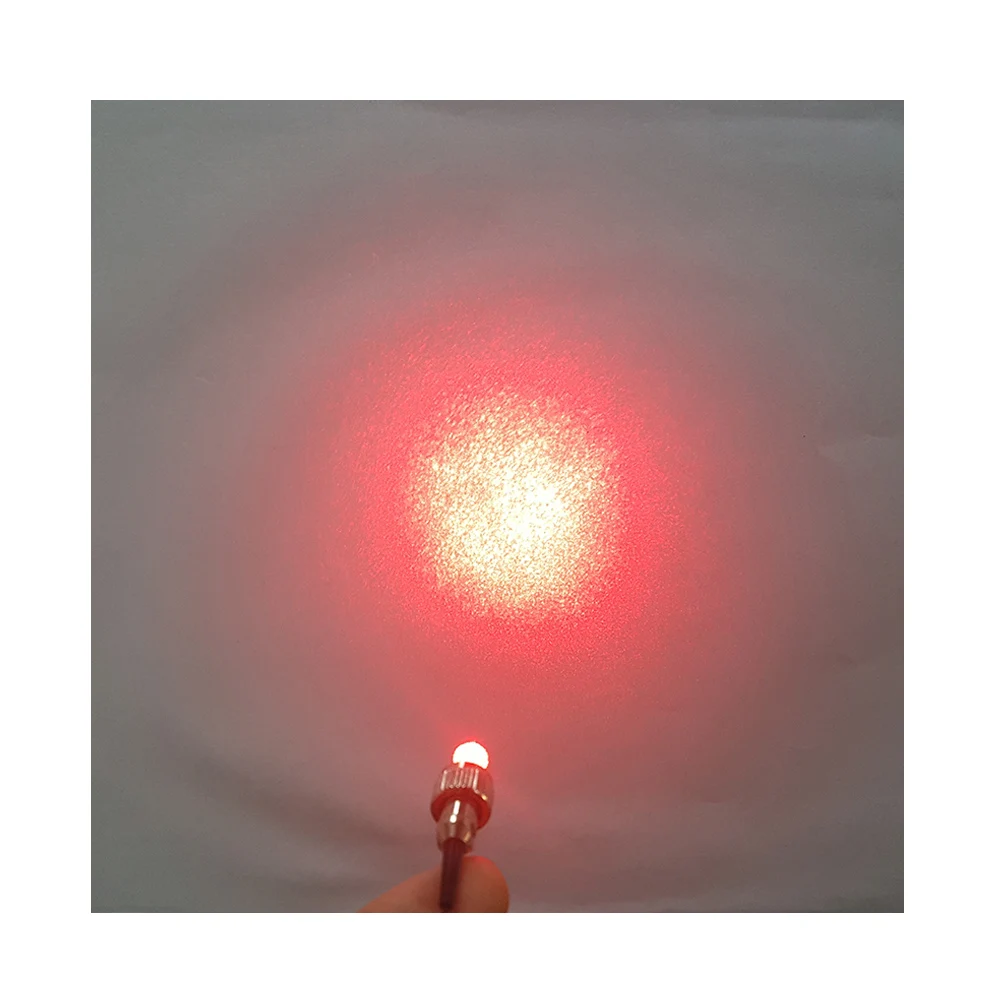

Spot shape: astigmatism

Coupling lens material: optical glass

Bare tube start up voltage: DC2.2V

Plus driver board voltage: DC3-5V

Circuit control mode: APC constant current control board

Bare tube maximum working current: <33MA

Wire: UL1571 28#150MM red and black electronic wire

Working temperature: -10 ° C ~ +40 ° C

Storage temperature: -40 ° C ~ +85 °

Buying advice:

Please determine the distance used and reserve a certain length.

The default product does not have a board. If you want to add a board, please contact us.

Prompt:

Do not bend the fiber optic cable excessively to avoid fiber breakage.

Do not place heavy objects on the fiber.

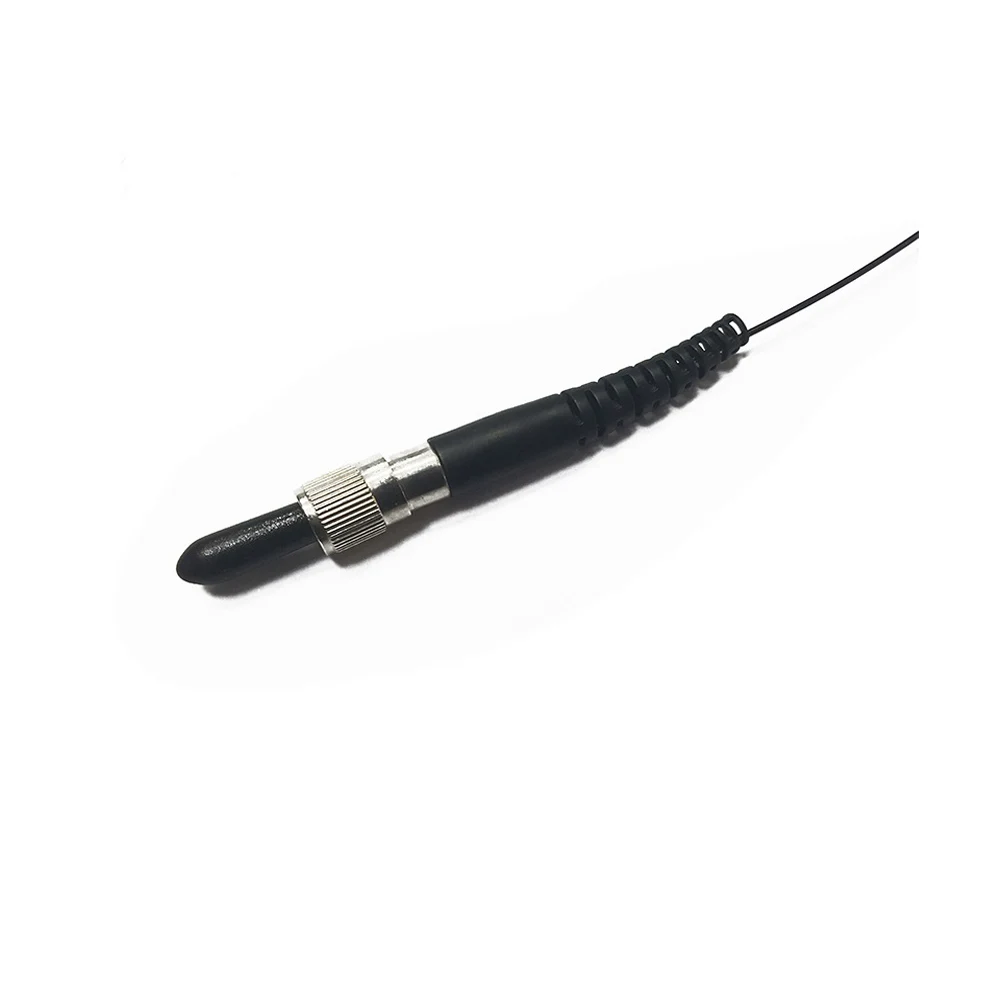

When the dust jacket is not in use, try not to remove it to prevent dust pollution.

Do not pull too much to prevent the fiber connection from coming off.

Package:

1*635nm5mw Semiconductor Laser Coupler Splitter Fiber Red Laser Module Lamp FC Connector Core 200um
