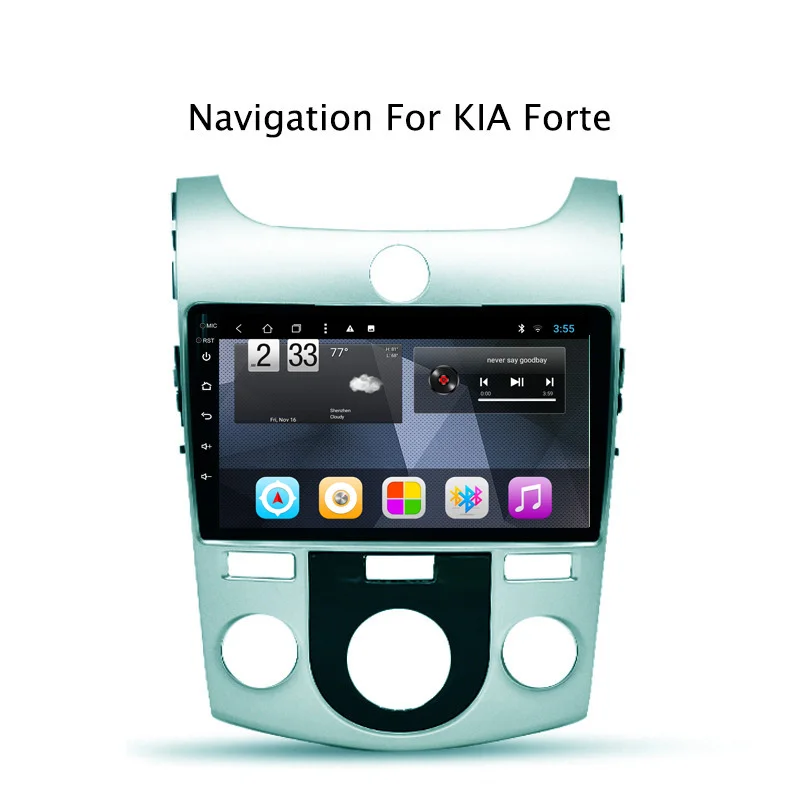

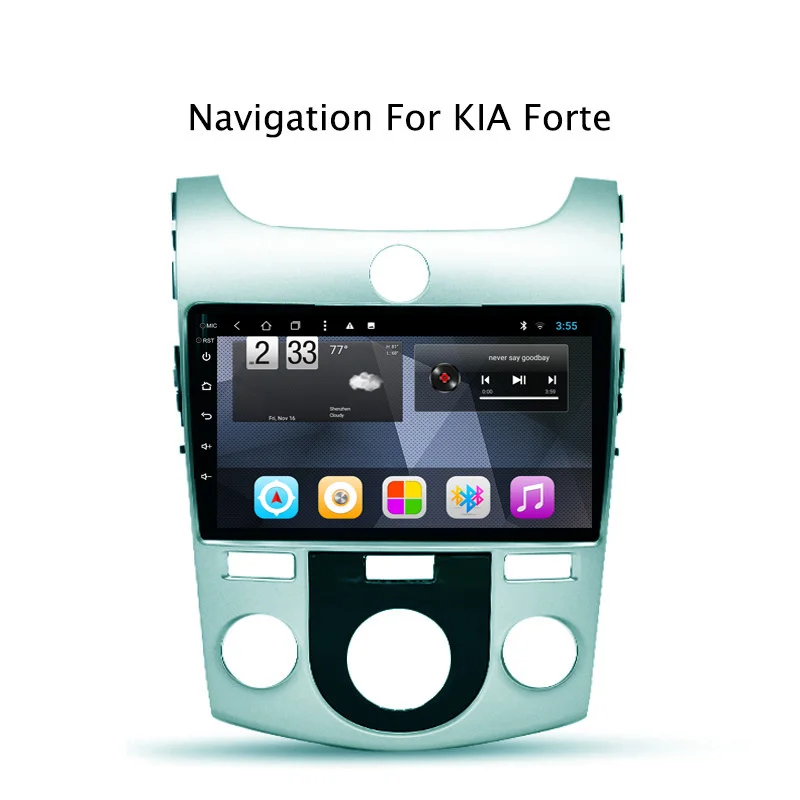

NaviTopia Octa Core Android 8.1 Car DVD GPS For Kia Forte 2009-2017 Radio Stereo with Bluetooth Wifi Mirror Link | Автомобили и

Product Information:
1. OS: Android 8.1(Octa Core)
2.Octa CoreCPU:Allwinner T8 Octa Core CoretexTM-A7 Main Frequency 2.0Ghz

3. RAM Memory : DDR3 2G
4. iNand Memory : 32GB

5. Pick Up Model : X860mc
6. MCU IC : STM8AH6189
7. Power IC model : TDA7388
8. Bluetooth Modulator : BC6
9. TV turner Model : QSD
10. Radio Turner Model : ST6856

Main System

♦.OS : Android 8.1

♦.Boot Time : Basic application boot 16s,many android application boot 25s
♦.Operation Temperature : -20°C +70°C
♦.Storage Temperature : -30°C +80°C
♦.Operation Current : Noemal 500 mA @ 4.2V
♦.Voltage Input : 4.0~4.5V
♦.Sleep Current : <15 mA

GPS

♦.Map : Stored in memory or via SD card
♦.Map Formate Support : Google map online,Sygic,Papago,3D maps,etc
♦.Navigation Software Storage : Support SD/MMC/SDHC (Max for SDHC 4GB~32GB)
♦.New Features : Suuport radio/disc/bluetooth/IPOD/for iPhone/SD playback while navigating
♦.Voice : Yes

Display
♦.Touch Screen : Capacitive touch screen
♦.Screen Resolution : 1024*600
♦.Wall Paper : Live wallpaper
♦.Drag the icon : Yes
♦.UI Interface : 3D Interface

Language
♦.Main Interface Language : English,Russian,French,German,Spanish,Italian,Arabic,etc.20 kinds of language
♦.GPS Console Language : The actual voice and display language depend on GPS software while being used

Internat
♦.3G : Support 3G WCDMA or via phone as WIFI hot spot
♦.WIFI : built-in

Application
♦.File Movement : Support copy and move files among different storage media and profiles
♦.Delete file : Yes
♦.Install Android : Application by File Yes
♦.Main functions : Support download,install and delete android apps
♦.Desktop Applications : Weather,Live wallpaper
♦.Input Method : Google,sougou,perpetual calendar,google translator and etc.
♦.Communication : MSN, Skype, Gmail, Twitter, Facebook, QQ, blogs and etc
♦.3D Games : Plants V.S.Zombies,Save the birds,Fruit Ninja and etc.

Video/Audio
♦.Video Format Support : Support full video format
♦.Audio Format Support : Support full audio format
♦.Video input : BT.656 input
♦.Video output : 24bit digital output
♦.Audio output : IIS
♦.Audio input : IIS
♦.EQ : Support pop,jazz,dance,classic,rock,normal,customized mode,treble/fade/bass/balance,loudness
♦.Max audio output : 50W x 4
♦.Signal-To-Noise Ration : >85db

TV
♦.Digital TV : DVB-T(MPEG4), ATSC, ISDB-T,CMMB and etc(optional)

FM/AM Radio
♦.AM Frequency Range : 522-1620KHz(China),522-1620KHz(Europe),530-1710KHz(America),522-1620KHz(Russian),18 stations
♦.FM Tuning Range : 87.5-108MHz(China),87.5-108MHz(Europe), 87.5-107.9MHz (America),65-108MHz(Russian),36 stations
♦.RDS : Yes

Bluetooth
♦.Support Format : HFP,A2DP,AVRCP
♦.Main Functions : Handsfree optional,phone music playback,auto swith when receiving calls,volume control,touchscreen keyboard,mute
♦.Phonebook Search : Support search by name from A-Z

Additional Features
♦.DVR(optinal) : Support independent driving record function,not effect all function of reception,such as DVD avx
♦.Video OUT Function : CPU image can used as blackground video output
♦.Parking Rearview Camera : Autoswitch in 3 seconds when parking(power off),Autio switch in o seconds when parking.(power on)
♦.Steering wheel control : 20 virtual keys setup
♦.Can control : Automotive status display(temperature,fan,belts,wipe the blade,door clsoed and etc.
♦.USB/SD card connector : USB/SD (MAX 32GB or <1500 files) usb1.0 connector,Support Samsung,blackberry,HTC,Motorala and etc.

Connection
GPS antenna input*1
RCA audio out*2(front L and R)
RCA audio out*2(rear L and R)
AUX-L in*1
AUX-R in*1
Subwoofer*1
video-in*1
video-out*1
Camera-in*1

Note:big screen full touch,without DVD/CD Slot

OBD/3G dongle/Digital TV/DVR camera/Rear camera/DAB/TMPS functions are optional,need extra buy it.
