Solar Panel Powered Waterproof LED PIR Motion Sensor Lamp Night Light Garden Decor Wall Energy Saving | Освещение

---

modname=ckeditor

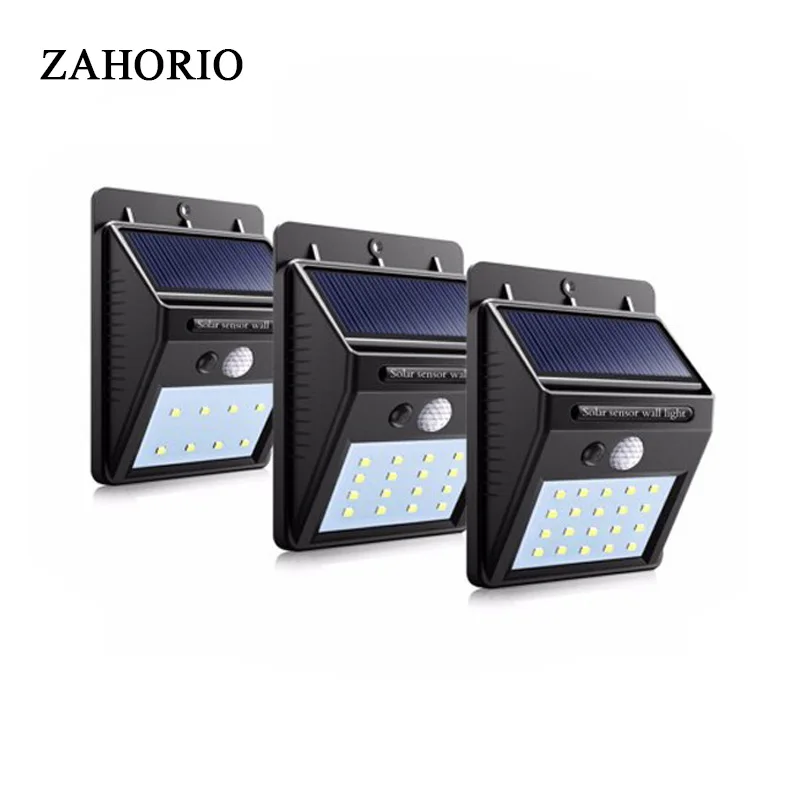

Waterproof Solar Panel Powered LED PIR Motion Sensor Lamp Night Light Garden Decor Wall Lamp Energy Saving





PARAMETER
Name	IP65 Waterproof Solar Home Motion Sensor LED Wall Light
Solar Panel	5.5V 0.55W
Battery	Li-ion battery 3.7V 1200mAh
Li-ion Battery Span Life	500 circles
LED QTY	20LEDs  16LEDs 8LEDs
Power	4W
Solar panel	0.65W, 17% efficiency
Lumens	460LM/360LM/180LM
Lighting Type	Light Control & Motion Sensor & Dim Light
Induction Distance	3m
Induction Angle	90°—120°
Temperature	-5—60
Ingress protection	IP65
Material	ABS
Color	WHITE

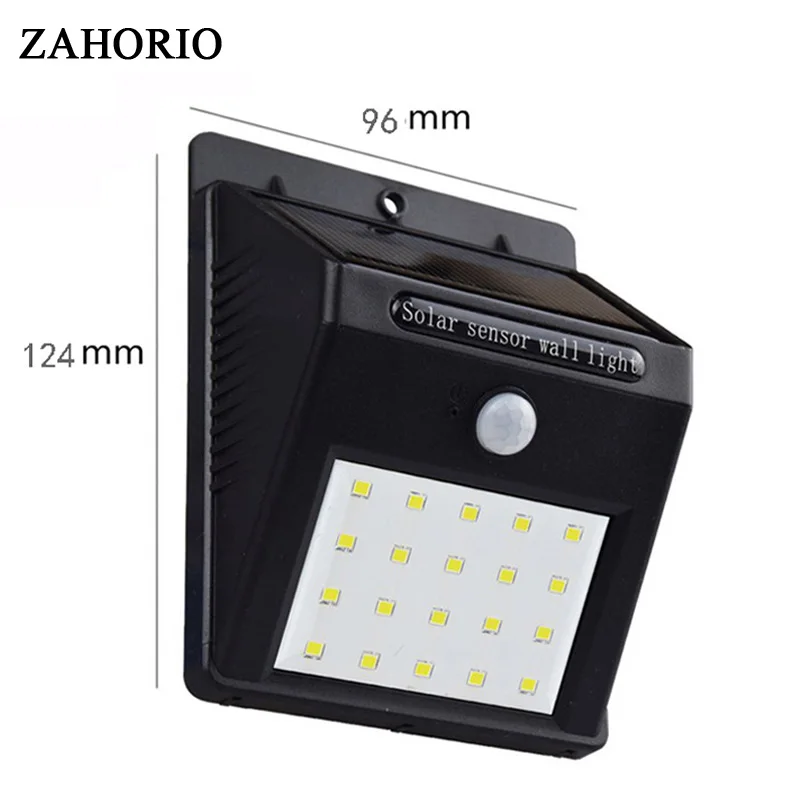

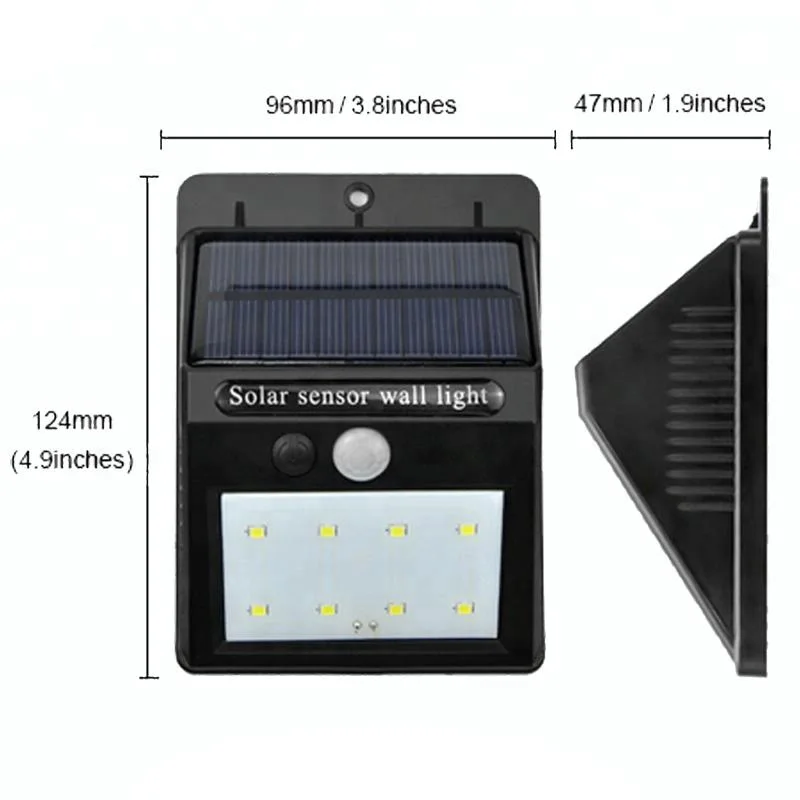

Dimension	124*96*47mm
LED Type	2835 SMD
Emitted Color	White (6000K-6500K)
Night Sensor	<10Lux
Switch	OFF/AUTO
Solar Charging Time	8 hrs
Lighting Mode	OFF/High Light
Solar Panel Span Life	more than 5 years
Delay time	10s
Protect Function	over charging, over discharging, over current, short circuit
DIM	weak lighting for saving power, High Light: motion activate for lighting



Features
Motion sensor automatically turns the light on/off
Energy saving,low power LED light
Built-in lithium battery rechargeable by solar power
Up to 12 hours of working time with a single charge light conditions


Easy installation,no wiring required

1.The light will automatically turn into dim-light state after dark
After pressing the switch, the light will be charged automatically during day time and will turn into gentle-light state at night.

2.Dim-light state
If no people and moving objects move within 5-7 meters of detection area, the light will be in the dim-light state.
3.Strong-light state
If people and moving objects move within 3-5 meters of detection area, the light will turn into strong light state instantly. After

leaving the detection area, the light will turn into gentle-light state again when the working time is up.

Operation Instructions:
1.Unlock and activate the solar light:
The battery is being locked for safety during delivery. Use the key to pin the "on/off' switch hole then the battery could be unlocked.
2.How to install the device?
Use the Expansion pillar-hinge and screw to mount the device on wall or stairs, anywhere needed.
3.Make sure the solar panel work perfectly:
Make sure the solar panel can absorb the sunshine directly when installing. Do not put it under the tree or glass or anything else.
4.Night sensor function
During night time, the light will turn on auto-induction when someone is coming within 3m.

Caution:
1.This light is solar powered;please install it in place with adequate sunlight.
2.Charging time and speed will depend on the amount of direct sunlight
3.If you plan to use the light a shaded or indoor area,please choose a battery powered motion sensor light
4.Do not disassemble the unit by yourself
*Lights turn on bright light only at the day is dark enough

Applications

This product is suitable for the corridor, corridors, gardens, gates, roof roof, garden walls and other outdoor environments.

Packing Content
 1 Motion Sensor Light
 1 × Mounting Accessories kit (include 2 screw,2Sleeve,key pin1)
 1 × User Manual

20LEDs LED Wall light

8LEDs LED Wall light

16LEDs LED Wall light





Easy to install

Two intellogent modes

Enhanced water resistance

Fully automated operation

Enery saving solar technology

Polycrystalline solar panel High PF/Waterproof, Long life time

8/16/20 bright LED lights,High brightness led chips .High brightness ,Long life time

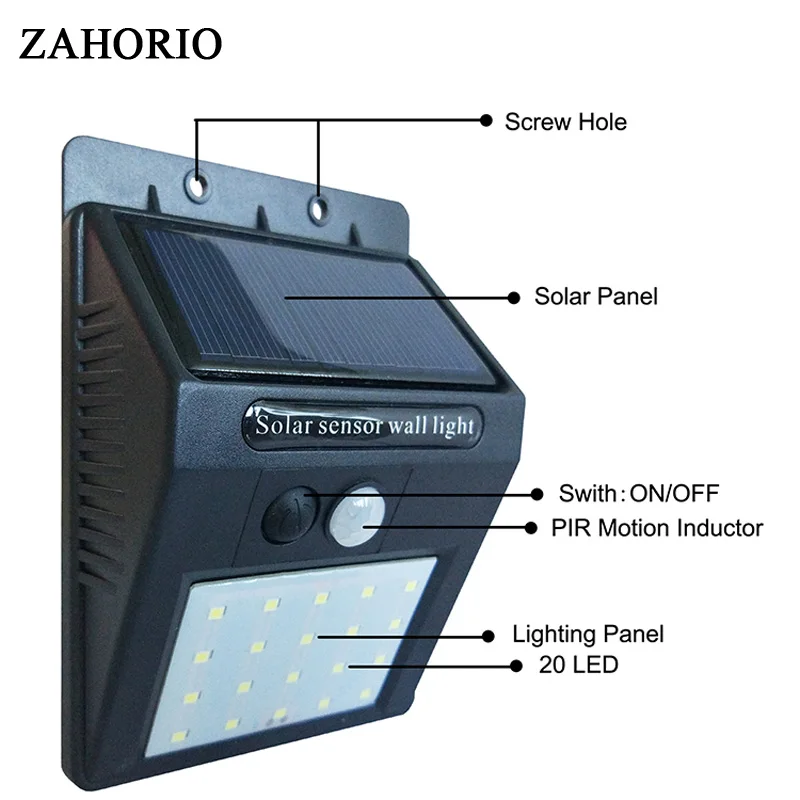

Working Principle

Expansion pillar-hinge   Screw hole    Screw  Solar panel     On/Off Switch hole    PIR Motion inductor       LED panel light



Installation Steps
