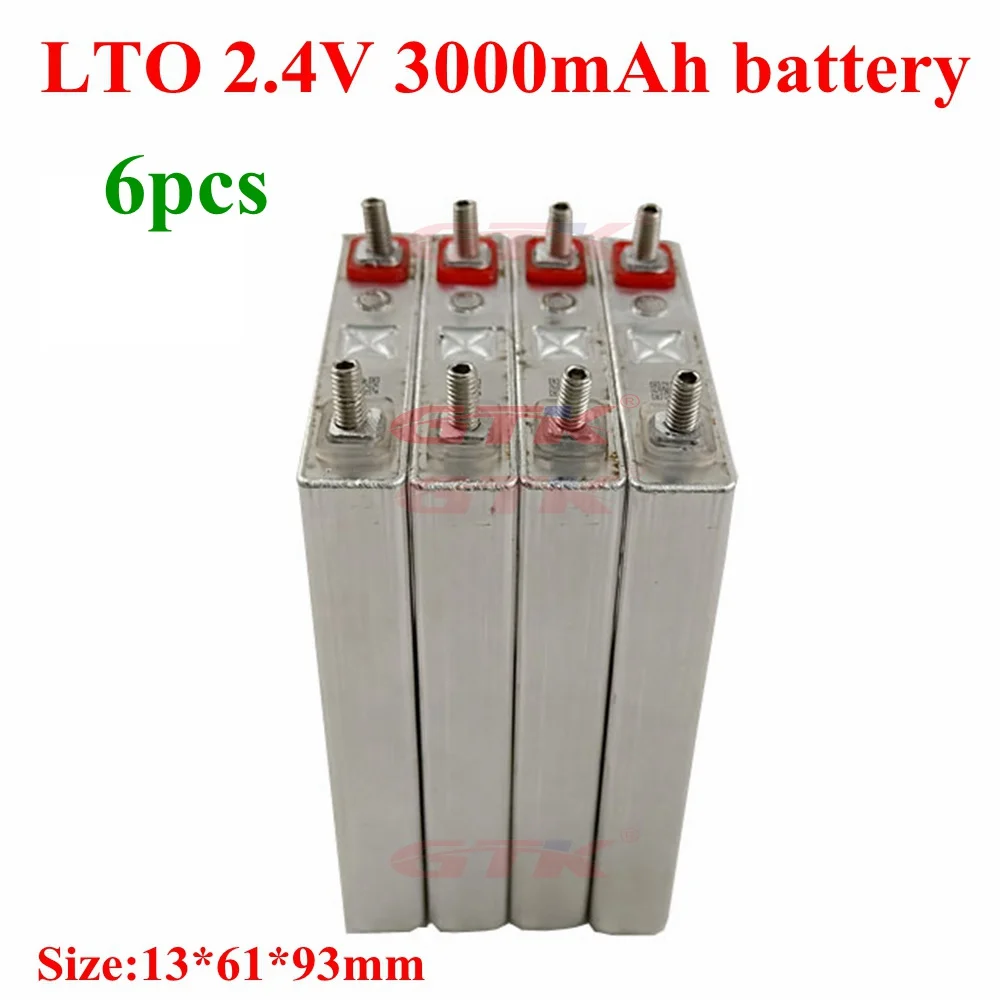

6pcs LTO 2.3v 2.4v 3Ah Lithium titanate battery cell 15C 6C for diy pack 12v power long cycle low temp fast charge burst current |

---

6 pcs LTO 2.3v 2.4v 3Ah Lithium titanate battery cell 15C 6C for diy pack 12v power long cycle low temp fast charge burst current long cycle life low temperature + Free shipping

higher energy density and lighter weight . excellent cycle life, low internal resistance, Universal model multi-use, energy-saving and environmental Friendly. No TAX , NO customs duty .We will pay shipping cost and your customs fees , you don't need to pay any fees again !!!



NOTICE : If you need BMS , please contact me .

Please make clearly the BMS nominal voltage .

BMS continuous discharge current .

BMS discharge port and charge port whether they are same port , or separated port  .





Shenzhen Sleekshine Technologies Co., Ltd  Battery Specification
Model:	C-LTO3H
Battery Type:	Lithium
Nominal Capacity:	3000mAh
Nominal Voltage:	2.4v 2.3v

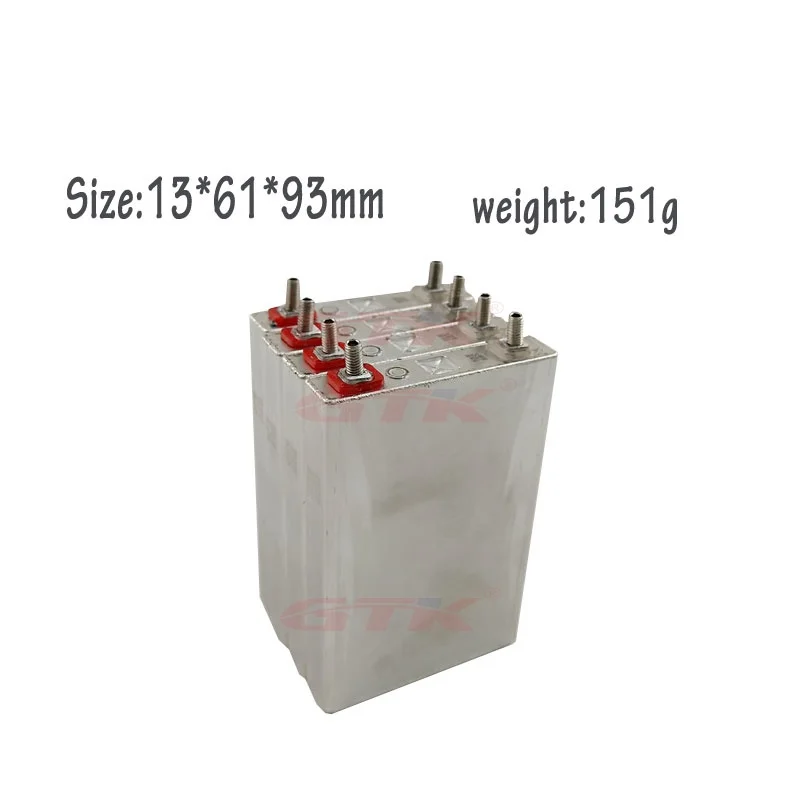

Battery Dimension:	13*64*97mm(size without screws)
Battery Weight:	About 150g
Internal Resistance:	less than 3 mohms
Cycle life:	More than 30000 times, DOD at 80%
Combination:	Can be 5s 6s 10s 12s 20s , etc
Input Charging Voltage	2.80v/cell
Input Charging Current	6C
Continuous Discharging Current	6C
Max Current Discharge	15C
Discharge cut-off Voltage	1.60v/cell
Charging Temperature:	0~45Centigrade
Discharging temperature:	-20~60Centigrade
Storage temperature:	-20~45Centigrade
Widely Applications:	Electric vehicle, Electric Bicycle, Tricycle, scooter, golf trolley, cart, wheelchairs, Medical instrument, Solar supply system,solar panel, energy storage, electric tools, power tools, instruments, LED lighting devices, RC toys, inverter, household appliances and emergent device area, etc.

Application

1) Electric vehicles and charging stations, tourist coaches, yachts, wind and solar energy storage power, traffic signals

2) Solar hybrid street lighting, UPS power supply, home storage

3) Coal, disaster relief emergency, weather radar, electricity, smart grid, communication base stations

4) Hospitals, finance, telecommunications , system critical backup power systems

Brand battery Features

1. High energy density
2.  Long cycle life
3.  Wide application
4.  High discharge rate
5. Safety: Excellent abuse tolerance and environmentally friendly
6. Life: Excellent calendar and cycle life

Characteristics of lithium titanate batteries:

High power charge and discharge capability: fast charge only takes 6 minutes. Very long cycle life: 10 times as many as traditional lithium ion batteries. Low temperature charging and discharging performance is excellent: low temperature, -30 temperature, good condition. Good safety performance. The lithium titanate negative electrode has almost no SEI film, thus avoiding overheating of the battery and causing a fire.



Note:

Those buyers who buy this battery, must agree that you are familiar with the safe use of lithium battery Knowledge. If you do not know safety use, Returns for any reason the buyer is responsible for return shipping costs. If you can not accept it. Please do not take this order! Thank you!



Discharge Curve

 Discharge Curve at 10A







---

---
