Hailong lithium ion battery 36V 20AH Electric bike Battery  pack use LG cell  for 36V 500W Electric Bicycle motor

Battery Specification

Nominal Voltage: 36V

Rated Capacity: 20AH

Cell inside: LGF1L 3400MAH 3C cells

Standard Charge Current: 2A

Max charge voltage: 42V

AC input: 110-240v,50/60HZ

BMS Continue Discharge Current: 20A

Peak Discharge Current: 70A

Fit for Motor:36V 200W 250W 300W 350W 500W

Charged Cut-off Voltage: 39V

Discharge Cut-off Voltage: 28V

Battery Net Weight: 4.1Kg

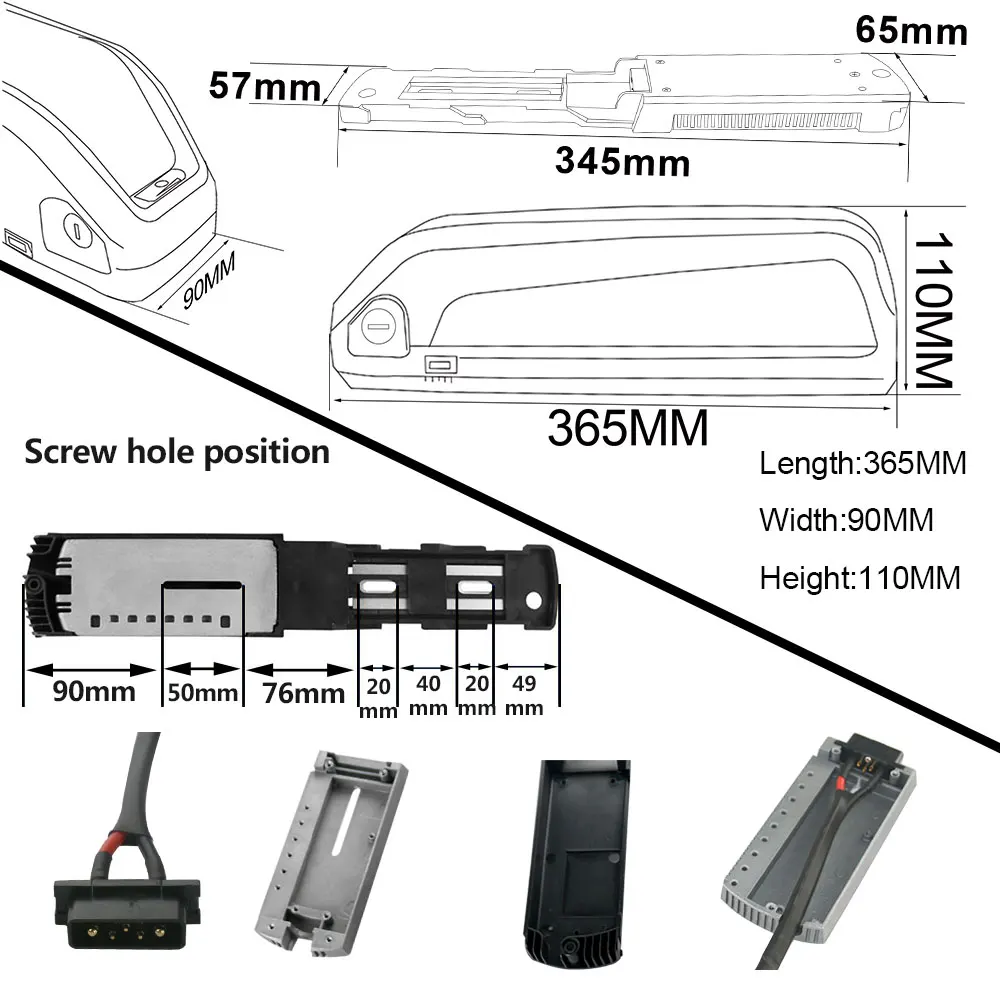

Battery Dimensions: 360*110*90mm

Charger Connector: US/EU/UK/AU AC plug and DC Connector

Operating Temperature: Charging 0℃-45℃, Discharge -20℃~65℃

Lifecycle: 800-1000 Cycles with DOD80%

Packing List

Electric bicycle batteries with US EU UK AU charger AC plug,it will be matched as delivery country if without request.
There are 7 different kinds of electric bike battery discharge connectors available for you to choose, If without request will shipping with 250mm naked cables

Battery Display

Ebike Battery Shipping

Battery is a special product, all batteries need several cycle tests before delivery, so production and
test time need about 5-7 days after confirm order;

For European Union buyers：
All parcels usually are shipped by UPS/DPD,it will air to Europe first,then to the destination countries via DPD or UPS.
The delivery time is usually 8-10 working days  (not including Sat Sun) after dispatch.

For American buyers:
All parcels usually are shipped by Fedex/UPS,it will air to the USA first,then to the destinatiocities via UPS or Fedex.
The delivery time is usually 10-12 working days after dispatch.

For Russian buyers:
We send by Special Line. And we will pay the tax fee. The delivery time is usually 18-20 working days after dispatch.

For Japan,Korea,Singapore,New Zealand Australia buyers:
We are not responsible for any customs duty/tax if occurs,
But we will declare a reasonable low value to help buyer reduce it.

Lithium battery features

1.Longer battery life, the life expectancy is two times that of lead-acid batteries.
2.Rechargeable and no memory effect.
3.The weight is more lighter.
4.Smaller dimensions and can be customized.
5.Safer and more environmentally friendly, No heavy metals and hazardous substances.
6.BMS built-in IC chip will prevent battery pack over charge, over discharge, over-current,
over-heat, short circuit .

Attention

Do not immerse the battery in water or seawater, keep the battery stands by in a cool dry surrounding.
Does not use or leave the battery near a heat source as fire or heater.
Use the battery charger specifically for that purpose when recharging.
Do not reverse the position and negative terminals.
Do not connect the battery electrodes to an electrical outlet.
Do not discard the battery in fire or a heater.
Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.
Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.
Do not strike, trample or throw the battery.
Do not directly solder the battery and pierce the battery with a nail or other sharp objects.

Guarantee

We provide 1 year warranty for all electric bike batteries.
Any battery with quality problem in one month we can return the money after you provide the proof.
After one month we can send BMS or cells to you for repair,or you can send it back to repair as well.
All our electric bicycle batteries with high quality cells and BMS, and they will be 100% tested before shipping.

Note Before Order

Our battery can fit all motor kit , but exclude these four : Bosch,SHIMANO, Yamaha ，Panasonic .

Please contact us , If you can't conifrm your motor.
If you have any problems please feel free to contact us BEFORE you leave negative feedback or file a case.

Any problem is not a problem, as long as you contact us.

Your satisfaction and positive feedback is very important to us.
Please leave positivefeedback and 5 stars if you are satisfied with our items and services.



---

---
