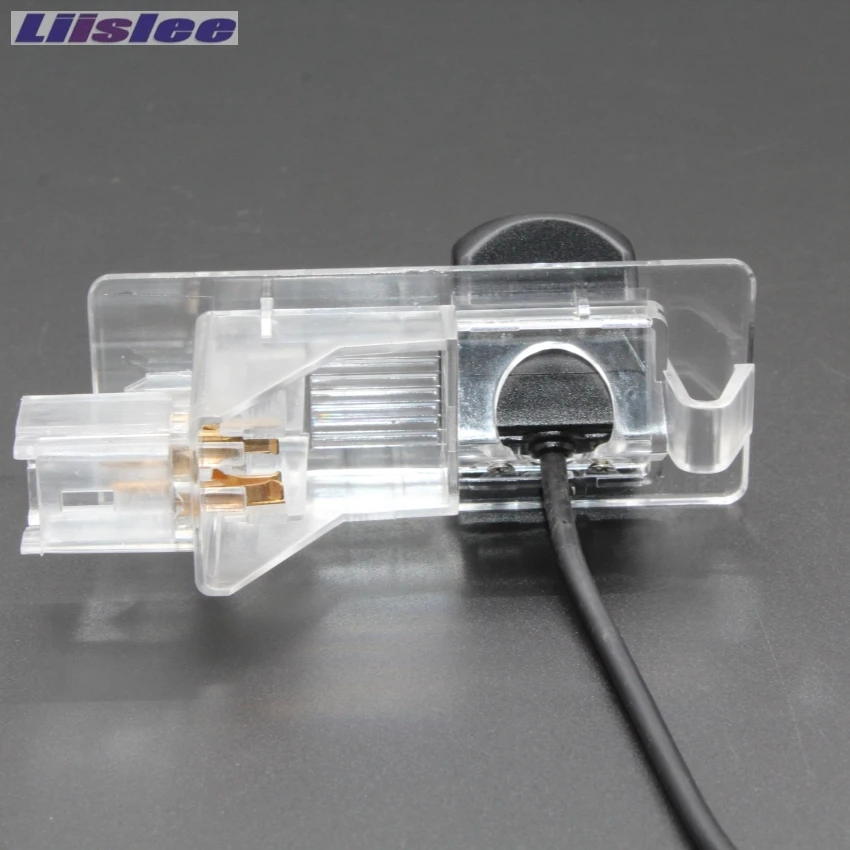

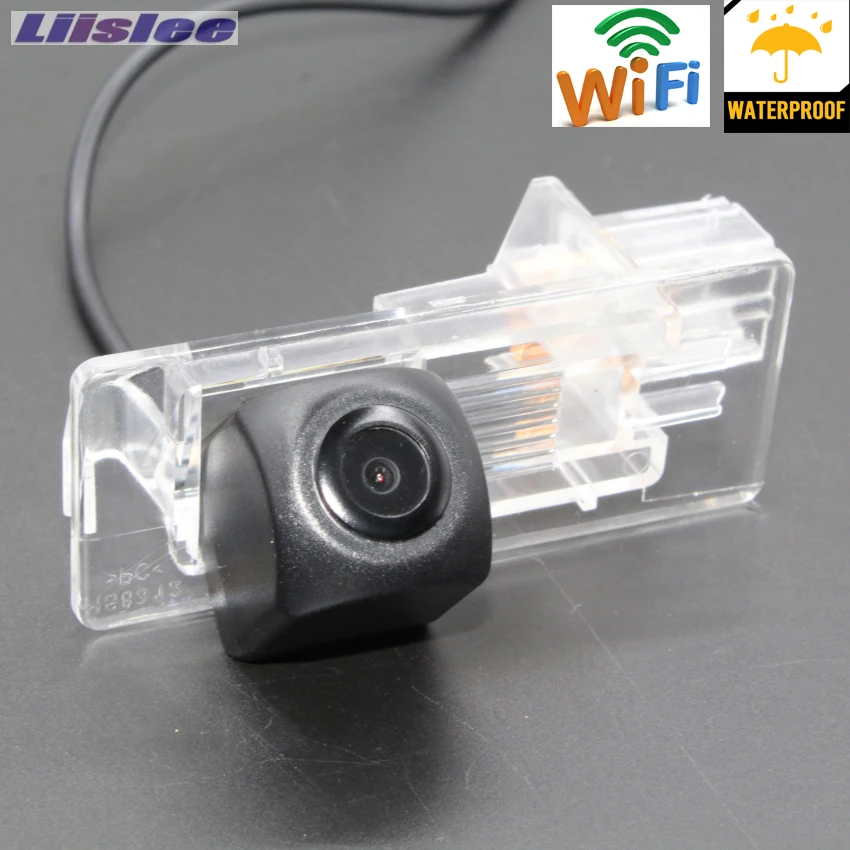

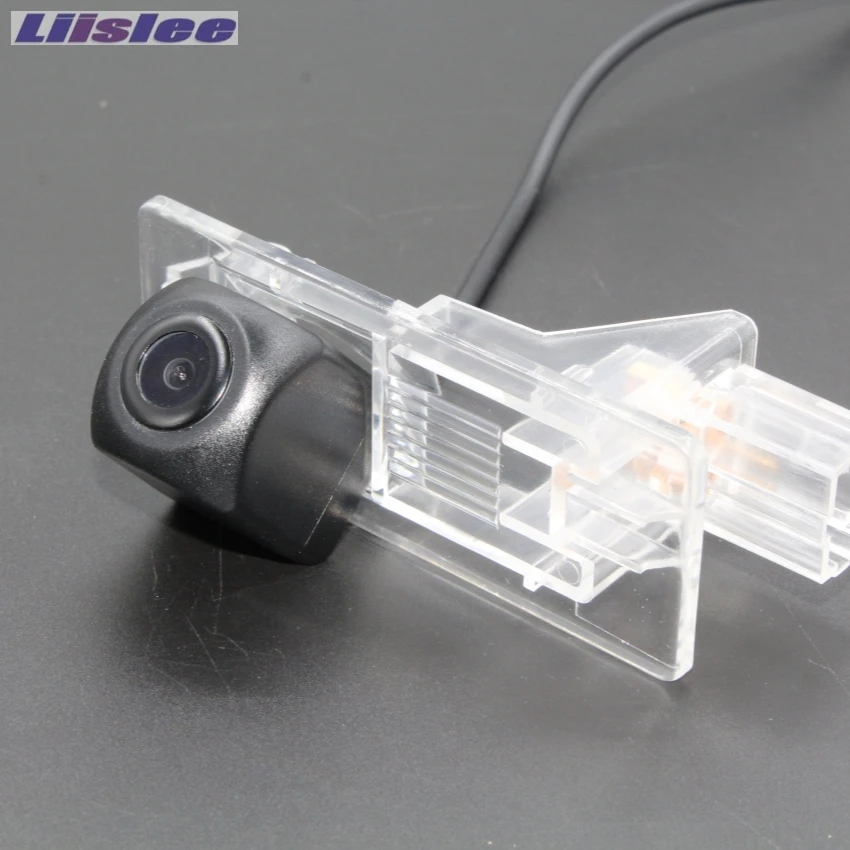

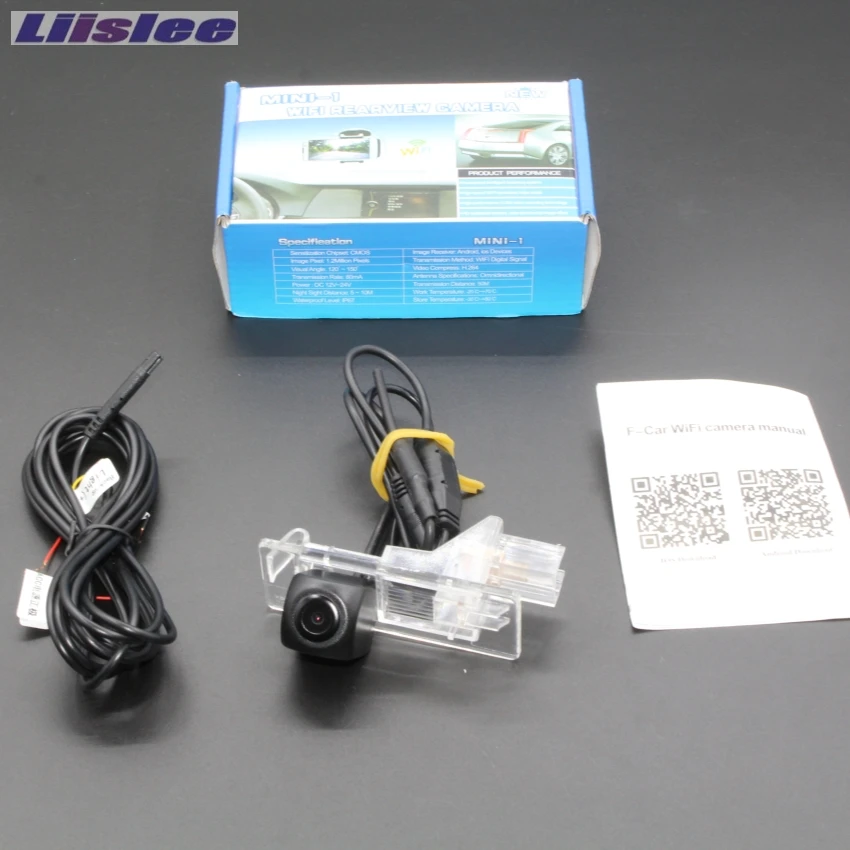

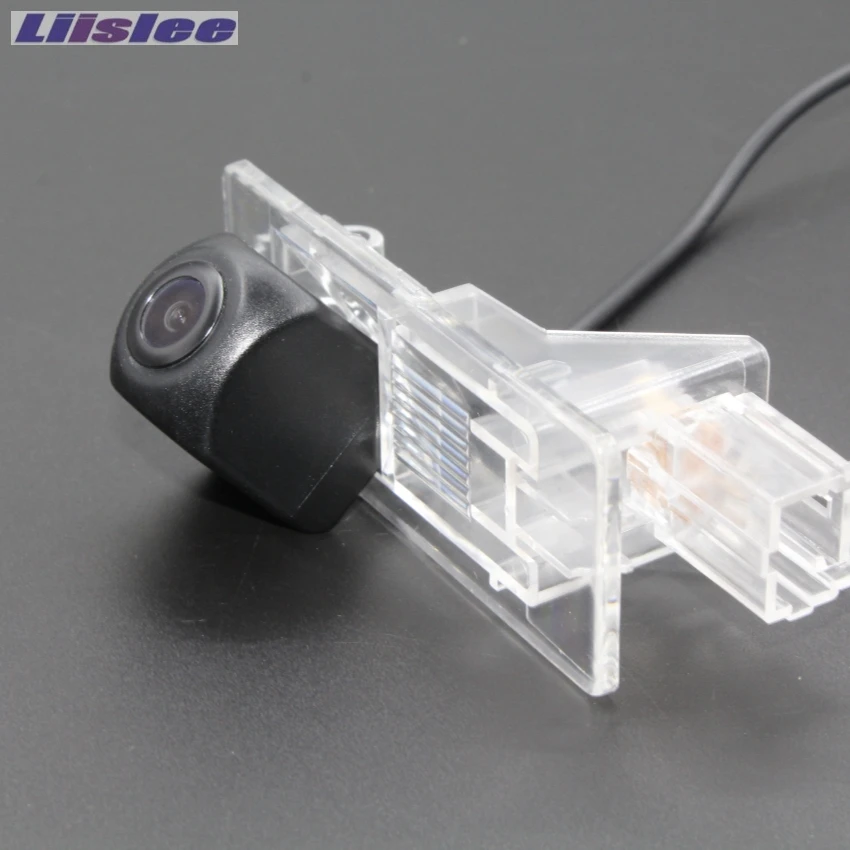

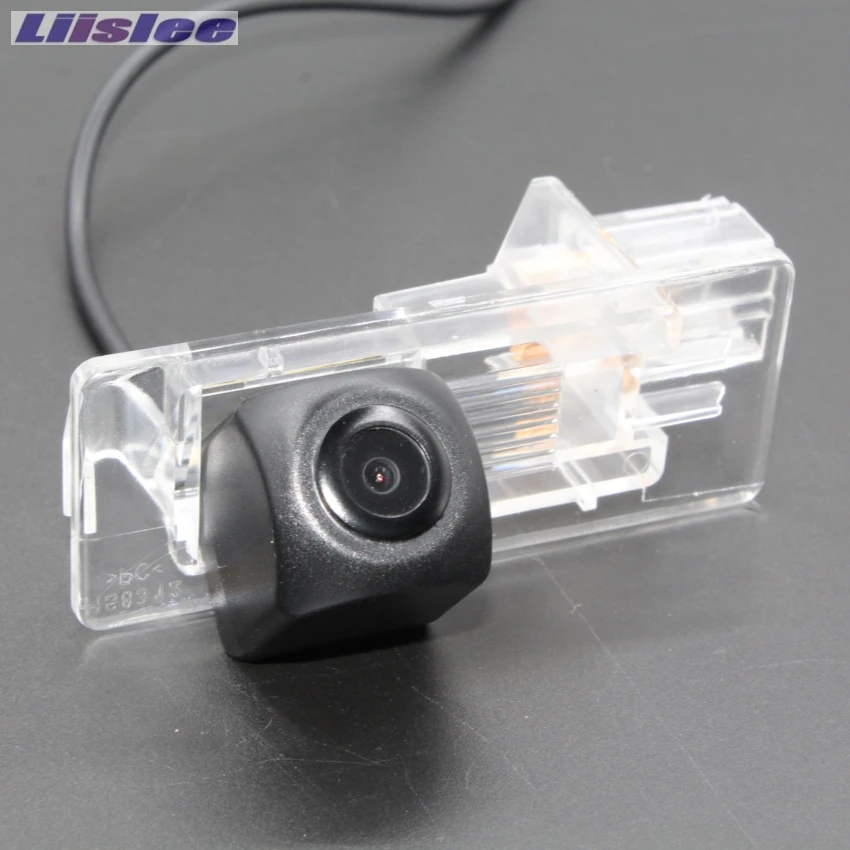

LiisLee wireless rear view camera for Renault Latitude Samsung SM5 2010~2018 car hd CCD Night Vision Backup | Автомобили и

 1, First off the car power supply, the camera is not connected to the power cord is not allowed to power on.

 2, To determine the installation location of the car camera.

 (1)Remove the plastic back case, find the exact location of the three power cord can be installed;

 ● Reversing light positive (yellow power cord), please connect the reversing lamp positive power cord.

 ● ACC positive power supply (red power cable), please pick up the ACC wiring position.

 ● Negative grounding (black power cord), please take the car on the negative wiring (2) install the camera, remove the license plate lights, the camera through the license plate light gap connected to the host. Pick up the exact location of the three power cord, start the vehicle, adjust the best reversing perspective, with a screw to fix the camera, and finally with cable ties can be fixed.

Software download.

● QR code scanning and downloading; open the scanning window and scan the product packaging code.

● Website download: Apple devices enter APP Srore interface search; V-Car download

Android device into Tencent application treasure interface search; VCar download

NOTE:

1. Device WIFI must be turned on, reversing rear view image can be displayed normally.

2. The housing of the main unit must be firm and secure. There are four holes in the four sides of the box, which should be firmly fixed with cable ties or ropes.

3. Antenna to be installed to avoid contact with the metal. 4 camera first plugged into the host after power, can have an image display.

Wireless connection reversing camera, eliminating wiring troubles

Working voltage 12V

Image Sensor 1/4 inch CMOS PC7070
Lens materials 100% Glass
Horizontal resolutions 480TV lines
Field View Angle 150deg (Diagonal),
Night Vision Support
Parking Guide Line Support
Guide Line Switch NO
ImageType Mirror image
Mirror/Original Switch NO
TV System NTSC
Video Output CVBS RCA connector(1.0VP-P,70OHM)
Minimum illumnation 0.01 Lux/F=1.2(0 Lux with IR on)
Power supply DC12V ~24V
Power consumption 120mA
Operating temperature -20C~75C,RH 95% MAX
Storage temperature -40C~80C,RH 95% MAX
Waterproof rate IP67

Wireless Video show in Iphone/Android phone
