QIALAN 10m MTP MPO Patch Cable OM4 Female to 6 LC UPC Duplex 12 Fibers cord cores Jumper Breakout |

---

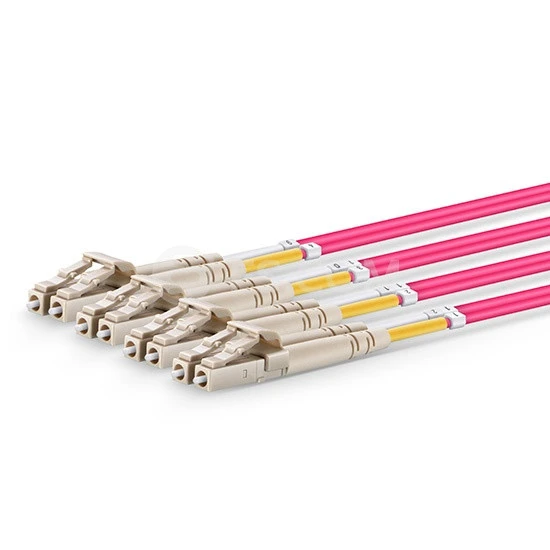

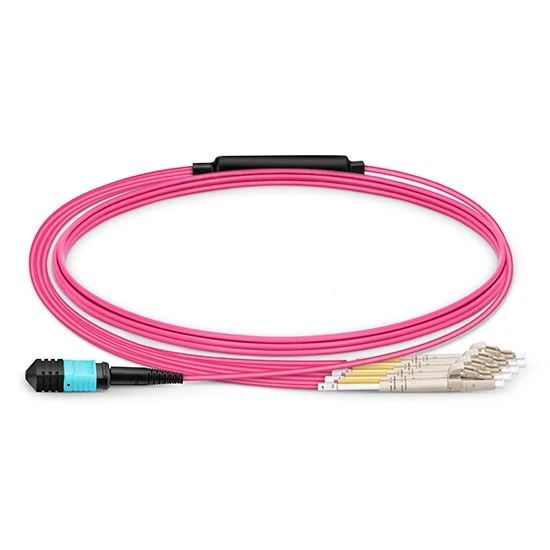

MPO Female to LC UPC Duplex OM4 (OM3) Multimode Harness Cable

MPO Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With Senko MPO connectors and Corning Clearcurve fiber, it is optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics direct connection and high-density data center applications.
Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.     Product Specifications

Connector A	MPO Female (pinless)	40/100G Ethernet Distance	150m at 850nmx
Connector B	LC UPC Duple	10G Ethernet Distance	400m at 850nm
Fiber Mode	OM4 (OM3) 50/125μm	Wavelength	850/1300nm
Glass Fiber	Corning ClearCurve®	RoHS Compliancy Status	Compliant
MPO Connector IL	0.35dB Max(0.15dB Typ.)	LC Connector IL	≤0.2dB
MPO Connector RL	≥20dB	LC Connector RL	≥20dB
Attenuation at 850nm	≤2.3dB/km	Attenuation at 1300nm	≤0.6dB/km
Jacket OD	3.0mm	Fan-Out Diameter	2.0mm
Installation Tensile Load	100 N	Long-Term Tensile Load	50 N
Cable Jacket	LSZH	Fiber Count	8 Fibers
Operating Temperature	-10°C to +70°C	Storage Temperature	-40°C to +85°C



.



Quality Assurance Certification

Quality and standards are the foundation of QIALN. We are dedicated to providing customers with the outstanding, standards-compliant products and services.

QIALAN has passed many quality system verifications, like Anatel CE and RoHS, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.





---

---
