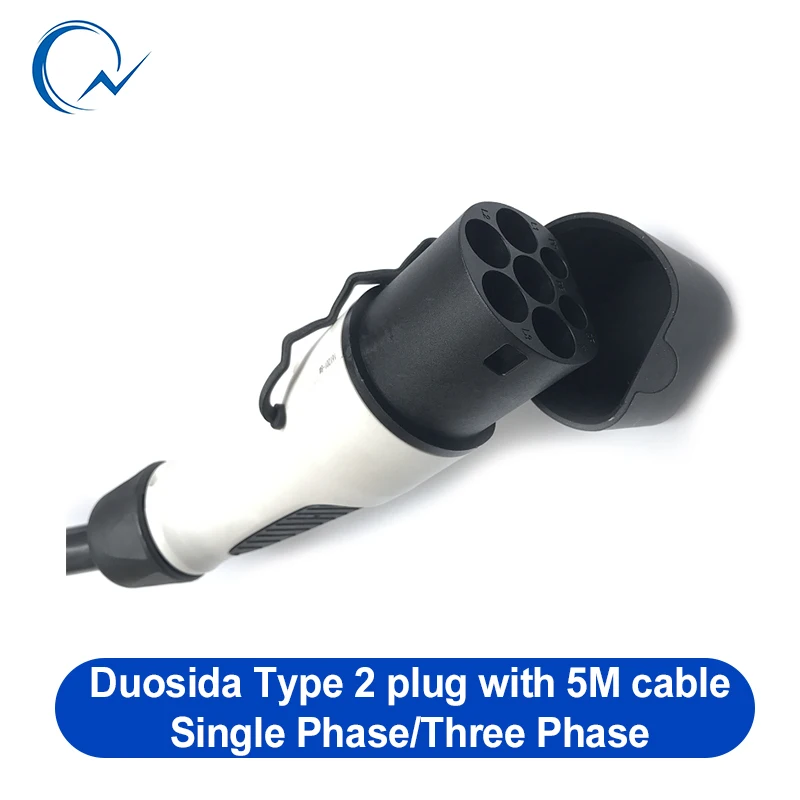

Duosida 32A IEC62196-2 Type 2 Plug Power Supply Side with 5M Cable European Standard IEC 5 pin 7 TUV | Автомобили и мотоциклы

---

we can customized the length of the cable, please contact us if 1 meter cable doesn't meet your need.

62196-2 European standard 32A plug,power supply side with 1m seven-pin/five-pin TUV cable

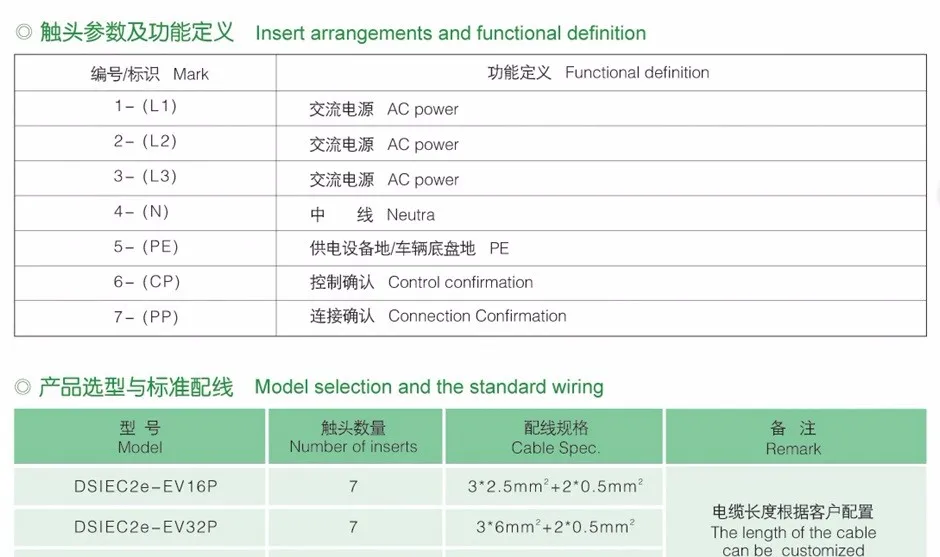

the cable specification:5*6+2*0.5

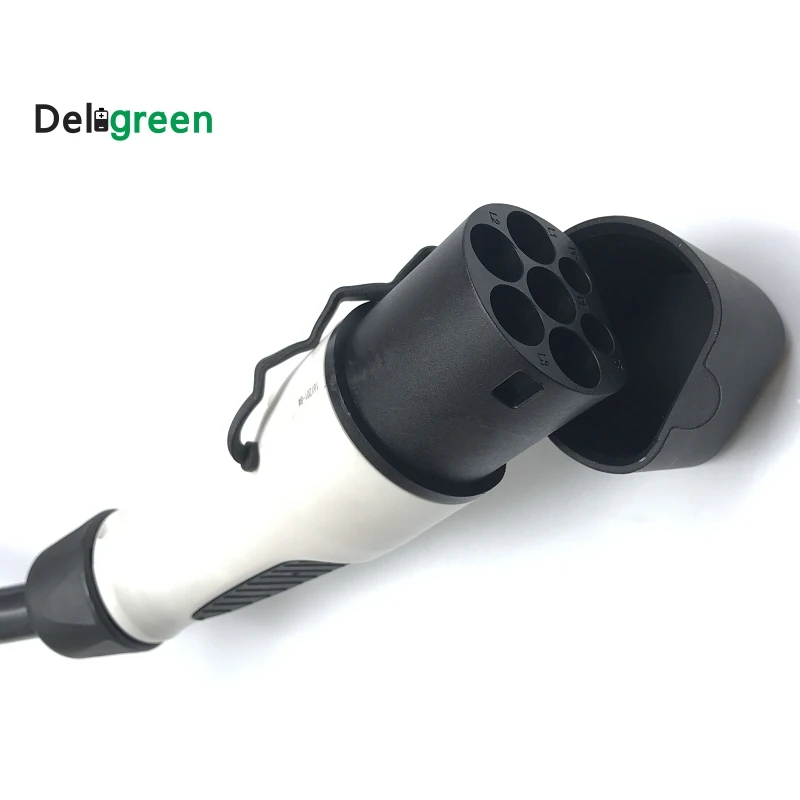

this plug is on power supply side(charging station side)

there is a plug for EV side .please make sure you order the right item you need.

Specifications

Have good electrical properties EV Charging pil
European Standard EV /CAR AC charger plug & socket
Used for pile end for car

Have good electrical properties
High water levels:Disconnected IP 54;Charge state IP 65

electrical connector

European Standard EV /CAR AC charger plug & socket

Used for pile end for charging
Rated current :32A
Voltage 250V

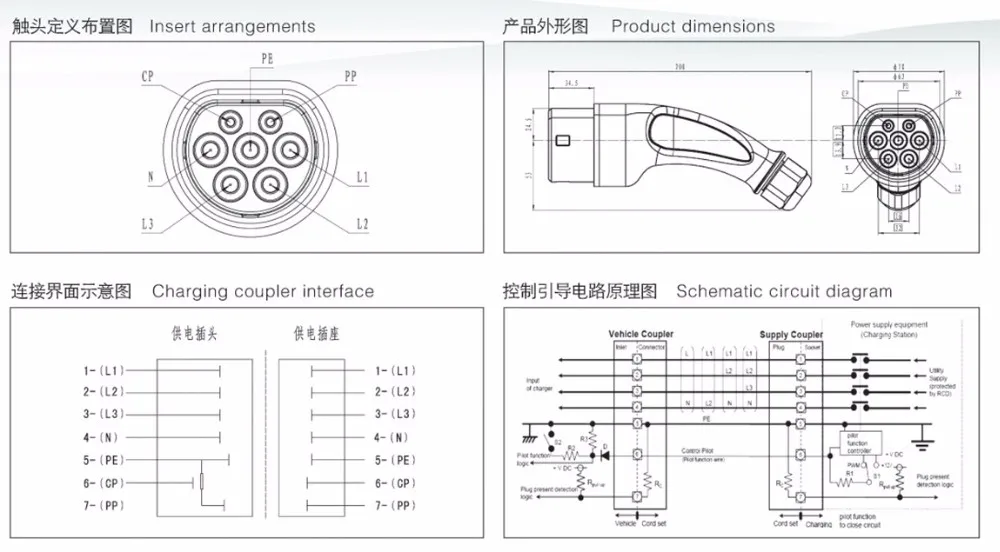

Adapt socket  type :IEC 62196-2

DSIEC 2e/f-EV16/32/63 P & S

 Used for pile end for charging

1.Meet the '' electric vehine conductive charging connection device '' 20110530Technical standards and requirements

2. Nice shape ,Hand-held ergonomic design ,Easy to use

3. Safty design to prevent users from personal injury

4.Protectionclass : IP 55 ( IN mated condition )

5. Reliability of materials ,antiflaming , environmental protection, abrasion,resistance ,impact resistance ,oil resistance and Anti -NV

Materials :

Shell Material: Thermo plastic  ( Insulator Inflamnability UL 94 V0)

Contact pin: Copper alloy .silver or nickel plating

Sealing gasket : rubber or silicon rubber



Environment Performance

Operating temperature : -30degree  to 50 degree

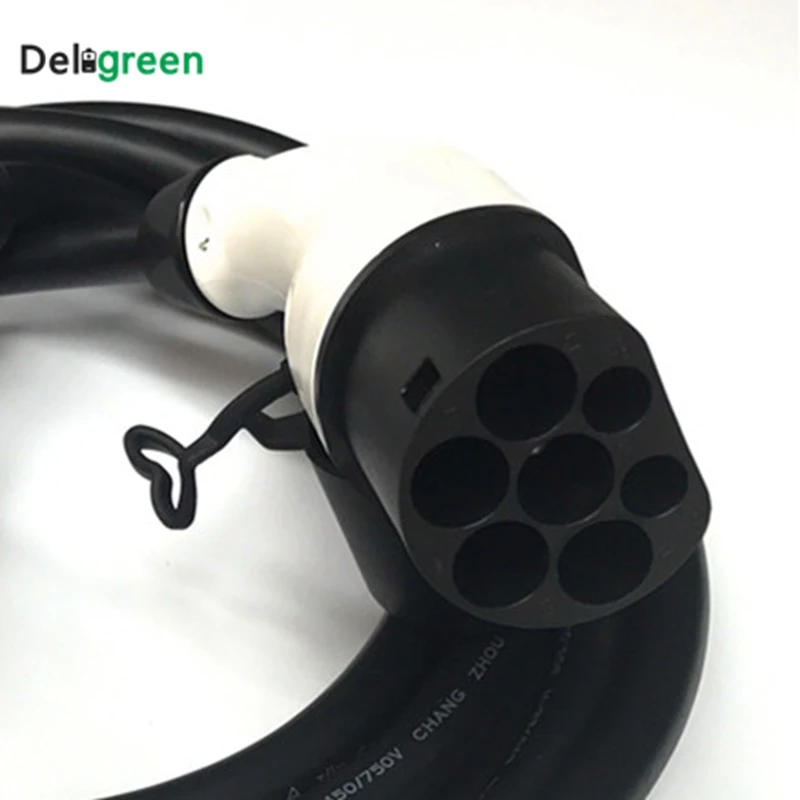

1pcs of 62196-2  PLUG 32A power supply side with 1M 7-PIN Three phase  cable

*







---

---
