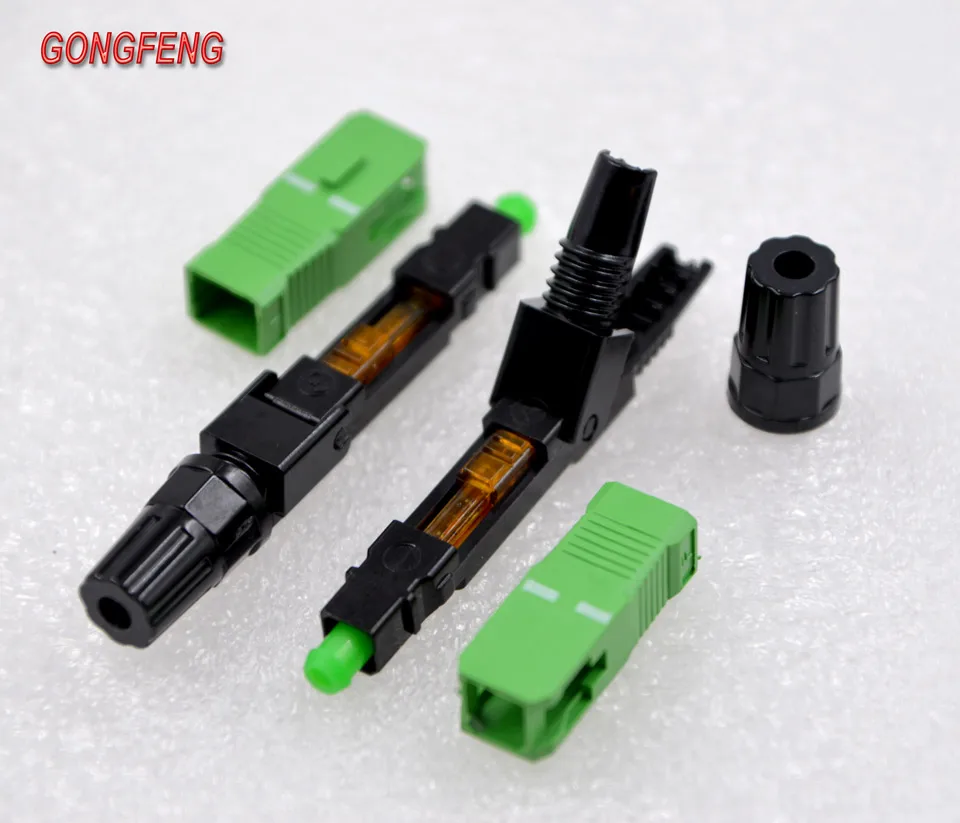

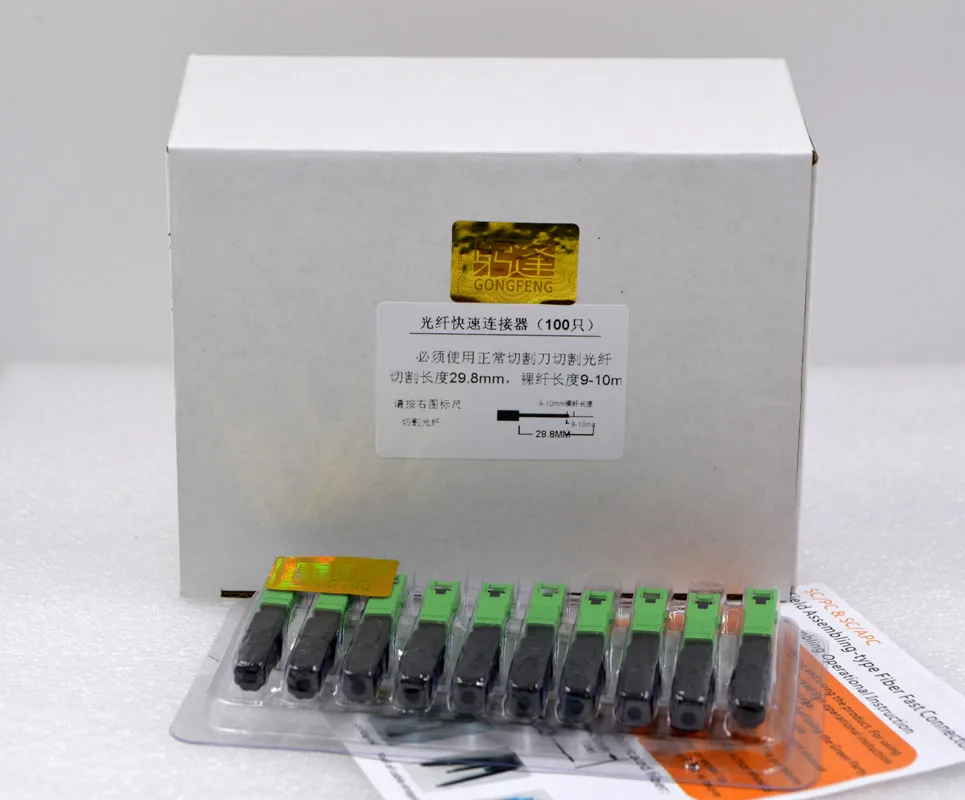

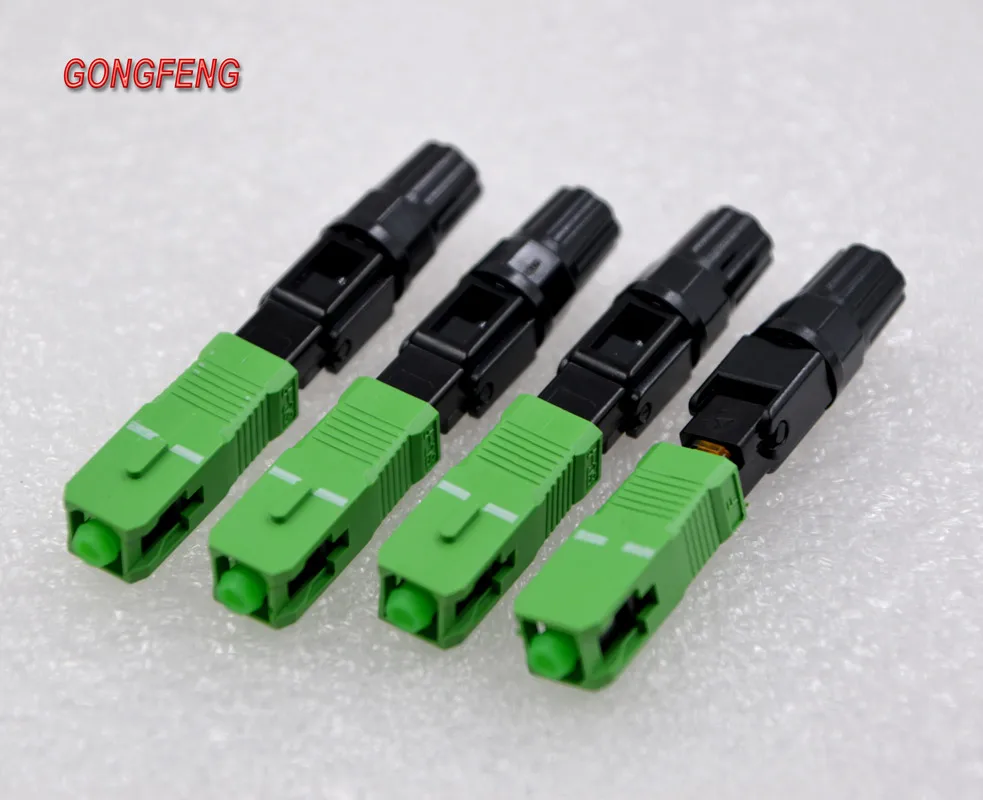

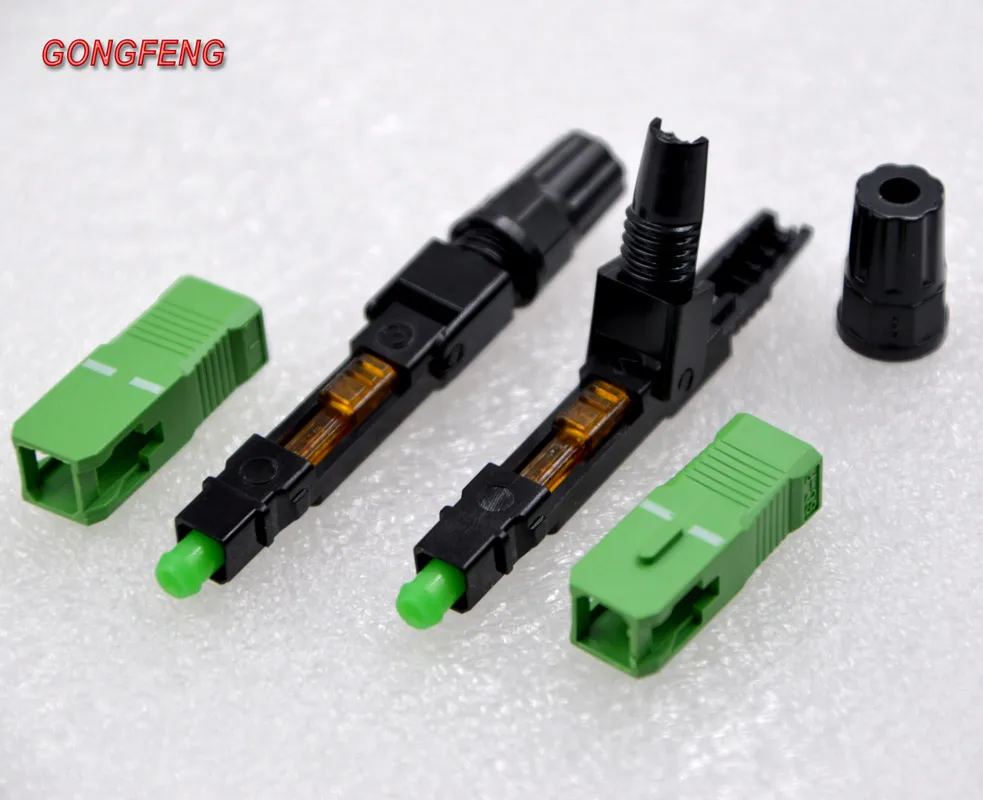

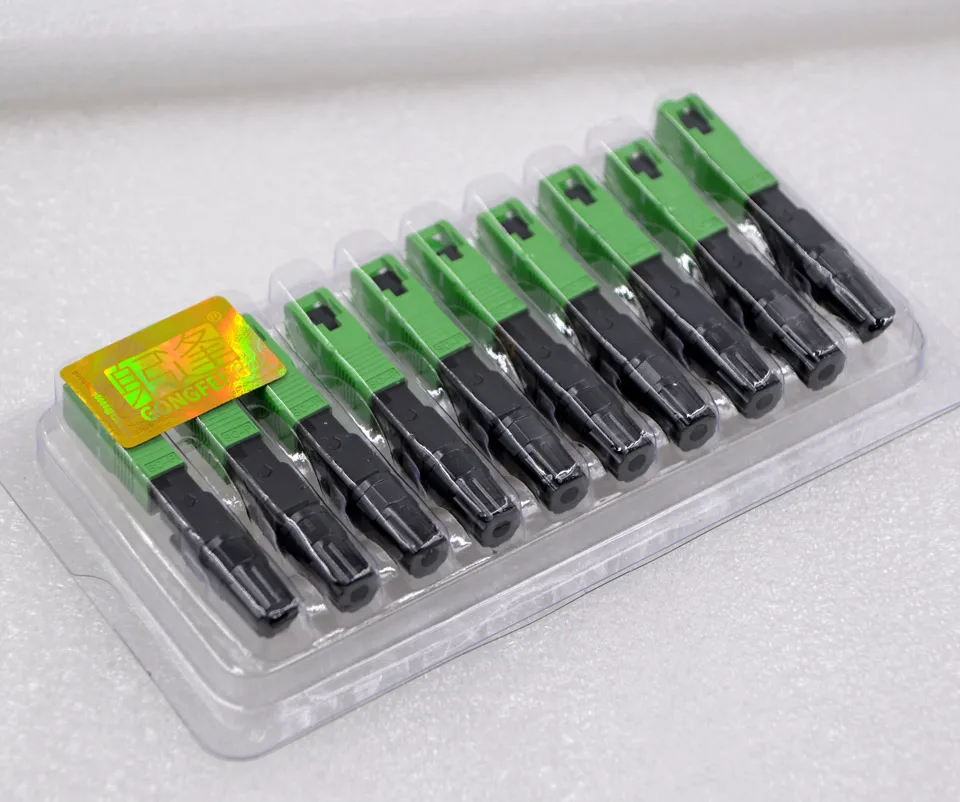

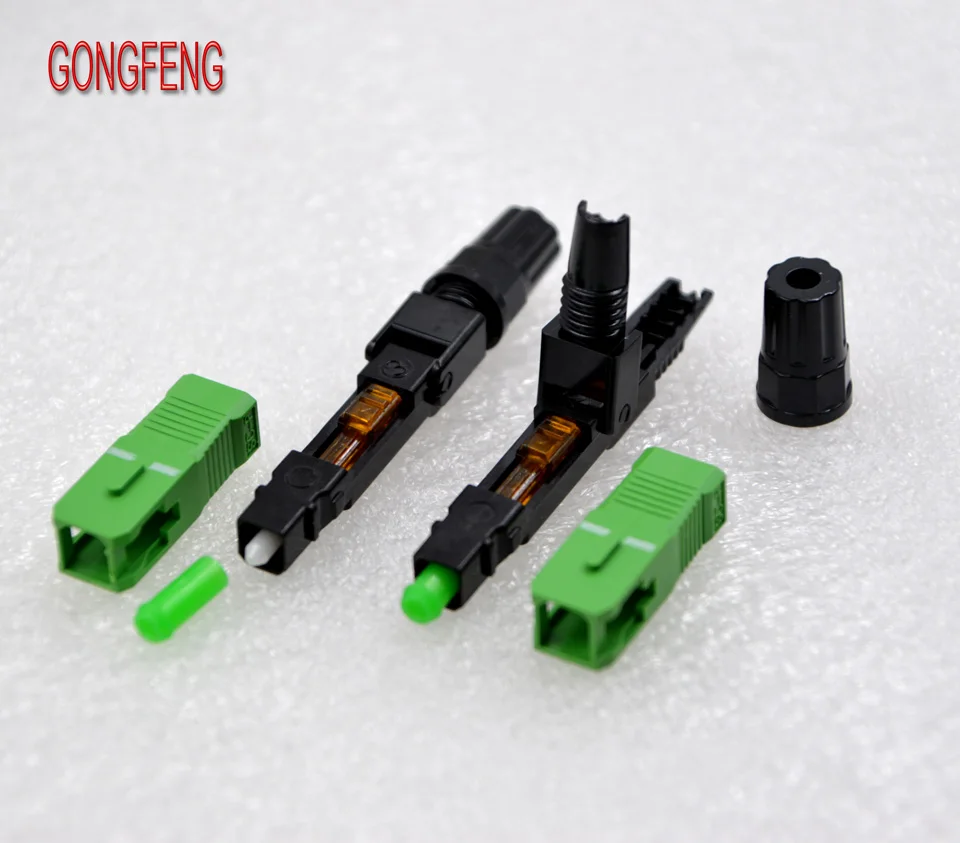

100pcs NEW Hot Sale FTTH Optical Fiber Fast Connector SCAPCFiber Optical Wire Quick Connector Wholesale Free Shipping to Brazil

Brand: GONGFENG
Model: embedded SC/APC optical fiber fast connector
Insertion loss <0.3db
Return loss >45db
Product specification: 55mmx8.9mmx7mm
Applications: optical fiber distribution frame, optical fiber network equipment, fiber to the home, cable TV network.
Data usage: average insertion loss <=0.3db., return loss >=50db

Operation procedure:

1. prefabricated fiber
2. tail sleeve through indoor cable
3. prefabricated rubber insulated wire inserted and top to the embedded optical fiber, to nudge the bending line.
4. push the retaining ring in front, lock the fiber and close the tail cover.
5. tighten the tail cover and cover the SC housing. Completion join.
Reopen method:
1. withstand the dust cap and remove the shell.
2. push the fixing ring, relaxed fiber.
3. screw out the tail sleeve, pull the cord. Complete the opening.

Operating instructions

HOT SELLING !!!!!

100pcs/lots New SC Optic Fiber Fast Connector FTTH SC/UPC -D Single Mode Quick Connector Special Wholesale FOR Russia

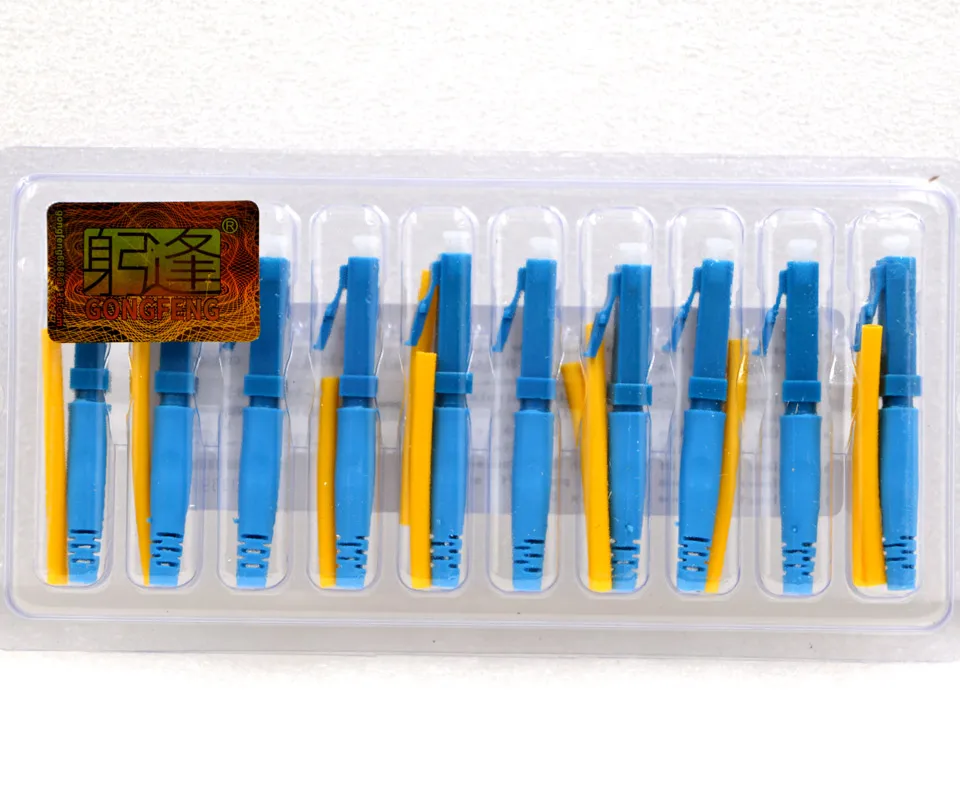

100pcs New LC/UPC Optical Fiber Fast Connector LC Fiber Optical Quick Connector LC Rope fiber Round cable Special Wholesale
