DH IPC-EW4431-ASW 4MP Panorama POE WIFI Fisheye IP Camera built-in MIC SD Card Slot Audio Alarm Interface with logo 8pcs/Lot |

---

DH IPC-EW4431-ASW 4MP Panorama POE WIFI Fisheye IP Camera built-in MIC SD card slot Audio Alarm Interface DH-IPC-EW4431-ASW 8pcs/Lot

***Since some special reason ,our store will stop useingall logo on the products. and you will not see any image with the logo .

But the products you buy still with be provide "with logo" or "without" for different demand , please choose the right one you need ,All products are original , same model same function same software .***

1.New Policy: If you order ≥ 4pcs,we could send items via express shipping for free .
2.As different country has different shipping rules.We will choose the express method for you according to our experience. Besides,if your shipping cost is too high,Hope you kindly understand that we could not remove the shipping cost for you.

3.Please DO NOT update this camera



4MP Panoramic Network Fisheye Camera
> 1/3  4Megapixel progressive scan CMOS
> H.265&H.264 triple-stream encoding
>30fps@4M(2688X1520)
> Smart Detection supported
> WDR(120dB), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 1.6mm fixed lens
> 1/1 channel In/Out
> 1/1 channel In/Out(Built in Mic)
> Micro SD memory, IP67, PoE,WiFi

Model	DH-IPC-EW4431-ASW
Camera
Image Sensor	1/3” 4Megapixel progressive scan CMOS
Effective Pixels	2688(H)x1520(V)
Scanning System	Progressive
Electronic Shutter Speed	1s ~ 1 / 100000s; can be manually or automatically adjusted
Min. Illumination	0.001Lux/F1.2 (color mode); 0.001Lux/F1.2 (black and white mode); 0Lux (infrared light on)
S/N Ratio	More than 50dB
Day and night conversion	IR-CUT automatically switches
Camera Features
Max. IR LEDs Length	15 meters
Day/Night	IR-CUT automatically switches
Backlight Compensation	N/A
White Balance	Auto/Manual
Gain Control	Auto/Manual
Noise Reduction	3D
Privacy Masking	Up to 4 areas
Lens
Focal Length	1.6mm
Max Aperture	F1.4
Focus Control	automatic
Angle of View	H:180°
Lens Type	Fixed lens
Mount Type	Board-in Type
Video
Compression	H.265/H.264
Resolution
Frame Rate	4M(2688X1520)/4M(2560X1440)/3M(2304X1296)/2MP(1920X1080P)/SXGA(1280X1024)/1.3MP(1280X960)720P(1280X720)/D1(704X480)
	D1/CIF(1 ~ 25/30fps)
	H.264/H2.65: 20K ~ 8192Kbps
Audio
Compression	G.711a;G.711Mu;G.726;ACC
Interface	1/1 channel In/Out(Built in Mic)
Network
Ethernet	RJ-45 (10/100Base-T)
Wi-Fi	N/A
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility	ONVIF,PSIA,CGI
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot	Micro SD, Max 128GB
RS485	N/A
Alarm	1/1 channel In/Out
PIR Sensor Range	N/A
General
Power Supply	DC12V,PoE
Power Consumption	Max 10W
Working Environment	-10°C~+50°C, Less than 95% RH
Weight	0.5kg

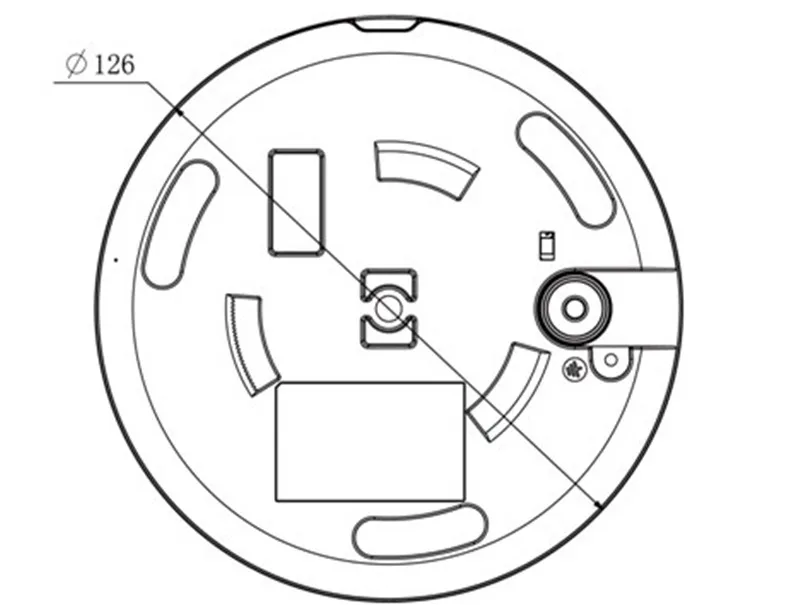

Dimensions	126 X 37.7 mm
Installation method	Wall mounted; ceiling; embedded
WiFI	Wifi transmission distance of 80 meters; wireless standard IEEE802.11b, 802.11g, 802.11n











1.IPC-EW4431-ASW(with logo) 4MP Panorama POE WIFI Fisheye IP Camera*8

2. screw bag *8

3. Waterproof accessories *8

Question: can you upgrade the firmware?
Answer: NO.it do not supportupgrade the firmware.



Question: What kind of warranty does the camera offer? What is the didtance of the IR in feet?
Answer: Ir is very good to 30 foot and fair to over 50 feet.

Question: are these night cameras?
Answer: Yes these is a day/night camera



Question: How default IP and login pass for connection to Camera
Answer: 192.168.1.108. User name is admin Password is left blank. You can set it once you're logged in.



Question:how do you factory reset?
Answer:You need to use the software that comes with the camera. There are no buttons. ask server forDH discovery software.



---

---
