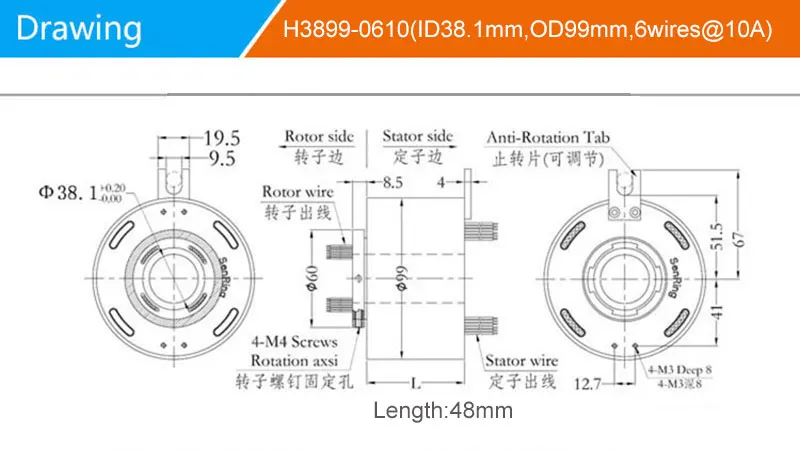

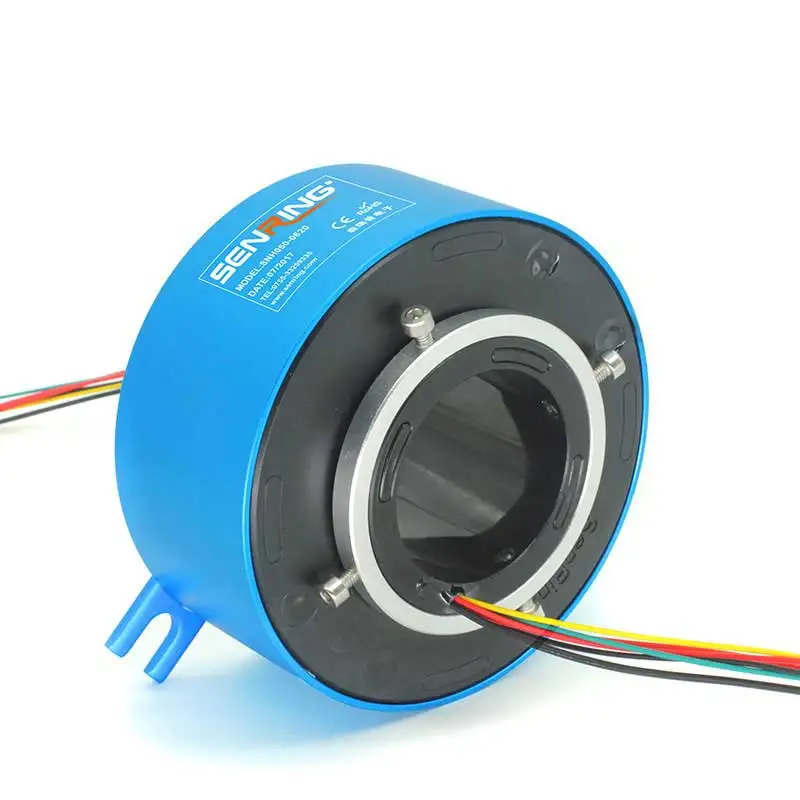

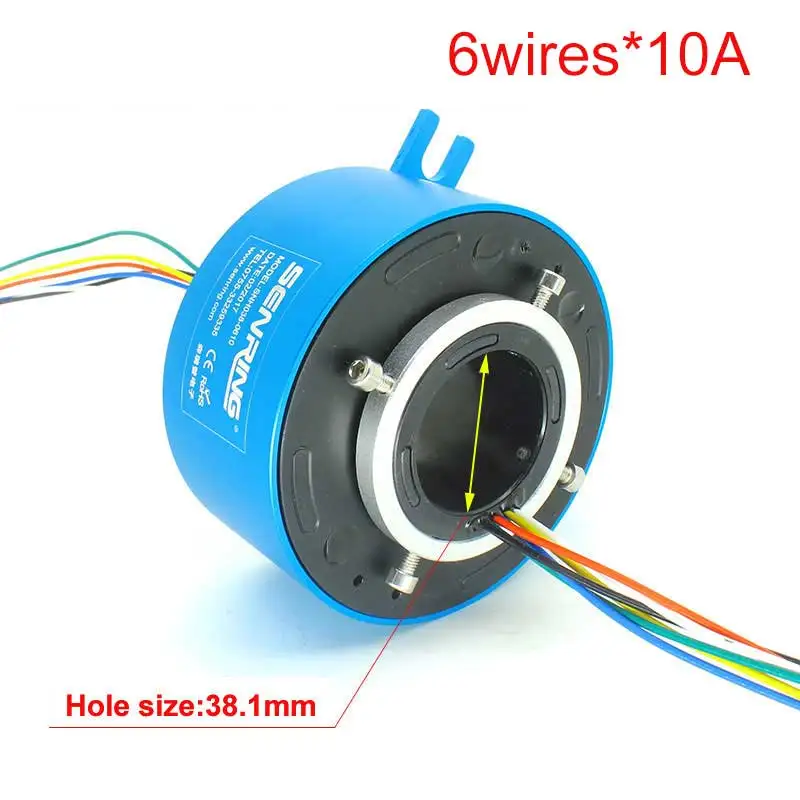

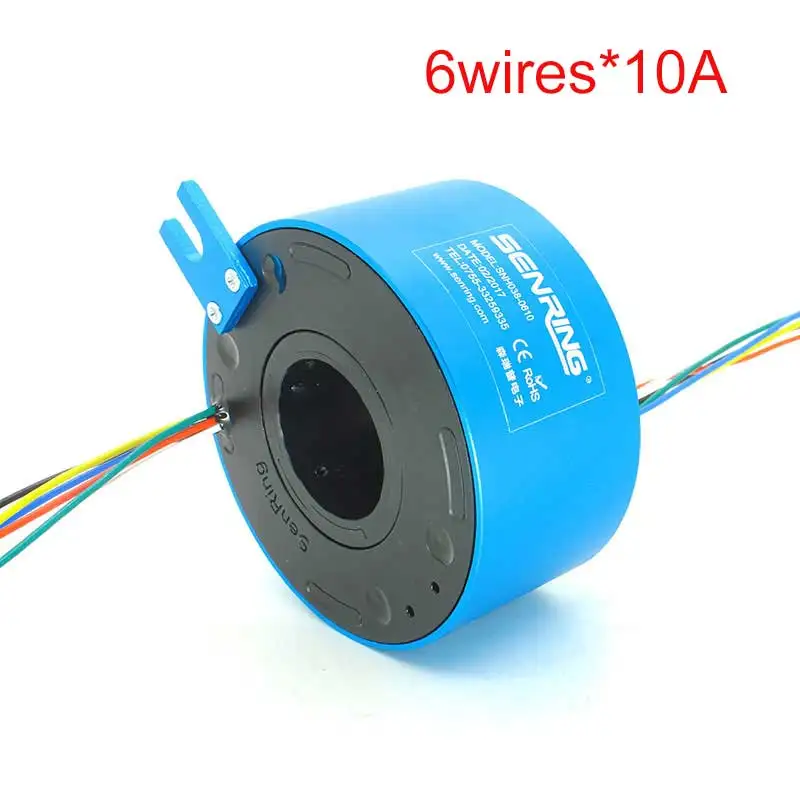

6 Wires 10A Through Bore Slip Rings Hollow Shaft Hole Slipring Diameter 99mm Brush Conductive Rotating Shaft Enclsoed Ring

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

Parameters:

• Speed:400 RPM or Customized

• Current Wires:6wires

• Rated voltage:240VAC/VDC

• Rated current:10A

• Operating temperature: -30 ℃ ~ +80 ℃

• Contact material:gold to gold

• Wire Size:AWG17#  Silver-plated Teflon UL

• Wire length: standard 300mm or can be customized

• Compressive strength:between the two channels≥300V 50Hz

• Insulation resistance:300MΩ/300VDC

• Dynamic resistance fluctuation value:minimum 10mΩ

• Housing Material : Aluminum Alloy

• Working Life:>=5 million RPM (depending on the working enviroment and speed )​

Feature:

◆Low torque,low electrical noise;

◆Military hard gold plated contact material with low resistance flunctuation and long working life ;

◆Integrated structure design ,easy installation;

◆Metal housing for better protection;

Application:

◆Servo motor

◆Factory automation,Heavy equipment,Machine tool,Packaging ,Medical,Oil and gas ,Defense and Aerospace

◆Robot Light

◆Electrical test equipment

◆Packaging Machinery,Paper Processing Machinery,Robotic Welding Equipment,Rotating Platforms

Package included:

• 1* Hollow shaft through hole slip ring
