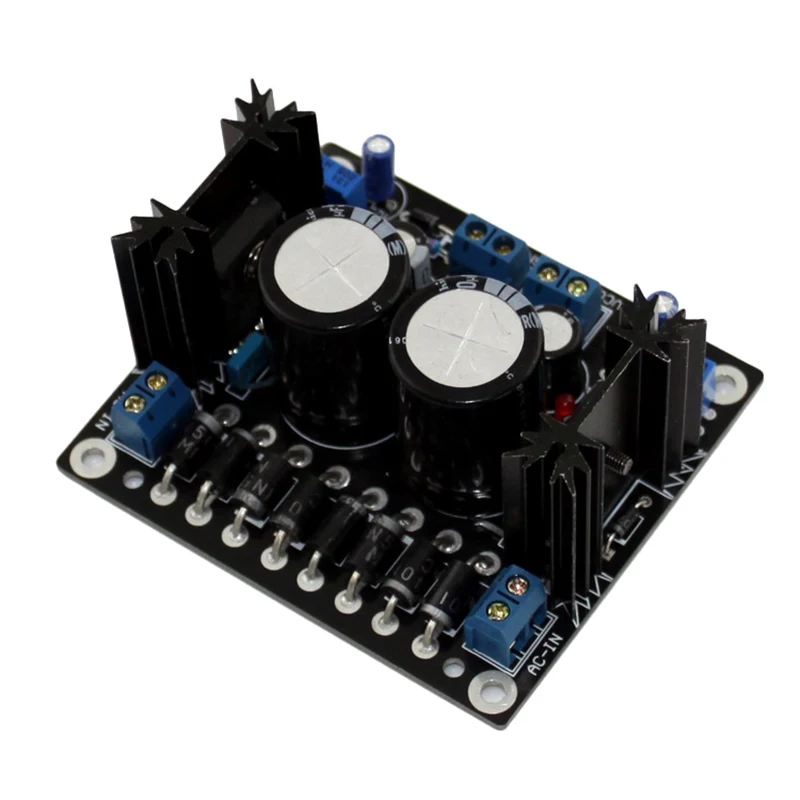

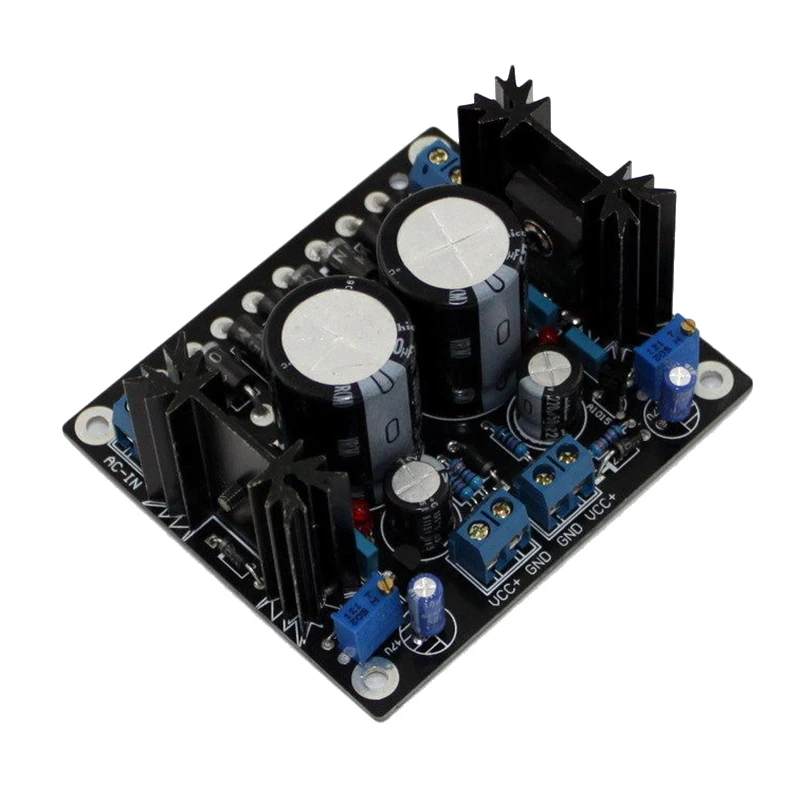

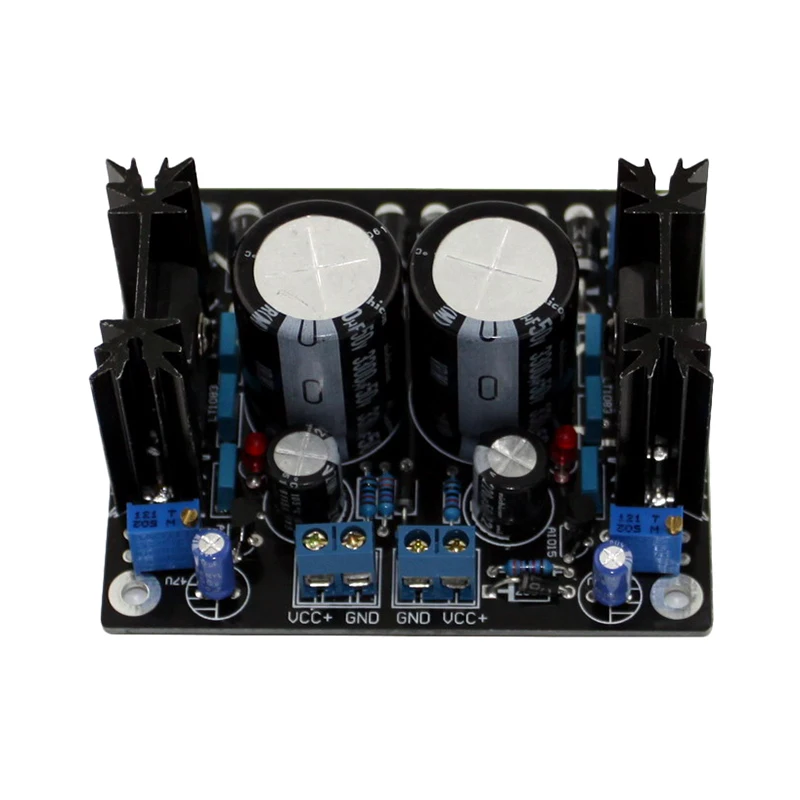

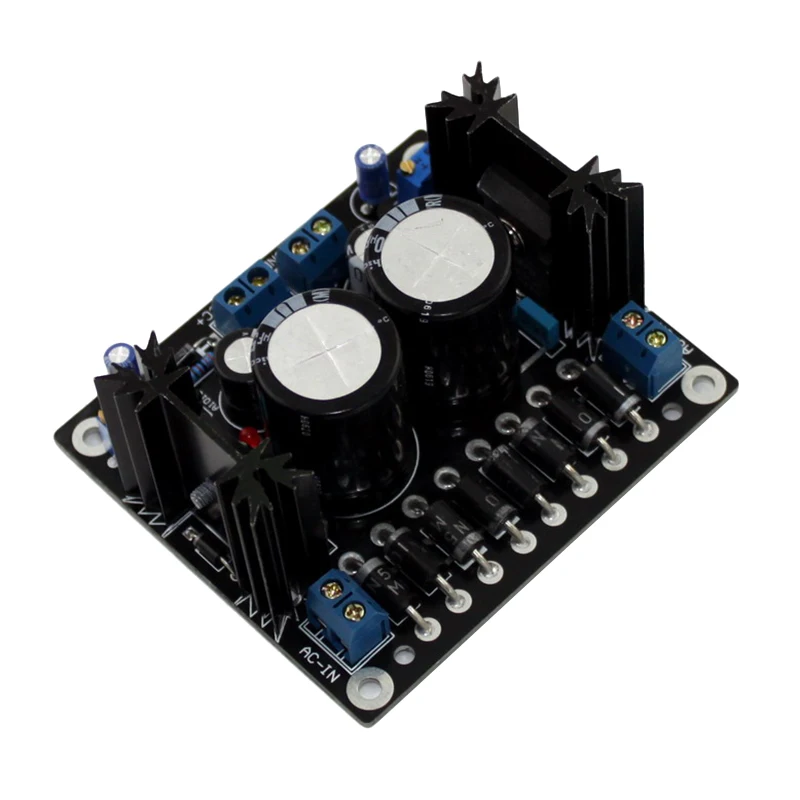

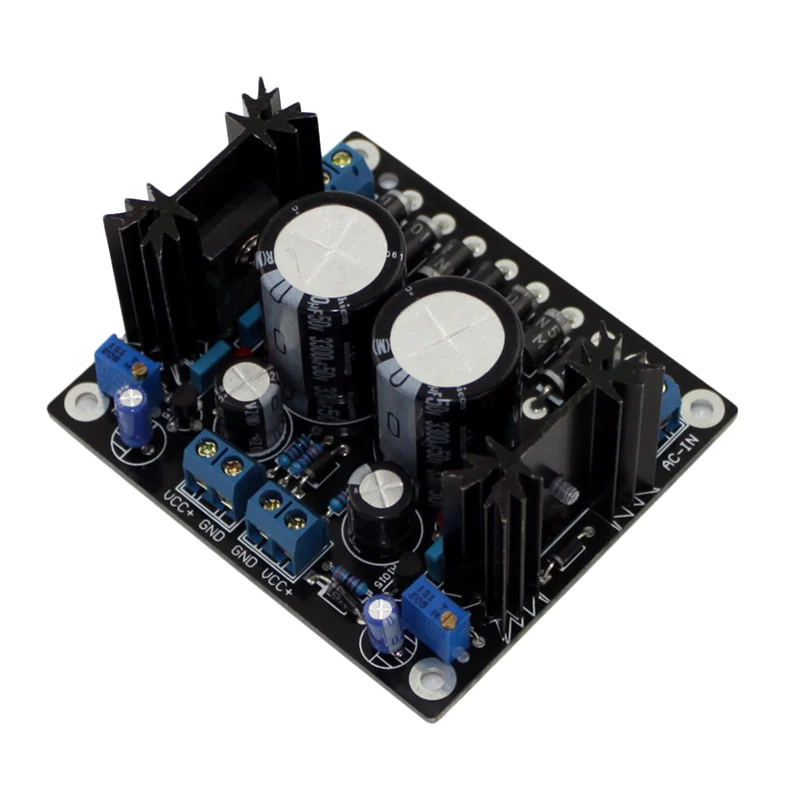

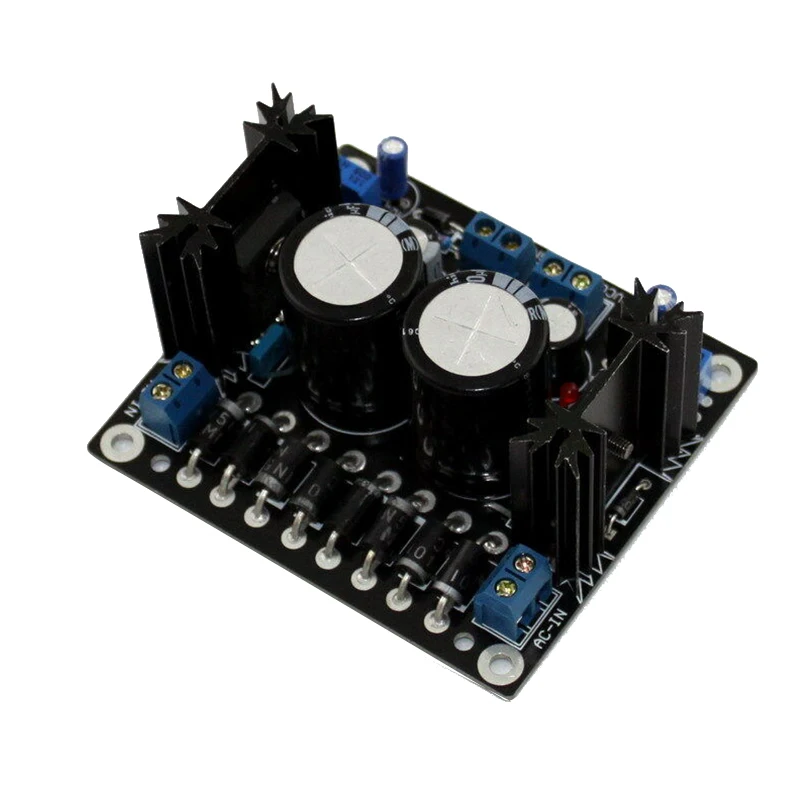

Lt1083Cp Power Adjustable Supply Board Hifi Dual Linear Output Ac 0-34V Out Dc 0-48V | Электроника

Mosfet Regulator Rectifier For Yamaha Raider / YZF R1 2002-2014
Channels:1
Maximum Power Per Channel:10W
The original and used LT1083CP
Electrolytic capacitor signal main circuit using Taiwan famous brand, the main filter capacitor using the Japanese Nikon electrolytic capacitor 3300UF/50V, to ensure a steady stream of power support.
Resistance selection of five rings metal resistance, the main loop with precision of 1% rings of metal film resistance, to ensure that the good signal to noise ratio.
PCB using 1.6mm thick double-sided plate, 2 a copper thickness, tin spraying process, to ensure that the size of the current through the performance of the good. First class PCB quality.
Note: the sliding time to determine the capacity of the 10UF/50V capacity, large capacity, long, such as the need for sliding 10UF/50V can not be directly removed
Voltage: input AC 0-34V output DC 0-48V
Current: 0-10A
PCB size: 83*73MM
colour:black
Material:Metal + PC
Package Contents:
1 * adjustable power supply board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
