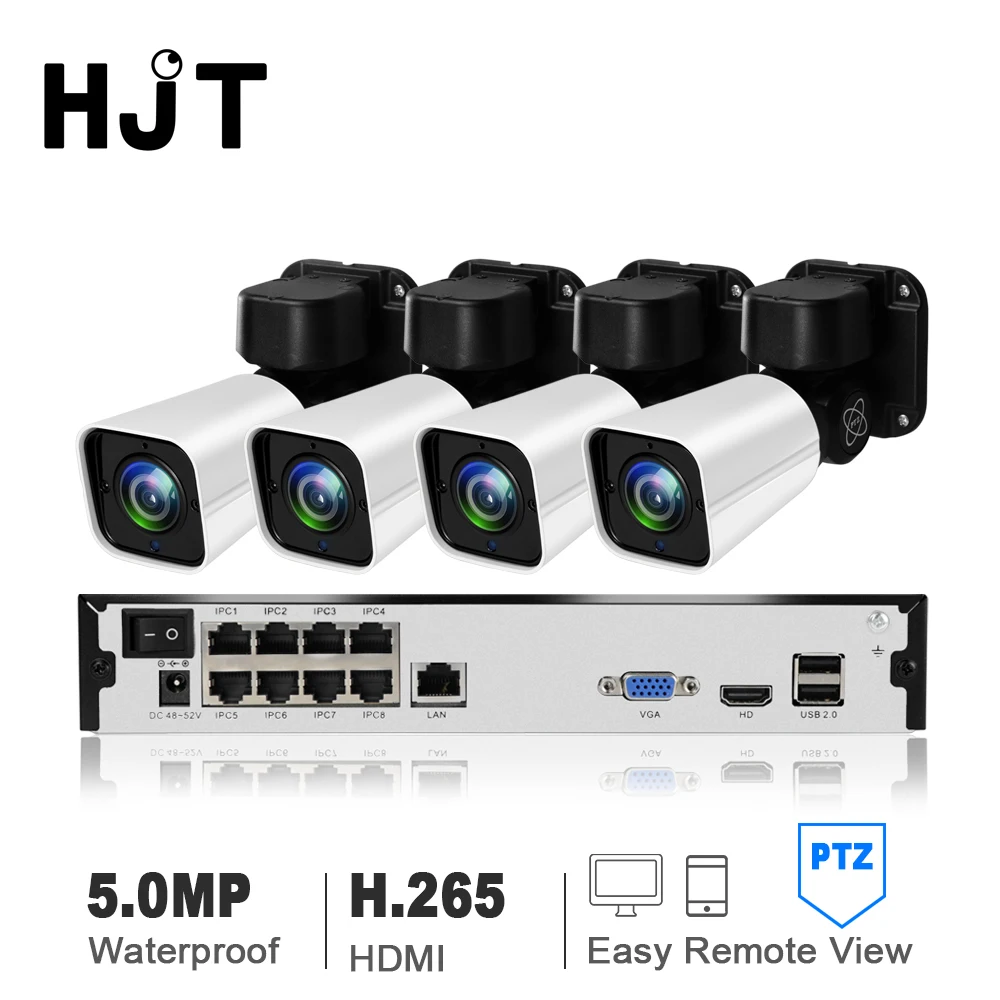

   Pakage Includes

   1. BFMore  8CH POE H.265 NVR * 1 (Customer could add more cameras in the future)

   2. 5.0mp H.265 PTZ IP Camera* 4

  3. POE Splitter *4

   4. Power adapter for NVR* 1

   5. 20m Ethernet Cable* 4 (if longer cable required,please feel free to contact us)

   6. Mouse * 1

   7. User Manual CD *1

   8. Screw package*1

   (If choose HDD,We will help customer to install and test)





   Product Description

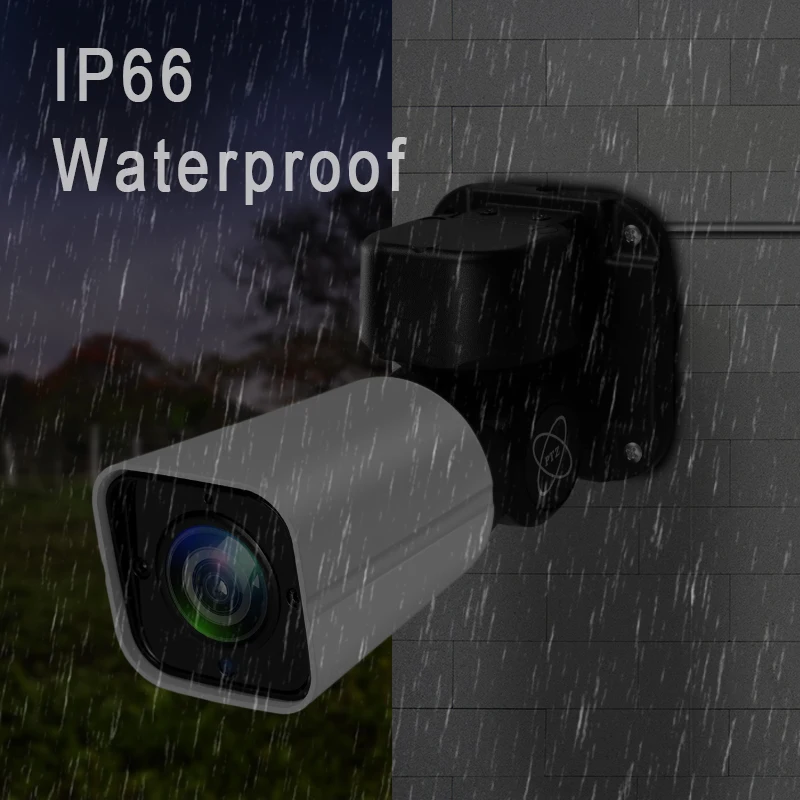

   • 5.0MP 4X Optical zoom POE Cameras Waterproof IP66 for outdoor/indoor use.

  • UP to 16CH, the 8ch connect with POE IPC directly, the other 8ch come from switch

   • H.265 main profile and baseline.

   • P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR at any time and any place

   • Motion Detection alarm can send alerts through e-mail or FTP.

    •  Support megapixel HD network video preview, storage and playback;     •  Support search, playback and backup by event;     •  Support all channel image display on one screen at same time     •  Offer CMS,Smart phone APP for free



WHAT IS THE H.265?

The Newer decoding mode. More Clear , HD resolution offer you best image quality in lower bit rate. Save more storage space,it can reduce 40%-50% file size,save your HDD storage space and reduce your purchase cost.



POE Function

IEEE802.3af Standard 48V POE

Easyer to install.

Plug and Play.

160° Endless Pan 55°Tilt，Every Corner Covered!

With pan function, BFM-HD360-5.0MP PTZ security camera can rotate 160° endless horizontally at high speed. The tilt rotation at 90° makes a reliable home and business monitoring and surveillance without vertical limitations, leaving no “dead area”. Besides, BFM-HD360-5.0MP supports preset Cruise point, time and speed as you want.





Impressive 4X Optical Zoom

Motorized zoom lens with auto-focus function in  BFM-HD360-5.0MP 4X optical zoom IP camera enables a wide viewing angle (36°~100°). It lets you zoom in to see more details of far-away objects without getting closer, or zoom out to get a wider and larger view.





Motion Detection

Whenever a danger is detected, the camera will trigger alerts by immediately sending alert e-mails and  pushing notifications to your device.







 Day and Night Guard

Infrared leds will autoly turn on when light is weak or completely dark to ensure high quality pictures.









Remote Viewing, Anytime, from Anywhere

No matter where you are, you can remotely access the camera to see live streaming and stay connected.

Remotely view the camera via: free AEeye App on your mobile device, free CMS Client on your computer, web browsers (IE, Google Chrome, Microsoft Edge, Safari, Firefox, etc.)

Parameter

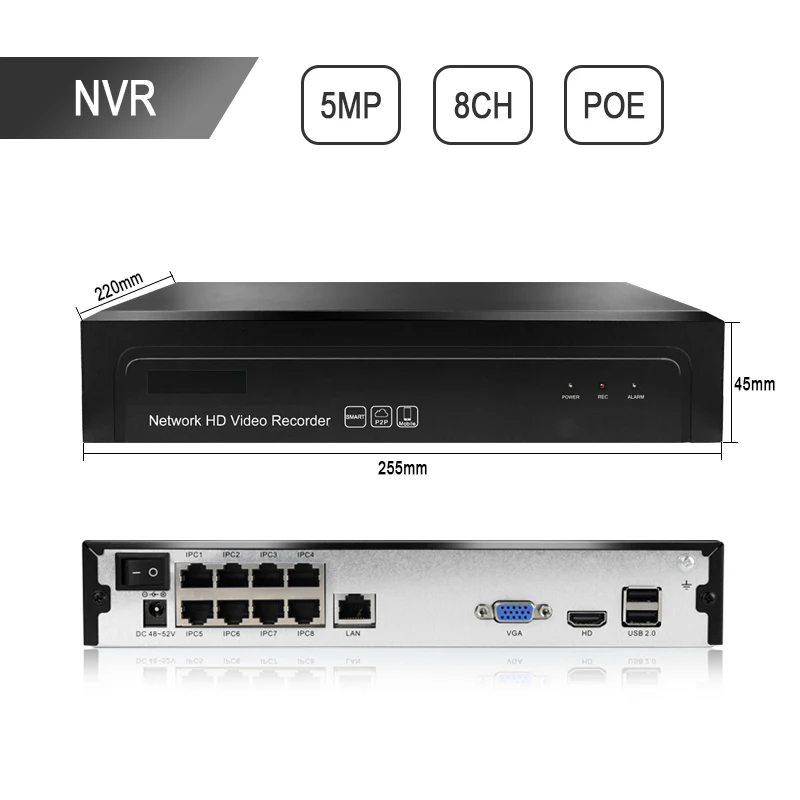

NVR

Operating System		Embedded LINUX operating system
Image Code Control		Image code quality adjustable, variable bitstream and constant bitstream optional
Dual Stream		Each channel can set main stream and sub stream
Video Standard		16ch 5MP/3MP/1080P/720P
Monitoring Image Quality		16ch 5MP/3MP/1080P/720P
Image Motion Detection		Each screen can set mutiple detection areas and set 6-level sensitivity（IPC  Support）
Recording Playback Quality		5MP/3MP/1080P/720P
Video Capacity		NVR local recording playback support 4CH 2MP or 1CH 5MP (at same time)
Region Cover		Every channel can set 4 cover regions（IPC Support）
Recording Mode		Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs  IPC Support)
Backup Way		Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup
Operation Way		Mouse
Local Login		Username and password
Recording Storage		Local HDD, network
External Ports	Video Input	16ch 5MP/3MP/1080P/720P
	Audio Input	16ch network audio input
	Video Output	1ch VGA+1ch HDMI
	Audio Output	1ch HDMI
	Network Port	1 RJ45, 10/100M self-adaptive LAN port
	USB Port	2 USB 2.0 ports
HDD & POE	HDD Port	1 SATA HDD Port
	MAX Capacity	Each port supports MAX 8TB HDD
	POE Port	8 10/100M Independent LAN port, data transferring and power supply both by network cable
	Consumption	120W
	Standard	IEEE802.3af
Mobile Surveillance		Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone
Power Supply		DC52V1.5A
Power Consumption		≤115W（without HDD）
Working Temperature		-10℃～＋55℃
Working Humidity		10％-90％
Dimension		Equipment：260mm×220mm×43mm， Packing：355mm×255mm×88.5mm
Weight(without HDD)		N.W.：1.3Kg；With packing：2.4Kg
Installation Way		Desktop Installation

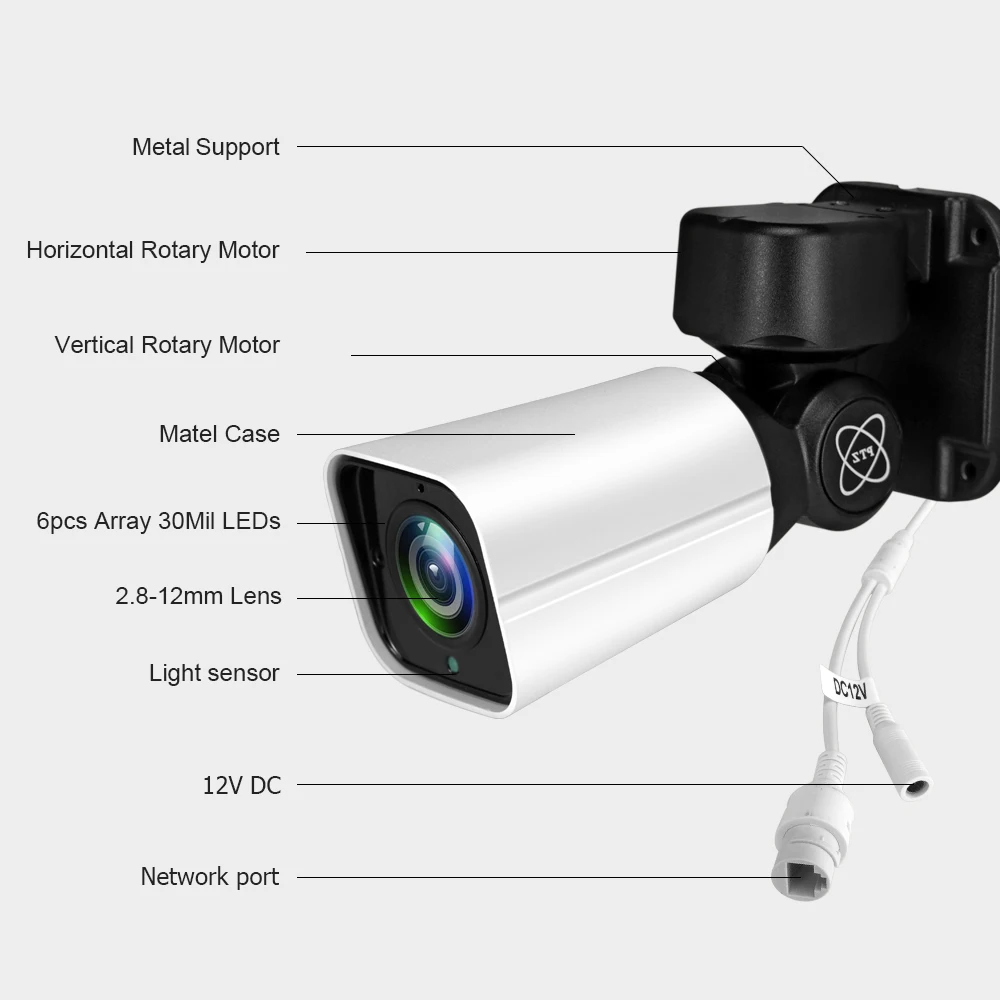

Camera

Communications Protocol	TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P
Software Control	IE, CMS, Management Platform
Video compression	H.264/H.265/M-JPEG
Audio compression	G711, PCM
Mobile View(optional)	Android  iPhone
Rotation Range	Pan: 0°~160º , Tilt: 0°~55º
Rotation Speed	Pan: 0~25°/s , Tilt: 0~20°/s
Auto Flip	Support
Preset Points	220pcs presets（dwell time 01-60s interval available）
Guard Tours	3 groups ( each group 16 preset、dwell time and speed selectable)
AB scan range	Support, 0-160º
AB scan speed	1-9 grades
Operating temperature	-30℃~+60℃
Operation menu	English
Auto Control IR LED	PWM
Consumption	≤10W
Lightning Protection	Transient voltage 6000V
Related validation	IP66,CE,FCC,RoHs
IR parameters
Auto Control IR LED	PWM
IR distance	up to 50 meters
LEDs	6 PCS Array 30Mil LED





---

---
