Product Description

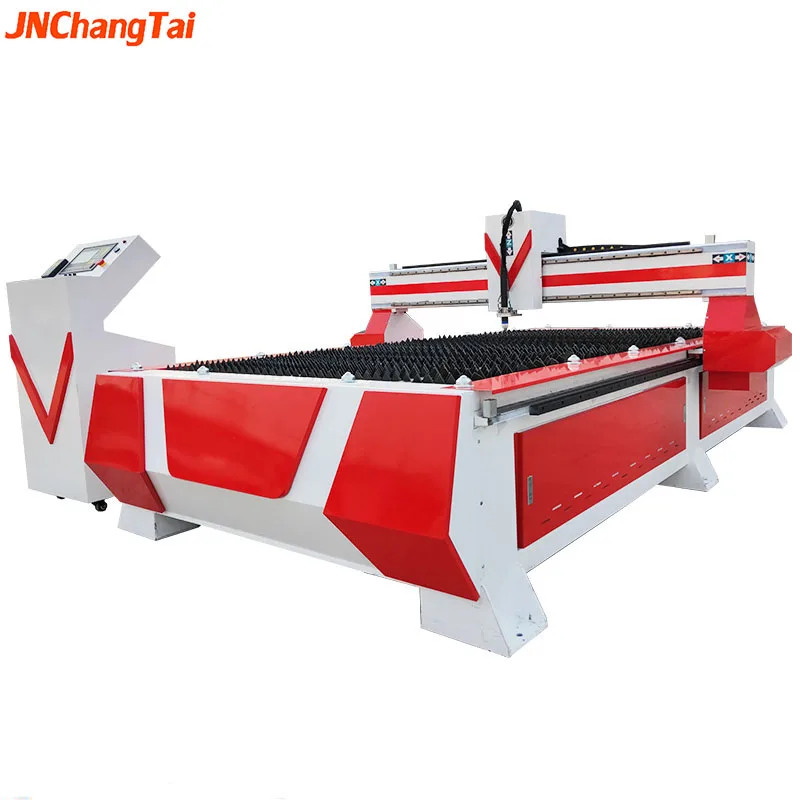

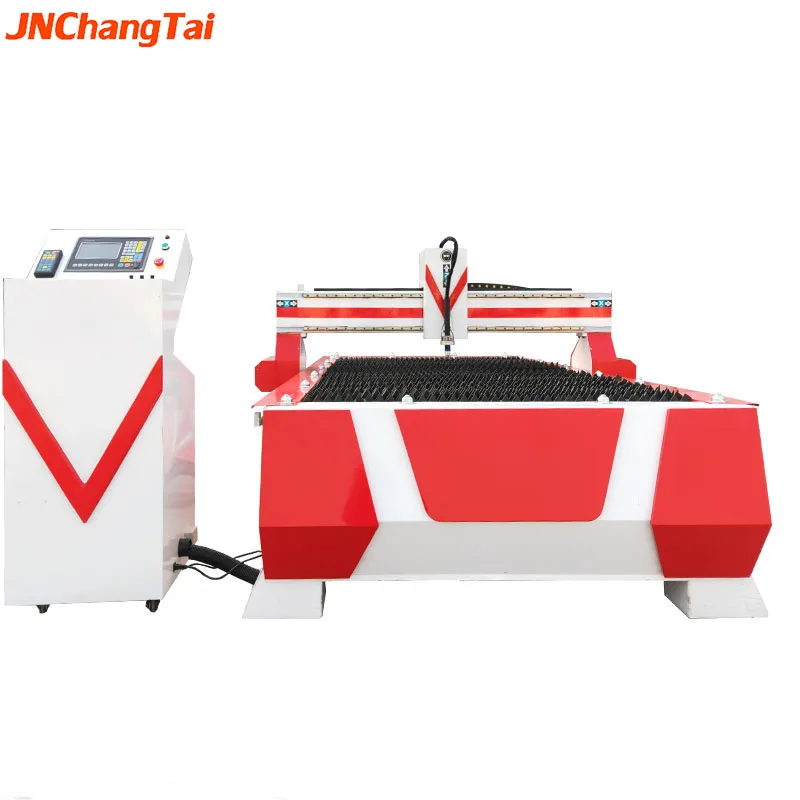

Metal art cnc Cutting Machine/plasma cutting table

Cnc  plasma cutting machine

Advertising industry: Advertising signs, logo making, decorative products, production of advertising and a variety of metal materials.
Mold Industry: Engraving metal molds made of copper, aluminum, iron and so on.
Metal industry: For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate, gold, silver, Titanium and other metal plate and tube.

Working area (X-Y)	1500mmx3000mm
Working material	Iron, Steel, Aluminum sheets, Galvanized sheets, Titanium Plates
Plasma Current	63A/100A/120A/160A/200A
Working Mode	Untouched arc striking
Cooling method	With water pump and tank provide circulating water cooling
Working Thickness	0.1-35 mm
Connecting Way	USB
Rail guide	Taiwan HIWIN linear square rails
Transmit way	Taiwan imported ball screw
Cutting Speed	0-6000mm/min
Command	G code, *uoo, *mmg, *plt
Spare parts	Electrode ,Electricity nozzle and Water jacket

Cnc plasma cutting machine Main Features

1) High accuracy rack gear transmission. Lower noises, stable and accurate coordinate movement.

2) Starfire control system made in Sino-US joint venture and Germany design software FastCAM with auto material saving function.
3) Hypertherm plasma power supply is optional together with high sensitive arc pressure adjuster. Self-adjusting can choose the best distance between plasma gun and working piece automatically to ensure  high accuracy cutting. Factory Detailed Images

control system

The system is highly reliable and designed with anti-plasma interference, lightning protection and surge capability.

THC

The new design of the operation interface has added a variety of practical indicator functions, such as collision indication, upward and downward direction, etc., with beautiful interface and more complete functions.



Huayuan Power:

The most advanced vulnerable parts technology provides faster cutting speed and better cutting quality to help you get twice the result.
Excellent portability, simple controller, and stable plasma arc, all of which makes it easy to operate the Powermax system even for beginners.
It has long life, fast cutting speed, and reduces the cost of metal cutting and gouging.

Saw tooth table

it is welded by a zigzag flat steel. Besides the characteristics and USES of ordinary steel grid, it has a strong anti-skid ability, especially suitable for damp and greasy places.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	3500(L) * 2250 (W) * 1789 (D)
Weight	2.0 T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
