UVA-X1 UV Sensor, UVALED-X3 for UVA or UVV Light Sources Probes for LS125 Ultraviolet Light Meter Test Intensity and Energy



Note: All these probes only can suitable for our product LS125 UV Light Meter.  The host LS125 UV               light meter linked to the probes need to be purchased separately. And we also sale the host               LS125 UV Light Meter and other suitable probes in the store.



This order only includes a piece probe.

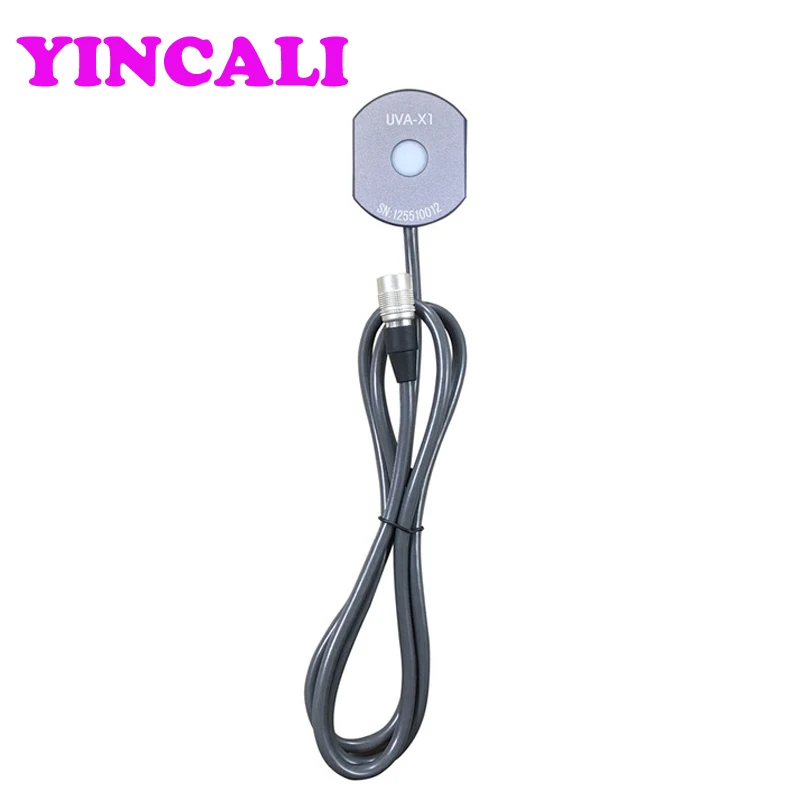

UVA-X1 Probe



UVA is used in aging experiments to simulate sunlight. The UVA-X1 probe is one of 9 probes for LS125 UV light meter, with a spectral response range of 260nm-400nm and a peak wavelength of 365nm, suitable for the intensity and energy measurement of UVA in aging experiment or sunlight.



UVA-X1 Probe Parameters

Parameters	UVA-X1 Probe
Spectral response	Spectral response: 260nm-400nm, λp = 365nm
Power measuring range	0 - 200000μW/cm2
Resolution	0.1μW/cm2
Energy measuring range	0-9999999μJ/cm2
Record time	0-99999s
Measuring accuracy	±10%
Sampling speed	6 times/second
Optional unit	μW/cm2 (default), mW/cm2, W/m2
Test Hole Diameter	￠=10mm
Probe size	length 39mm × width 32mm × thickness 15mm

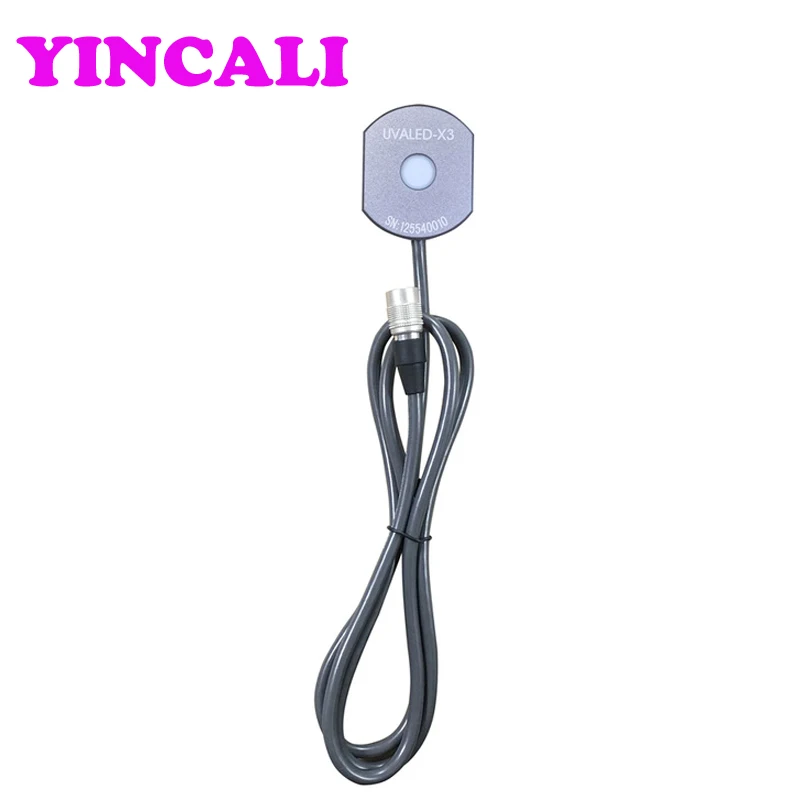

UVALED-X3 Probe



 UVALED-X3 probe is one of the 9 probes of the LS125 UV light meter, with a spectral response range of 340nm-420nm, suitable for the intensity and energy measurement of UVA or UVV light sources, as well as for the intensity and energy of UVA LED light sources with low power.



UVALED-X3 Probe Parameters



Parameters	UVALED-X3 Probe
Spectral response	340nm-420nm, calibrated with 395nm UV LED
Power measuring range	0 - 200000μW/cm2
Resolution	0.1μW/cm2
Energy measuring range	0-9999999μJ/cm2
Record time	0-99999s
Measuring accuracy	±10%
Sampling speed	6 times/second
Optional unit	μW/cm2 (default), mW/cm2, W/m2
Test Hole Diameter	￠=10mm
Probe size	Length 39mm × width 32mm × thickness 15mm

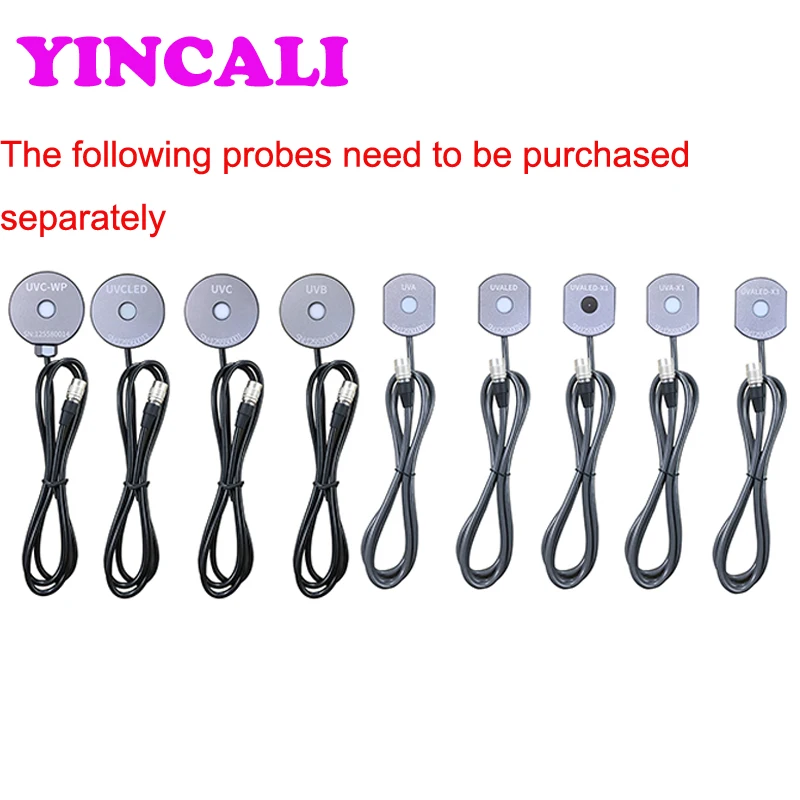

Parameters for all suitable Probes (Please according to your needs to choose the suitable probes. All these probe only can suitable for our LS125 UV Light Meter):



Noted: All these probes only can suitable for our LS125 UV Light Meter.  We also sale the host LS125 UV Light Meter and other suitable probes in our store. Please also purchase the host LS125 in the same time, Then we can arrange shipping to you together. If you have any questions, please contact us. Thanks

This order only includes a piece probe.





---

---
