High Accuracy 10g-1kg Pressure Sensor Smart Flexible Thin Film Force | Инструменты

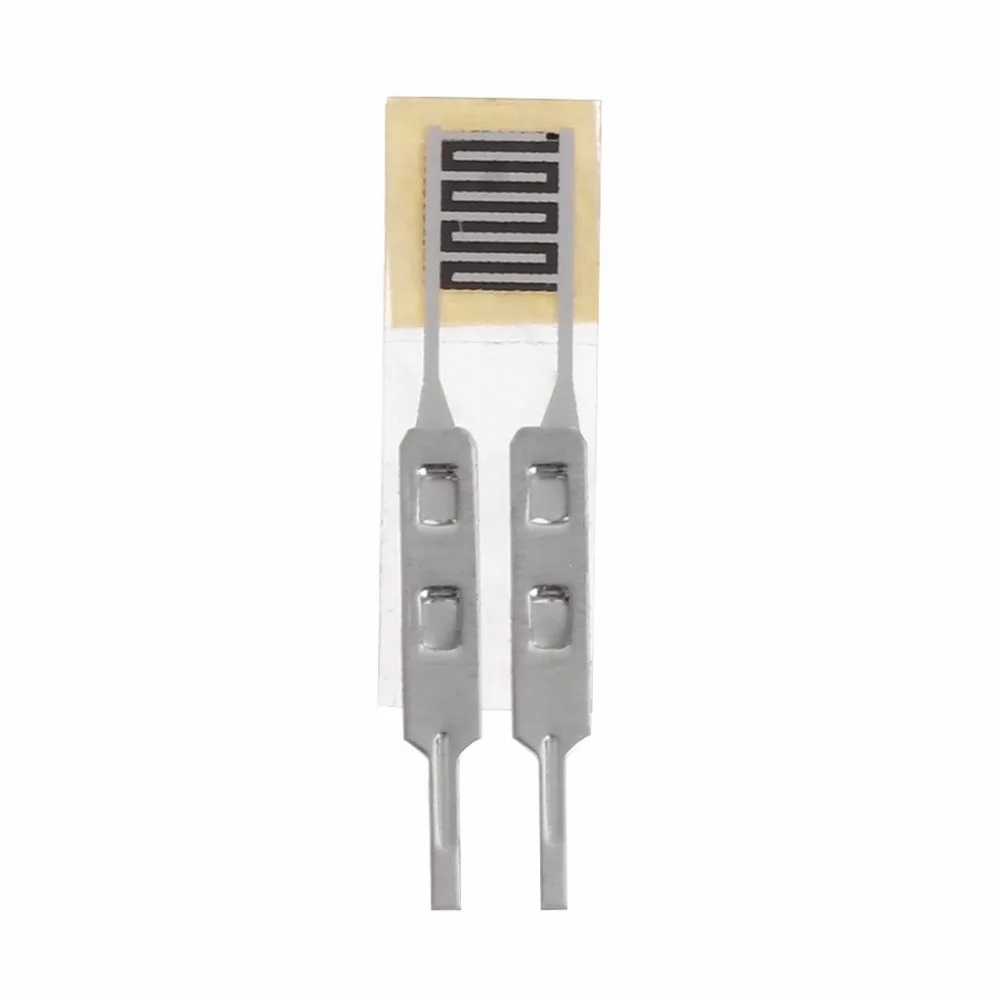

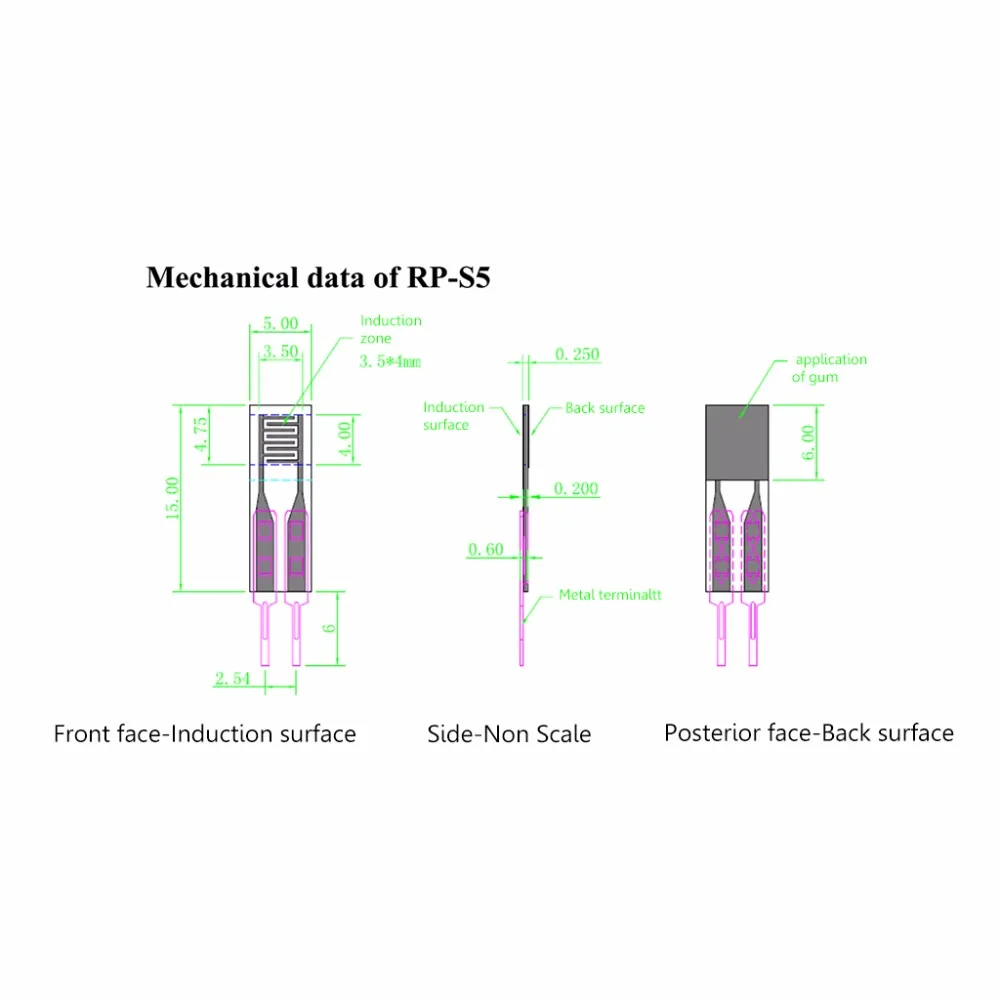

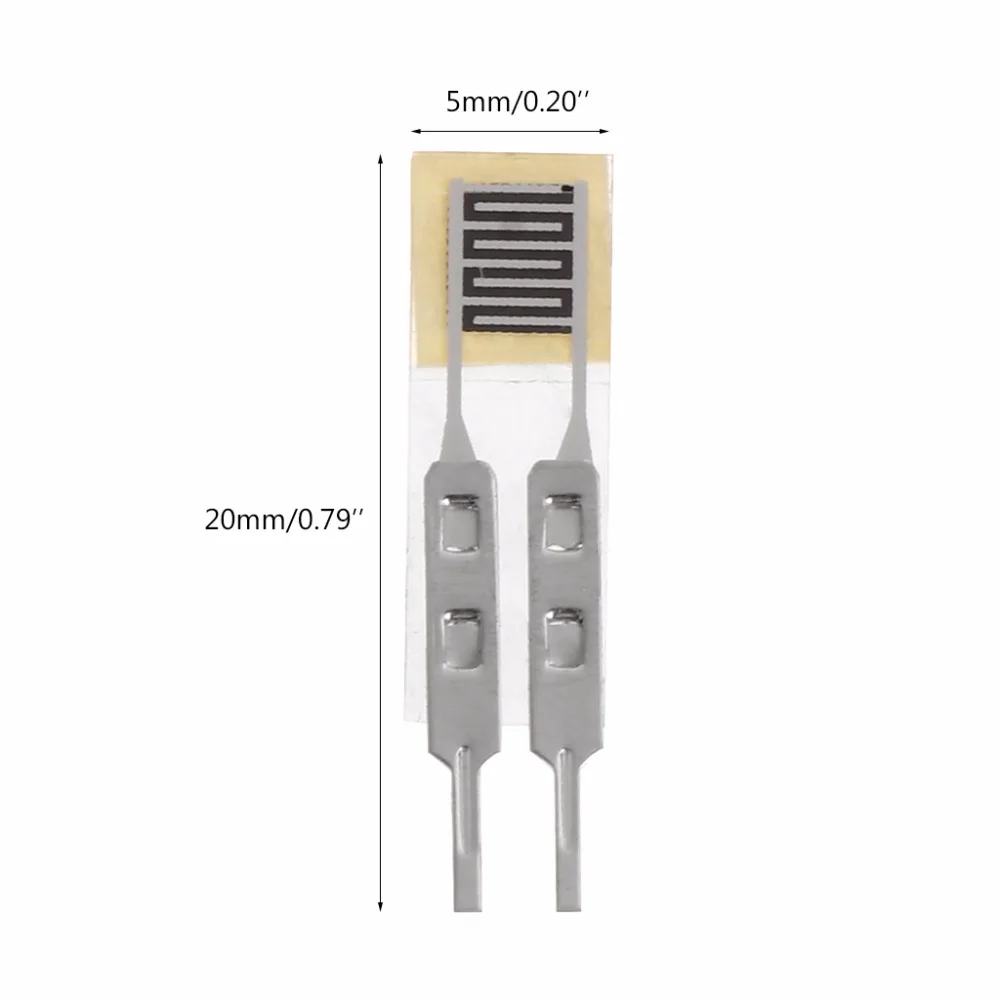

        High Accuracy 10g-1kg Pressure Sensor Intelligent Flexible Thin Film Force Sensor RP-S5-ST   Features: The flexible sensor has the characteristics of flexible ultra-thin, ultra-low power consumption and extreme speed response, etc. Small size, this flexible pressure sensor is based on new nanometer pressure-sensitive materials supplemented by ultra-thin film substrate. This pressure sensor has the characteristic of high stability, high consistency. Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure. When sensor detects outside pressure, the resistance of sensor will change. Pressure signal can be converted into a corresponding electrical signal output using simple circuit.   Specifications: Model: RP-S5-ST Shape: Flexible Output signal: analog Pressure induction range: 10g-1000g Trigger: 10 g, triggered, default Resistance <200 kΩ Thickness 0.25mm with Rear ADH Not trigger resistance: > 1MΩ Response time: < 10us Operating :Temperature  -40℃~+85℃ Life time :>1 million EMI :Generates no EMI EDS:  not ESD sensitive Drift:  <10%, 500g load, 24H Size: 5mm*20mm / 0.197in*0.787in   Note: Detailed specifications are available, please contact us if necessary   Package included: 1 x  Pressure Sensor
