High configuration Multi Heads CNC Router For Woodworking | Инструменты

Model          Multi function woodworking cnc router

Frame            Heavy welded Steel Structure

Spindle      6kw+3*3.5kw Air Cooling Spindle
Spindle Speed        Adjustable 0-24,000 rpm

Inverter        FULING

Command       G code

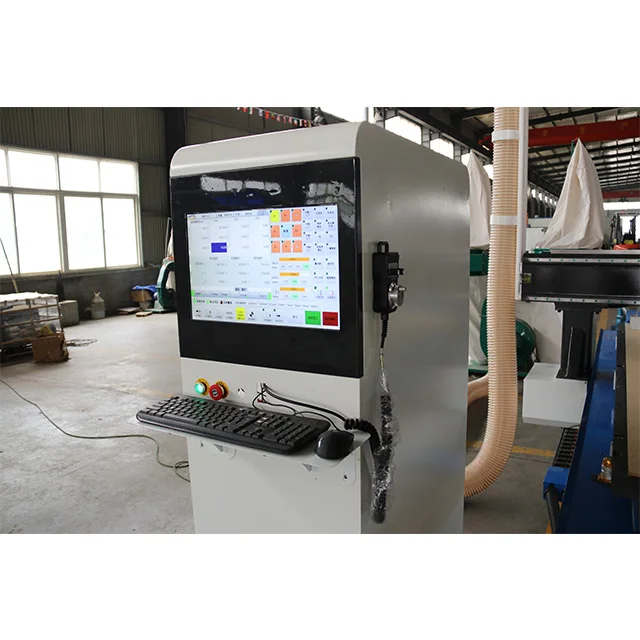

Controller      ShanLong 1000

X,Y,Z Working Area   1300x2500x200mm
X,Y,Z Re-positioning Accuracy      <0.03mm
Table Size       1340×3640mm
Table Surface       Double vacuum adsorbed table
Working Voltage     AC380V/50/60Hz,3PH (Option: 220V)

Drive Motors       Leadshine Hybrid servo motors (or stepper motors)
Software Compatibility     Type3/Artcam/ Software
Dust collector     3.0kw vacuum cleaner
Vacuum pump     7.5kw water-cooled vacuum pump

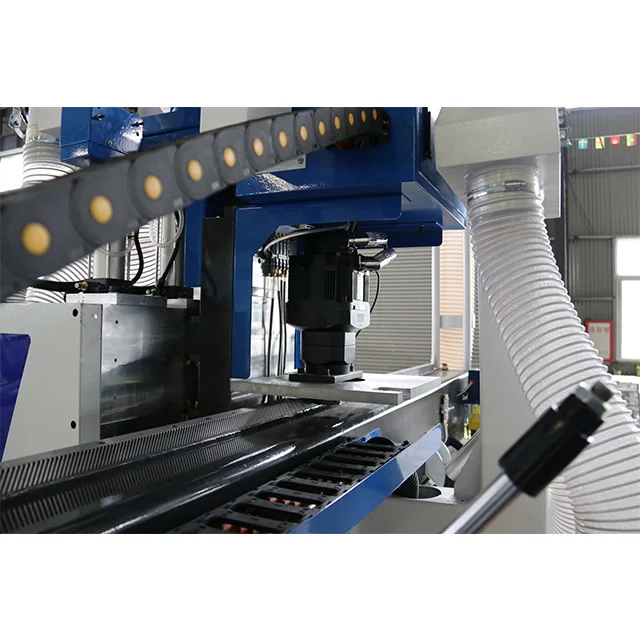

X, Y Structure     Rack and Pinion Drive, Taiwan CSK linear guide
Z Structure     Taiwan Hinwin linear guide
Max. Rapid Travel Rate     50000mm/min
Max. Working Speed     25000mm/min

Multi heads cnc route features

1)Adopt heavy duty machine frame, forming by CNC planer-type milling machine, more stronger, stability,
2) High accuracy HIWIN linear guide fromTaiwan, high accuracy helical gear rack transmitting, more stability, higher precision.
3) Enlarged cast iron supporting frame, ensure transmission stability

4) Has power off restoration, continue processing at break point, auto tool height adjusting device, repeat processing, support 9 coordinates setting, user friendly design.
5) Standard configured 380v 6.0kw air cooling spindle motor, high power, high efficiency.
6) Be compatible with many CAD/CAM software like Type3/Artcam/Casmate/Proe/UG/Artgrave etc.

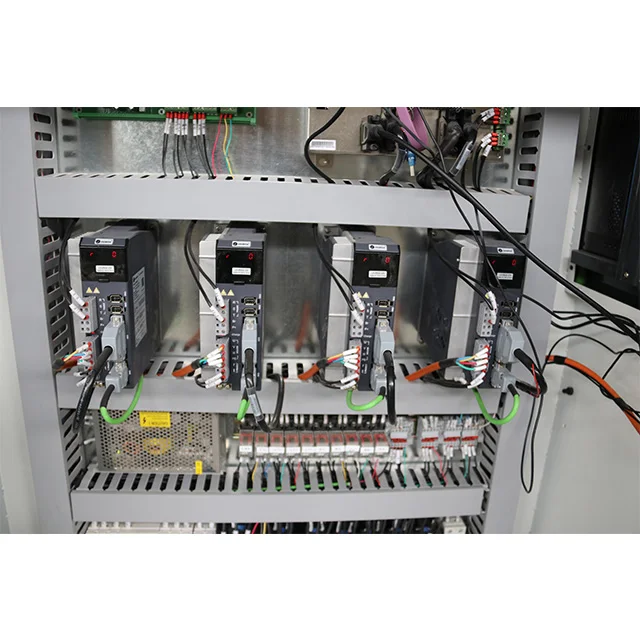

7) Independent control cabinet, stronger power and weak power separate, maintenance easily
8) Can optional the vacuum system and dust collector system

JNChangtai company takes the "quality, integrity, innovation, service" spirit, always adhere to the customer demands as the guide, it was well welcomed by almost all customers with its high-quality product and good after-sales service.

We cooperate with many shipping company who have much experience in the ocean transportation will guarantee your cnc router machine safety.

1. Warranty
* 3 year warranty for this cnc router machine
 *Our customer will be fully trained for the operation and maintaining technology after the order confirmed.
 *24-hour full after sales service: our skilled engineer will help customer to solve the problem by MSN, SKYPE,QQ etc in time when problems happen, if necessary, overseas service is available.

2. Quality Control
 *Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure.
 *All finished machine we delivered are 100% strictly tested by our QC department and engineering department.

3. OEM Service
* Customized and OEM orders are welcome due to our aboundant experiences.
 *All the OEM services are free, customer only need to provide us with your logo drawing, function requirements, colors etc.
* No MOQ required.

4. Privacy
 *None of your personally identifiable information ( such as your name , address , email address ,bank info ,etc ) will be disclosed or shared with any third parties.
*Contact: All of your inquiries or questions or helps will be answered within 24 hours, even in holiday. Also, please feel free to call us if you have any emergency questions.

Name:Lisa Lee

Mod/Whatsapp:+86 15830059372

Email:export01/at/jnchangtai.net
