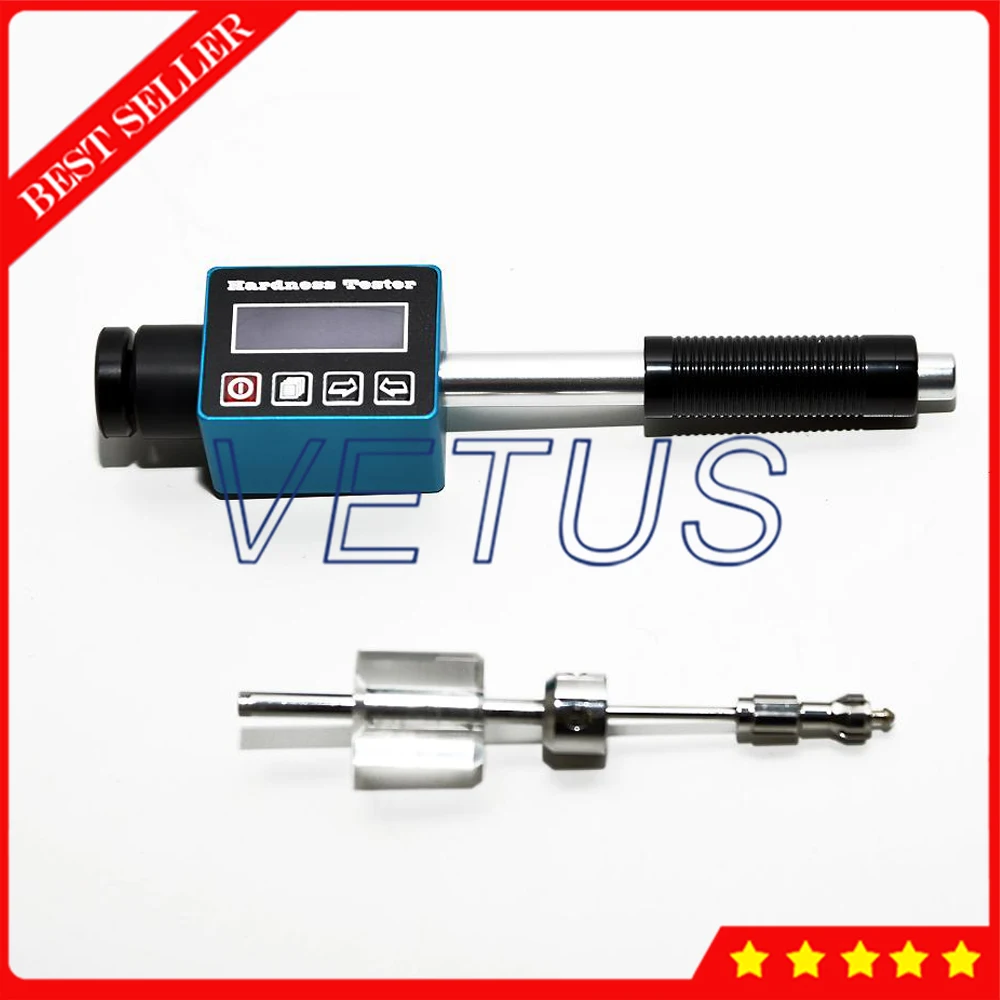

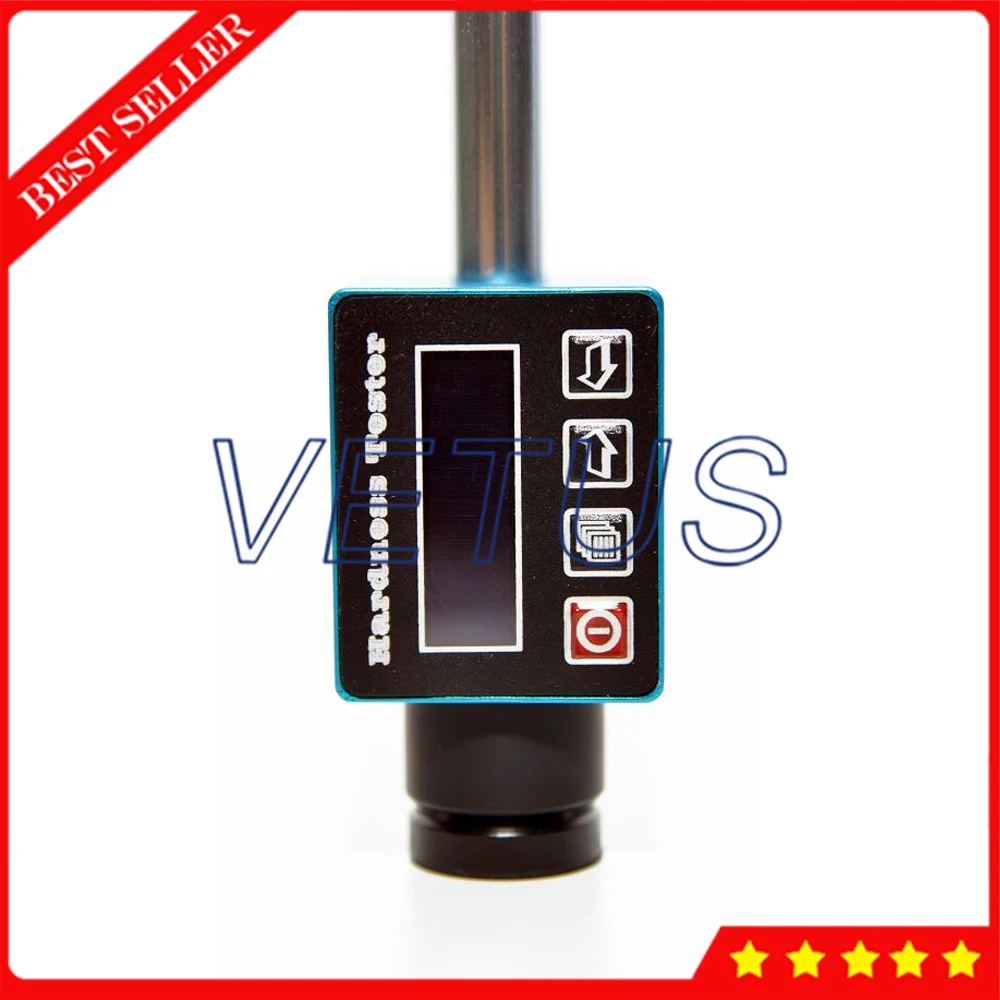

Digital Pen Type steel Leeb Hardness Tester YH100D For metallic materials metal hardness Measuring Instrument

Introdution:

Model YH100D portable hardness tester can directly measure different types of hardness value including (HRC, HRB, HRA), Leeb (HL), Brinell (HB), Vickers (HV),and Shaw (HS). In accord with international standards it's also can meet the "Leeb hardness tester technical conditions ZBN7l 010-90" and the "metal in the hardness test method GB / T 17394-1998" Leeb hardness standard JB/ T9378-2001 standards which are issued by the Ministry of Machinery Industry and National Quality and Technical Supervision.

With low-power design and high-performance Li batteries which can achieve ultra-long standby time work it has more compact and flexible design increases user flexibility.



Features:

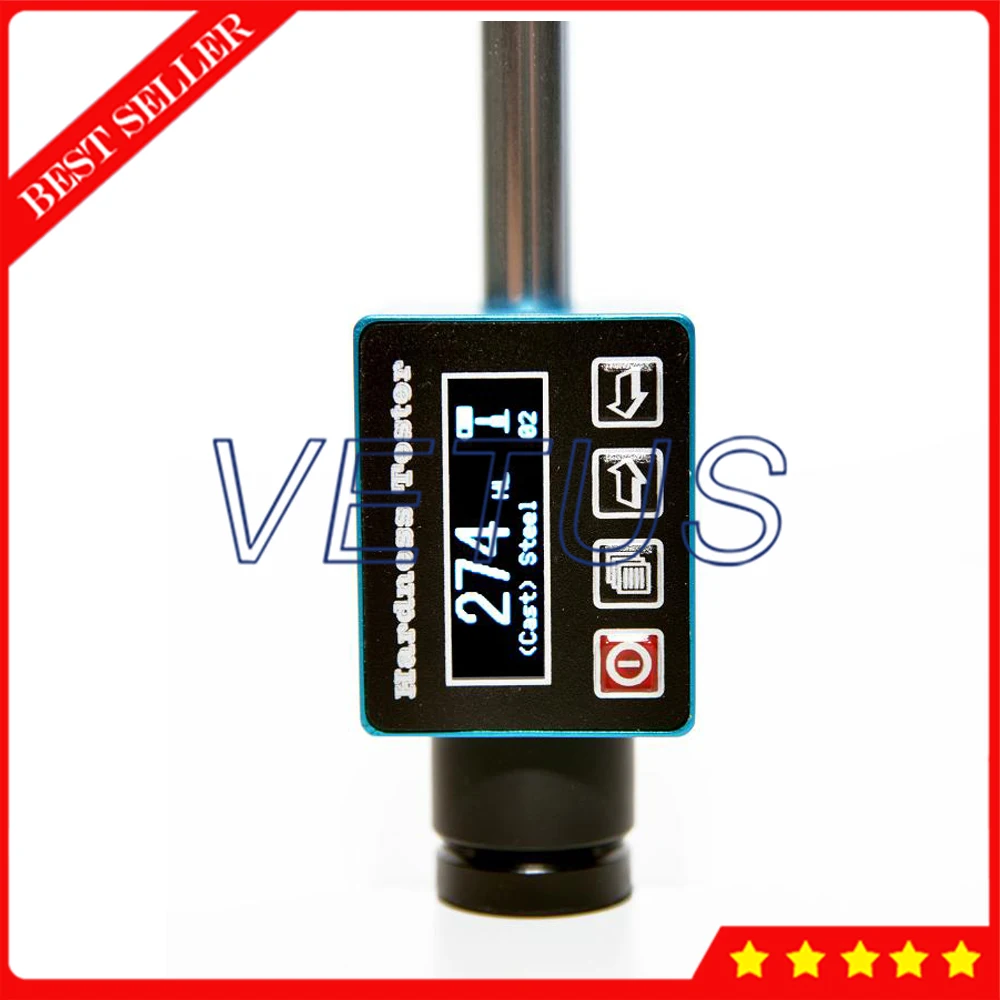

  All English menu display is easy to manipulate. OLED display for better use in any environments.

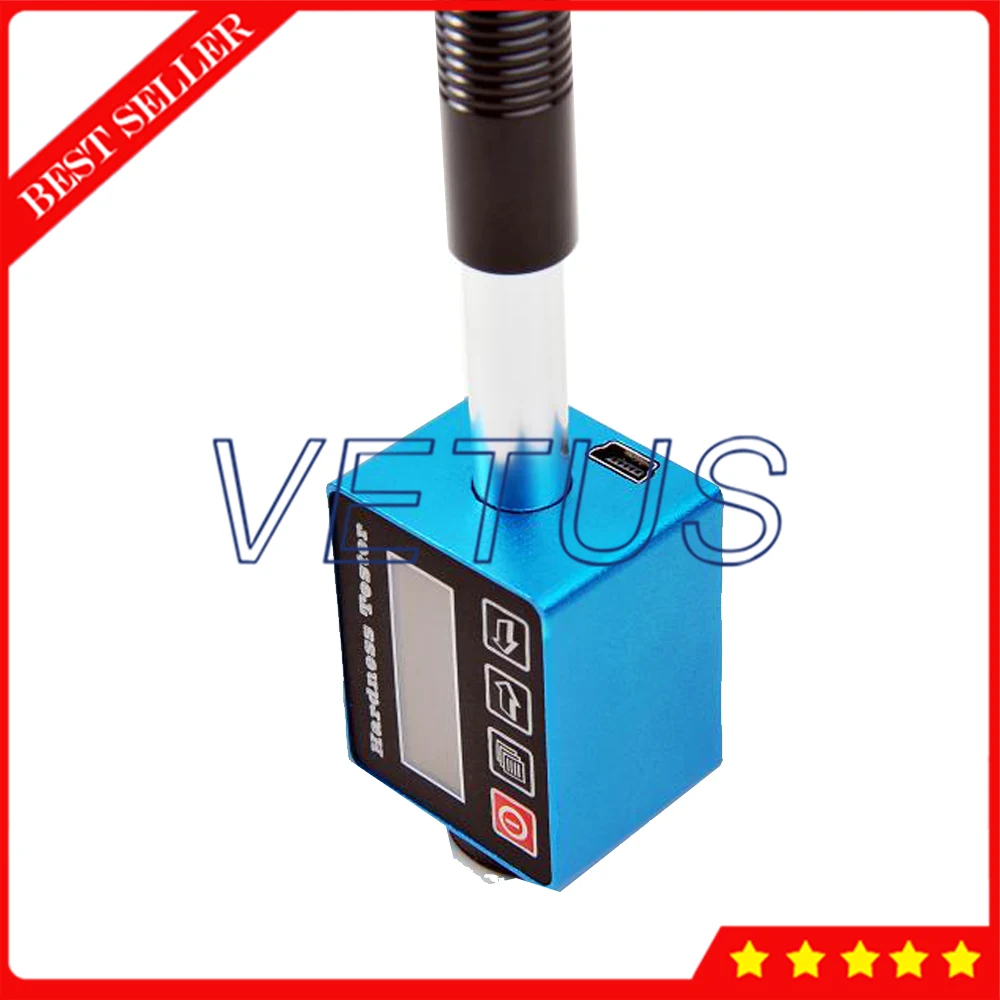

  With Micro USB communication port.

  Large capacity memory can store 48~350 groups (impact average times32~1) of information including single measured value, mean value, testing date, impact direction, impact times, material and      hardness scale etc.

  Conversion to tensile strength (U.T.S).

  For all metallic materials.

  Provide software calibration function.

  High-performance Li battery with charging circuit providing extra-long working time and standby time. Battery sign, display the current remaining capacity.

  PC Software can be equipped to meet the higher demands in quality assurance, activities and management.

Technical Specification:

  Measuring range: 170~960 HLD

  Measuring direction: 360°

  Hardness Scale: HL, HRC, HRB, HRA, HV, HB, HS

  Display: dot matrix LCD 128×32 dots

  Data storage: 350 groups maxim, relative to impact times 32~1

  Charging power supply: 5VDC，220VAC

  Charging time: 1.5~2h

  Battery: 3.7V，Li（200mAh）

  Using temperature: 0 ~ 40℃

  Storage temperature: -25 ~ 70℃

  Continuous working period: 40h

  Communication port: Micro USB

  Outline dimensions: 145.5 × 32 × 26mm

  Wight: about 160g

Material	Hardness test method		Impact device type
			D
Steel and cast steel	Rockwell	HRC	17.9～68.5
		HRB	59.6～99.6
		HRA	59.1～85.8
	Brinell	HB	127～651
	Vickers	HV	83～976
	Shore	HS	32.2～99.5
Hammered steel	Brinell	HB	143～650
Cold work tool steel	Rockwell	HRC	20.4～67.1
	Vickers	HV	80～898
Stainless steel	Rockwell	HRB	46.5～101.7
	Brinell	HB	85～655
	Vickers	HV	85～802
Gray cast iron	Rockwell	HRC
	Brinell	HB	93～334
	Vickers	HV
Nodular cast iron	Rockwell	HRC
	Brinell	HB	131～387
	Vickers	HV
Cast aluminum alloys	Brinell	HB	19～164
	Rockwell	HRB	23.8～84.6
Brass(copper-zinc alloys)	Brinell	HB	40～173
	Rockwell	HRB	13.5～95.3
Bronze (copper-aluminum/copper-tin alloys)	Brinell	HB	60～290
Wrought copper alloys	Brinell	HB	45～315

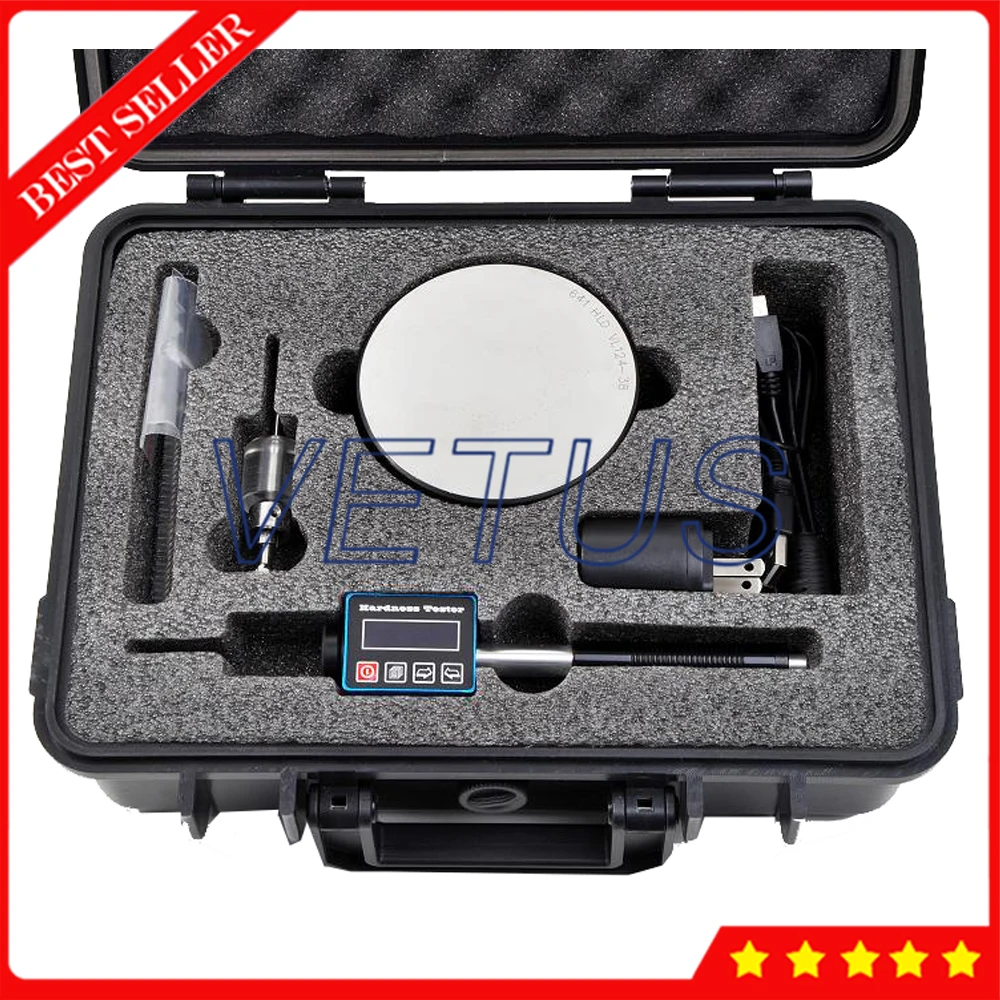

Configuration

	NO.	Item	Quantity
Standard Configuration	1	Main uni.	1
	2	Small support ring	1
	3	Cleaning brush (I)	1

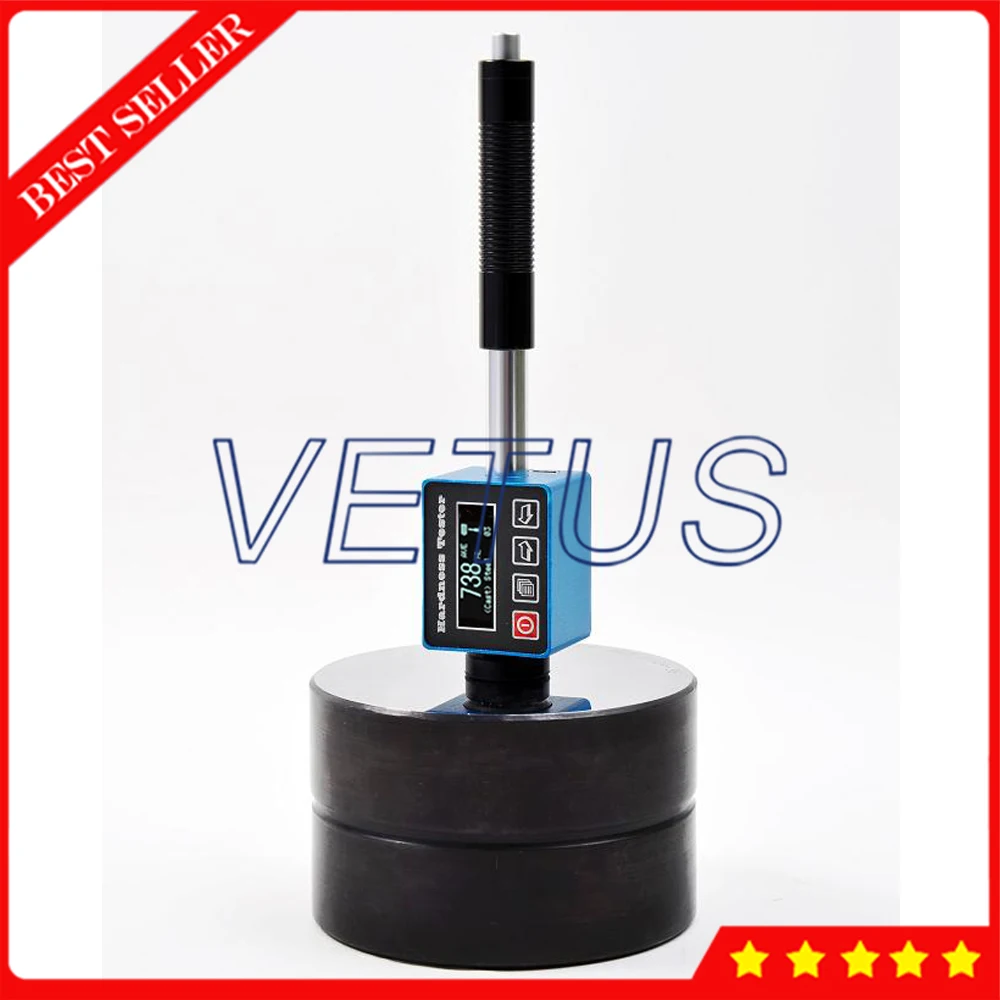

	4	High value test block	1
	5	Charger	1
	6	Communication cable	1
	7	Software	1
Optional Configuration	8	Other type of support rings
	9	High, medium, and low HLD value test block



---

---
