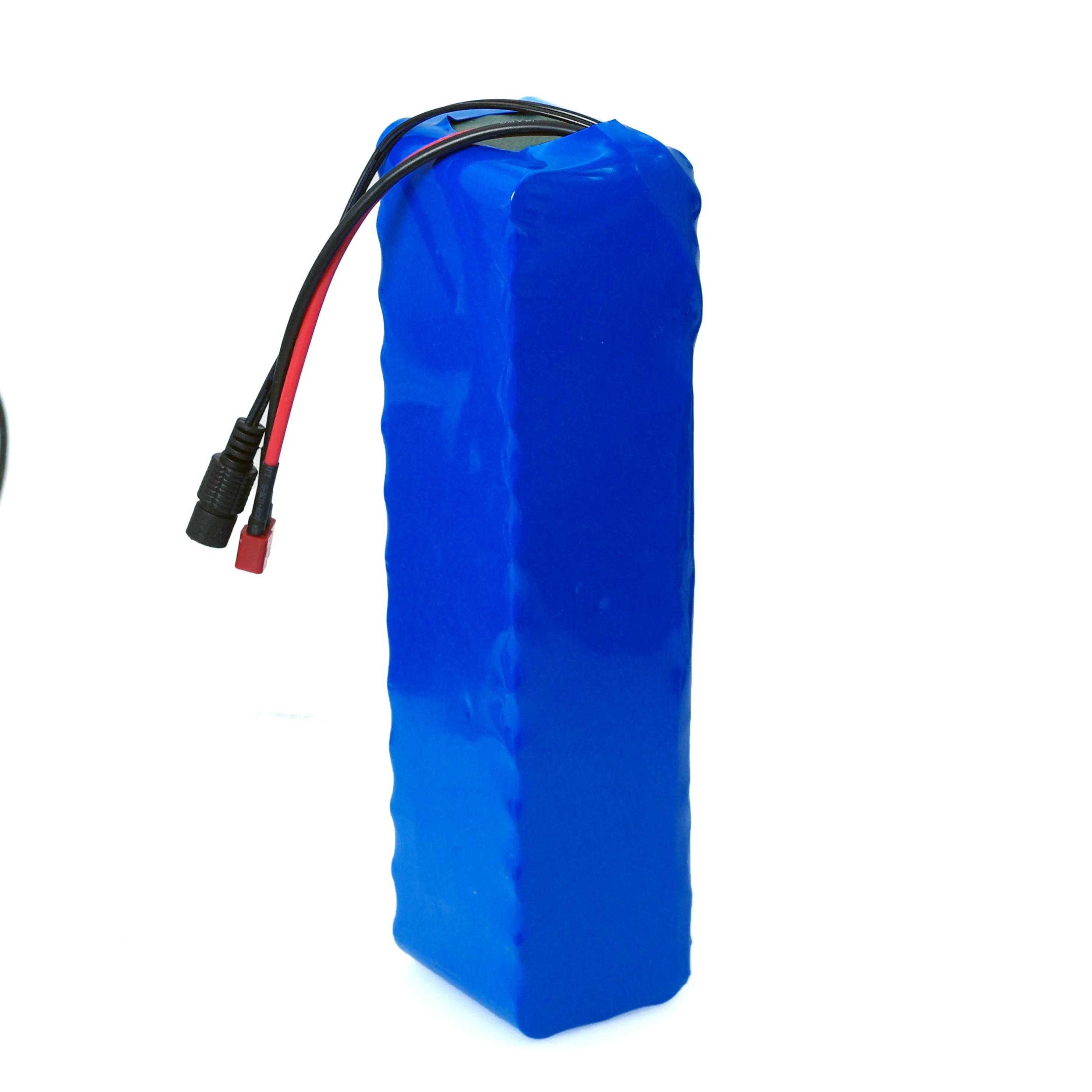

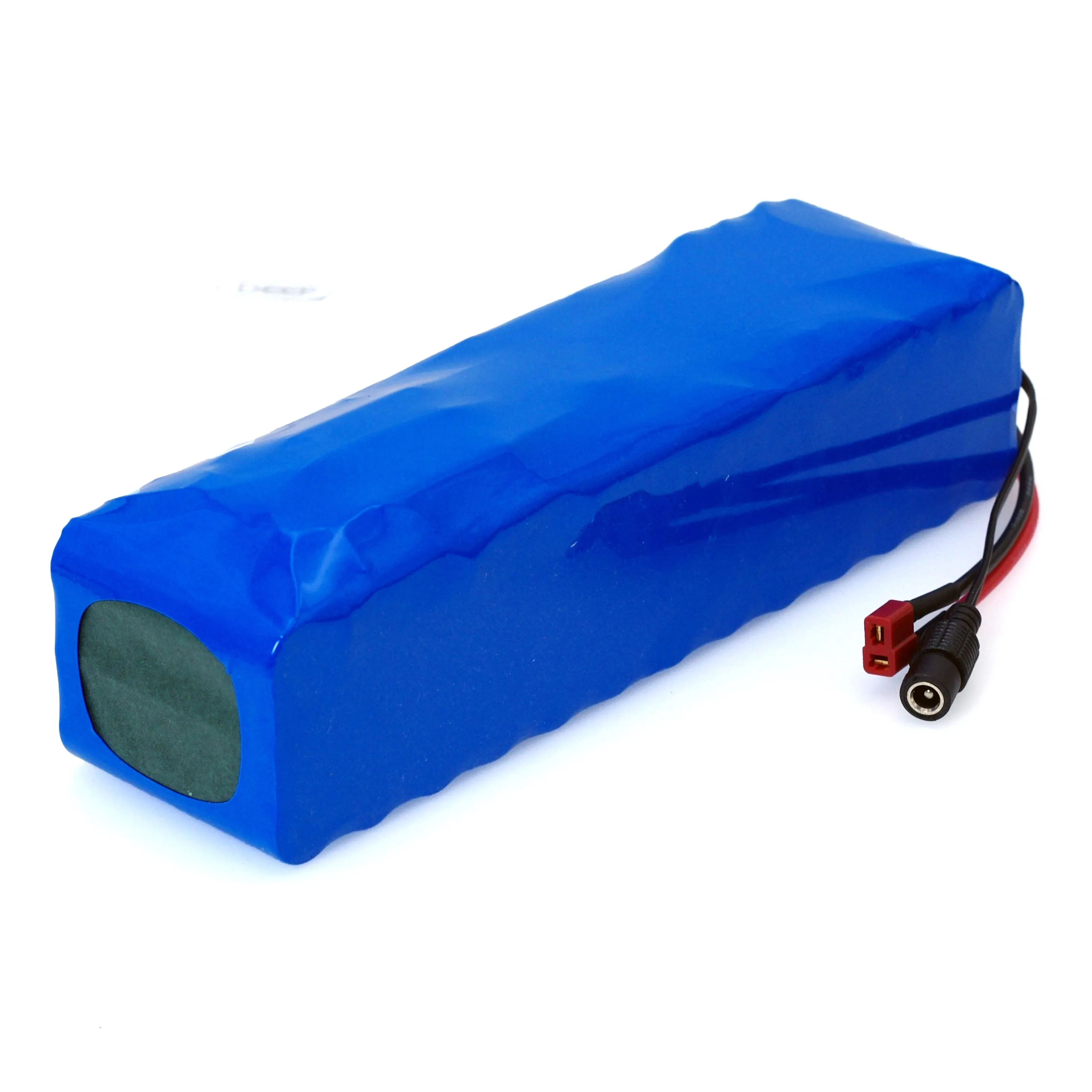

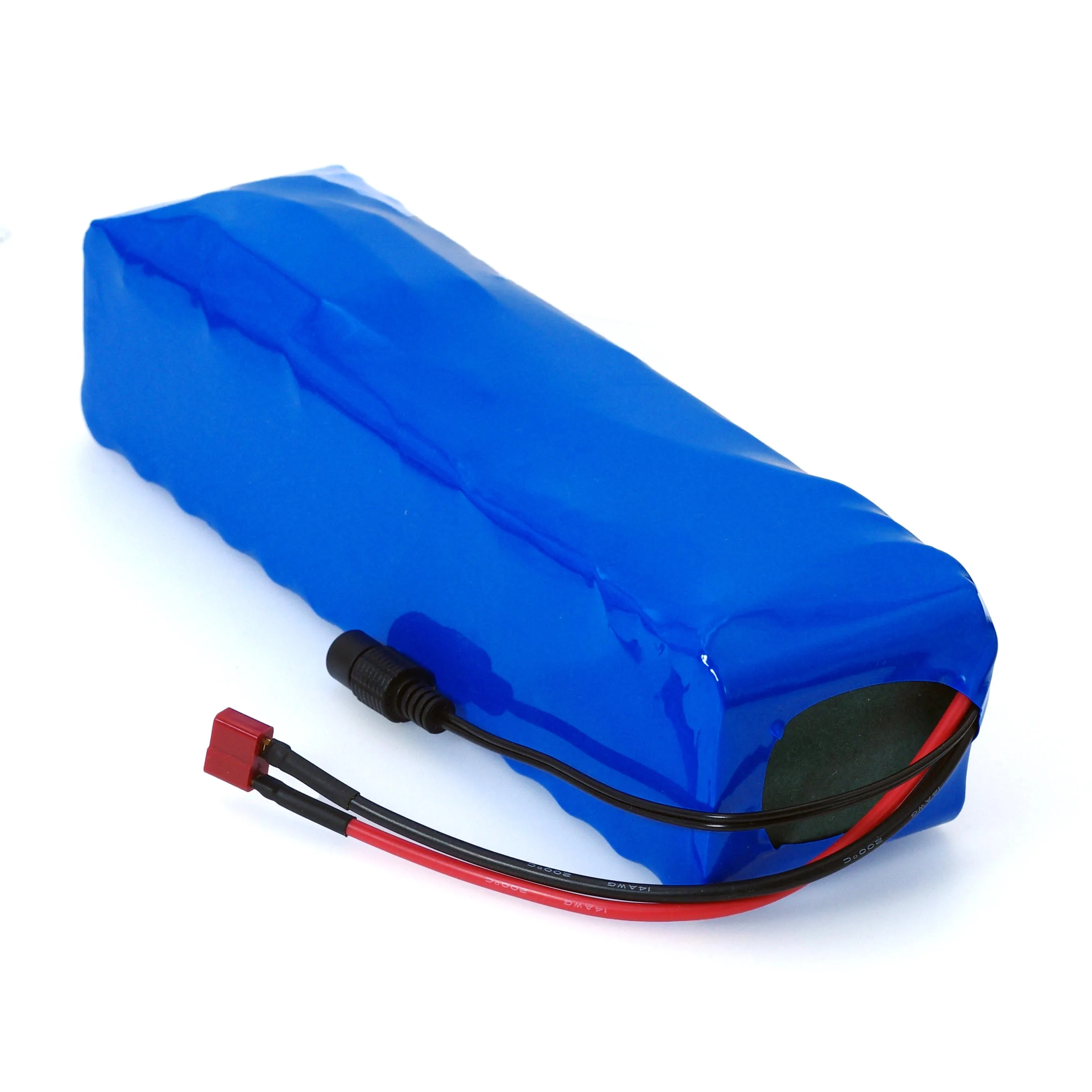

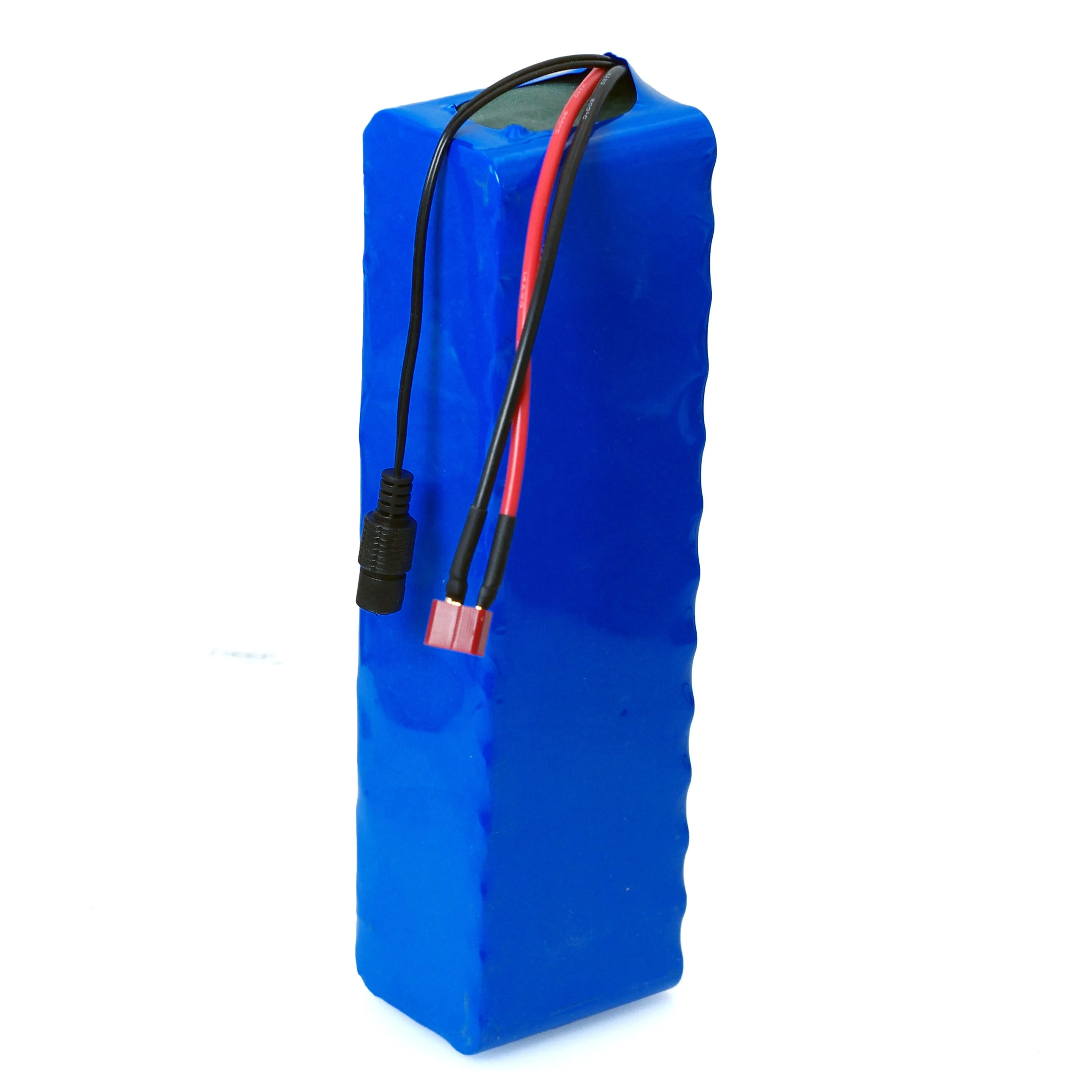

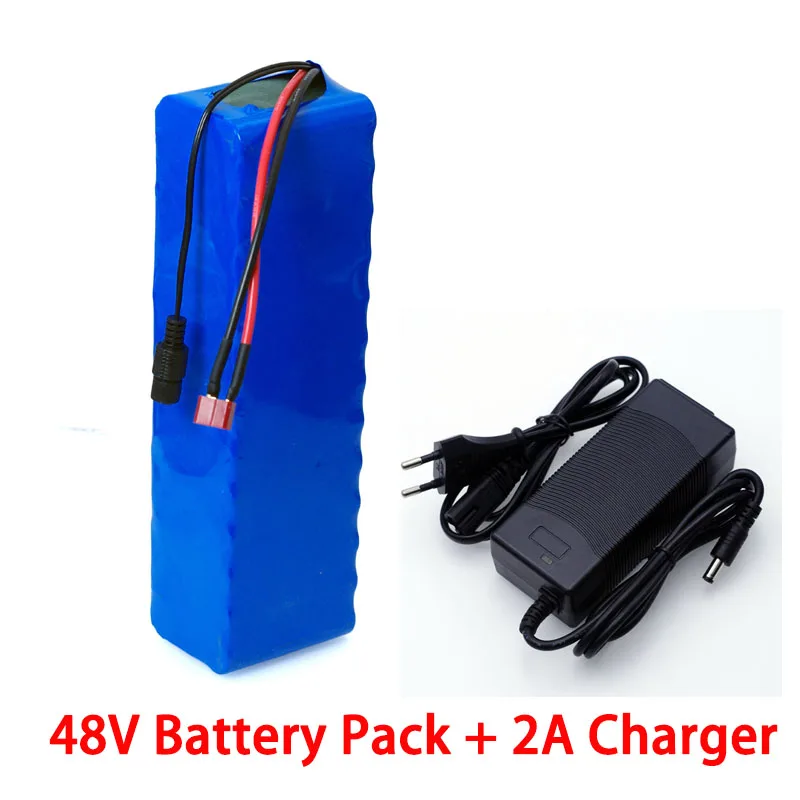

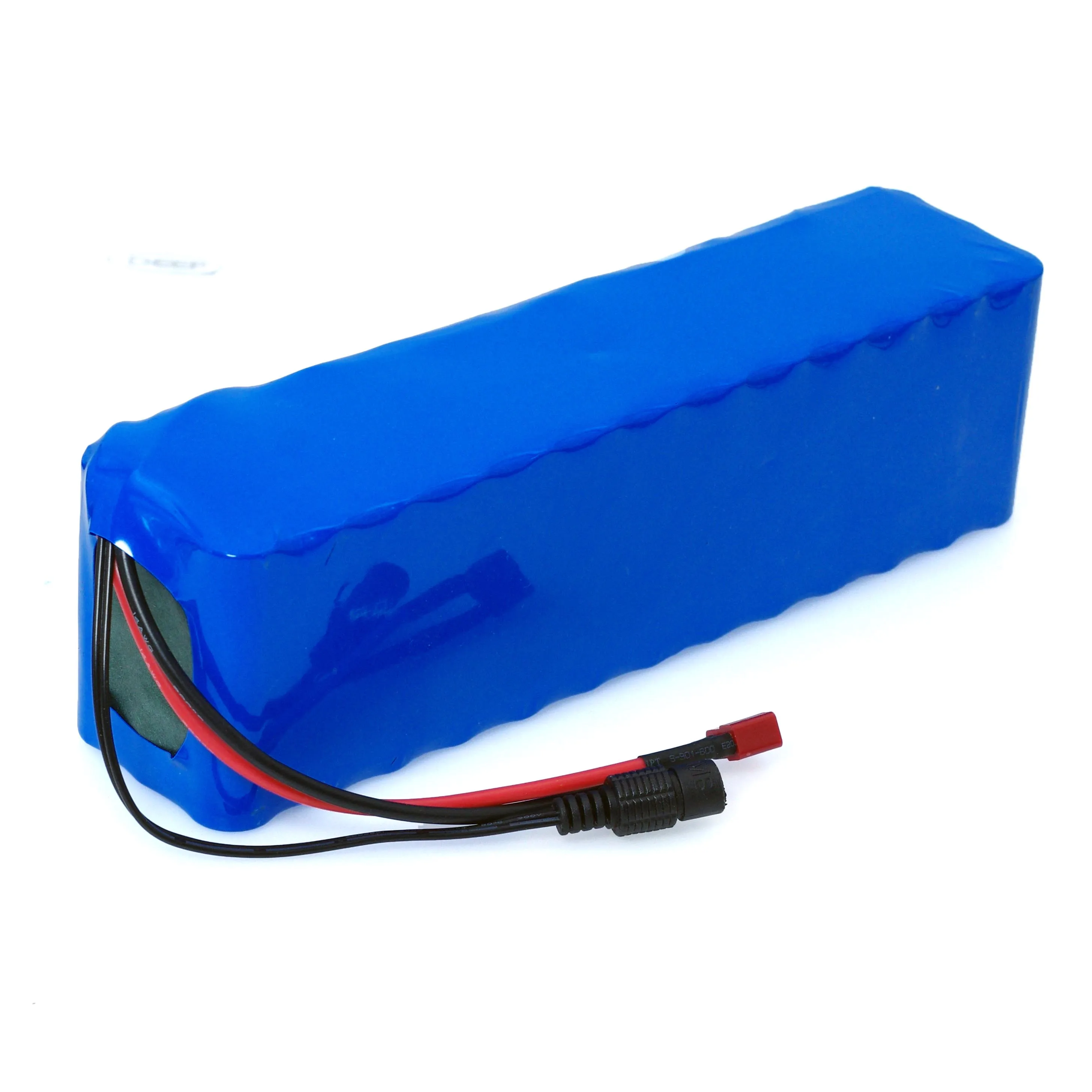

Аккумулятор LiitoKala для электрического велосипеда или скутера на 48В 10Ач или 12Ач с литиево-ионными батареями на 500Вт или 750Вт, комплектуемый с 20А BMS, зарядным устройством на 54,6В 2А.

Battery Model

48v 10ah/12ah

Nominal Voltage (V)

48v

Nominal Capacity (AH)

10ah/12ah

Source Resistance (mΩ)

about 40

Cell Specification

10ah-3.7V 2.6A/12ah-3.7V 3AH

Cell Combination

4-parallel  13-series

Cell Size

18650

Cell Quantity (parallel*series)

52pcs

Discharge Cutoff Voltage (V)

36.4+/- 1V

Charge Cutoff Voltage (V)

54.6v

Rated Discharge Current (A)

20A

instantaneous Maximum Discharge Current (A)

60A

Maximum Continuous Discharge Current (A)

20A

Maximum Continuous Charge Current (A)

5A

Charge Mode

CC-CV

Standard Charge Current (A)

2A

Charge Time under Standard Charge Current

5hours

Fast Charge Current (A)

5A

Charge Time under Fast Charge Current

2hours

Charge Temperature Range

-20-55°C

Cell Size (L*W*T )

250*65*70mm

Battery Weight

About2.4KG

Battery Power

750W

Feature:

1. Cells - A grade cells to make sure batteries in high and full capacity

2. Protection - Dual IC chips, that can anti-short circuit, anti-over charger,

anti-over current, anti-overload

3. Compose Type : Injection Technology to make battery more stable.

4. Certifications : CE,UL,FCC, RoHS, ISO9001

5.  Long life cycle, No memory, environment friendly.
