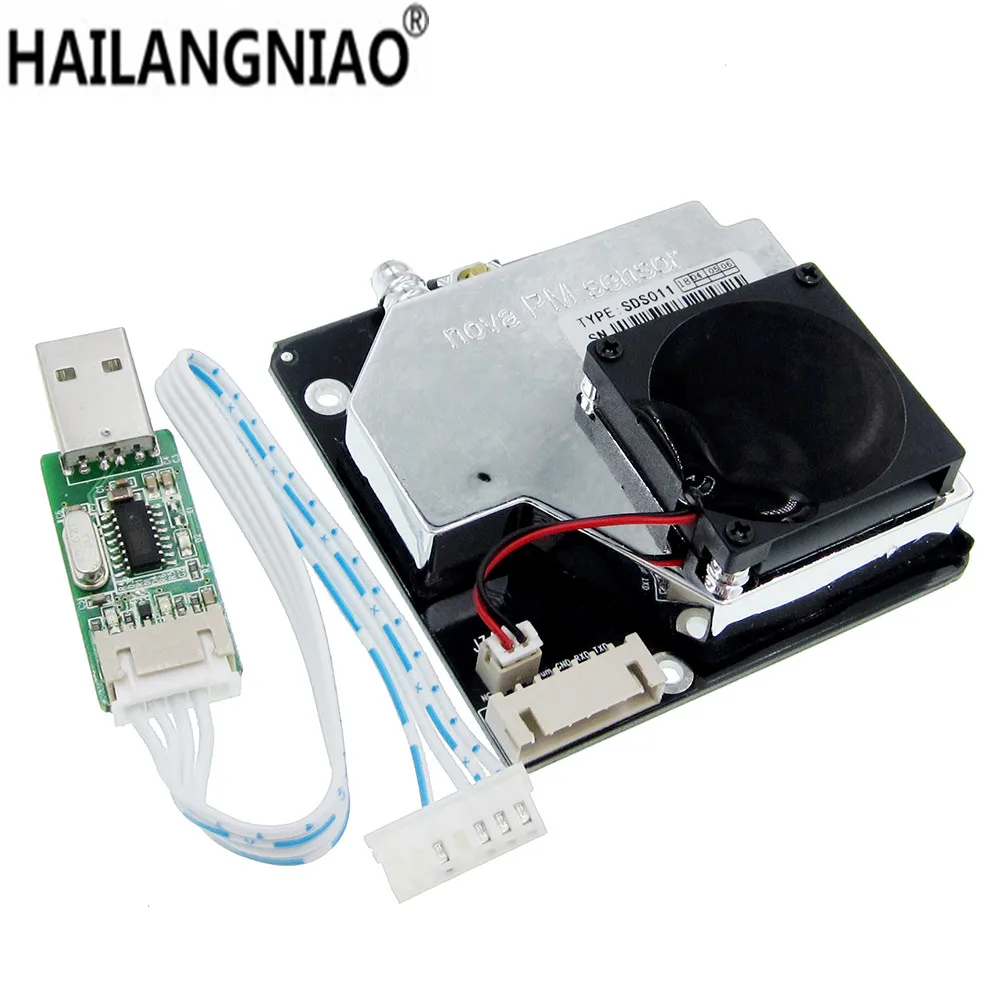

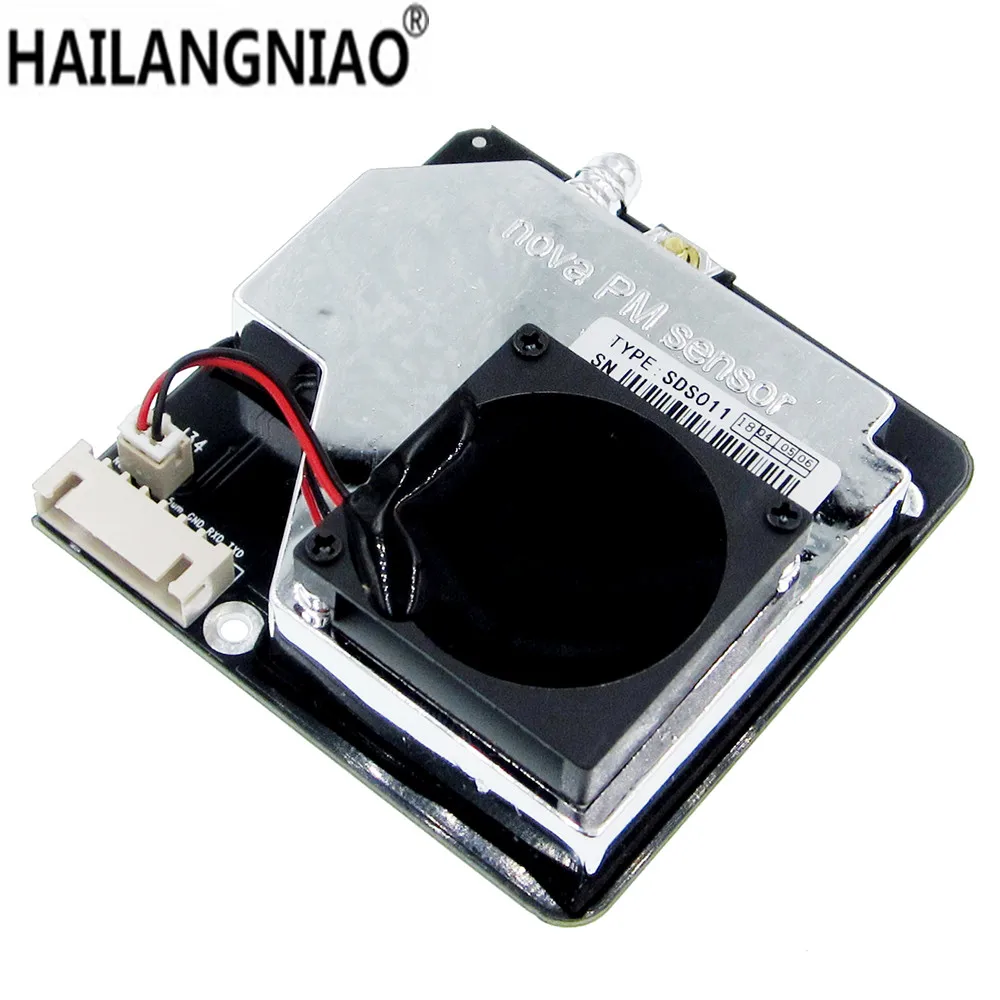

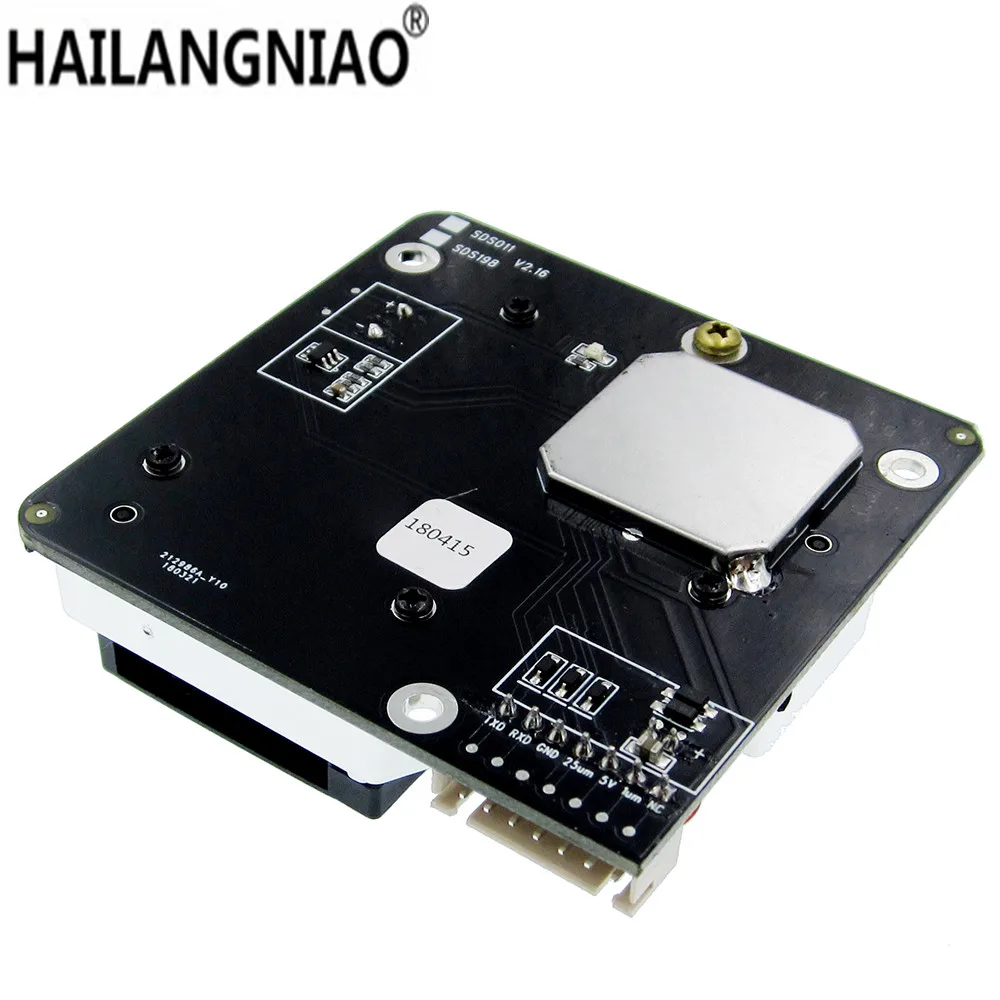

10PCS/LOT Nova PM sensor SDS011 High precision laser pm2.5 air quality detection module Super dust sensors | Электроника

Outline

SDS011 detection principle using a laser , can be obtained in the air suspended particulate matter concentration of 0.3 to 10 microns , stable and reliable data ; built-in fan , digital output , high integration

Feature

l data accuracy : laser detection , stability , consistency, good ;

l Quick response : data update frequency of 1Hz;

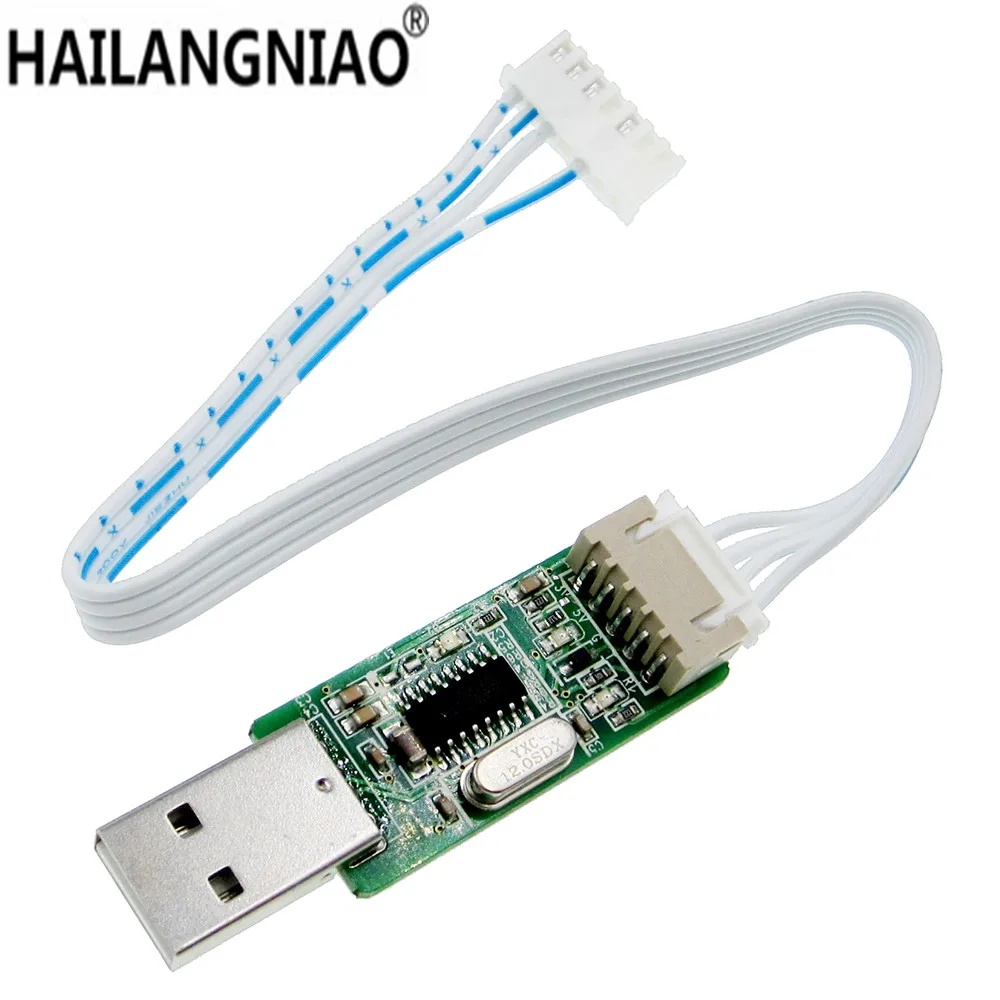

l easy integration : serial output ( or IO port output can be customized ) , comes with fan ;

l High resolution : Minimum resolution particle diameter of 0.3 microns ;

l standard certification : products have passed CE / FCC / RoHS certification.

Scope

PM2.5 detector, purifier.

working principle

Laser scattering theory : When laser irradiation through the particle detection position will produce a weak scattering of light in a specific direction of the light scattering wave and particle diameter about , you can get different grain through the waveform classification statistics and conversion formula different size number concentration of particle diameter in real time , in accordance with the calibration methods with the official unit of uniform concentration .
