Высококачественные криогенные баллоны Dewar для LOX LIN Lar LNG LCo2 |

---

Notices:

1. Please purchase goods before contact me,because a lot of goods weight limit,we can't delivery by sea shipping CIF or FOB delivery trading way.we provide wholesale services,Please before decided to buy goods,be sure to contact me.

2. If you choose "seller's shipping method'',we will arrange the shipment by sea and delivery it to your nearest seaport.

3. We also have other larger and Higher pressure Cryogenic liquid cylinder 175L 195L  210L 410L 455L, please contact us if you need them.

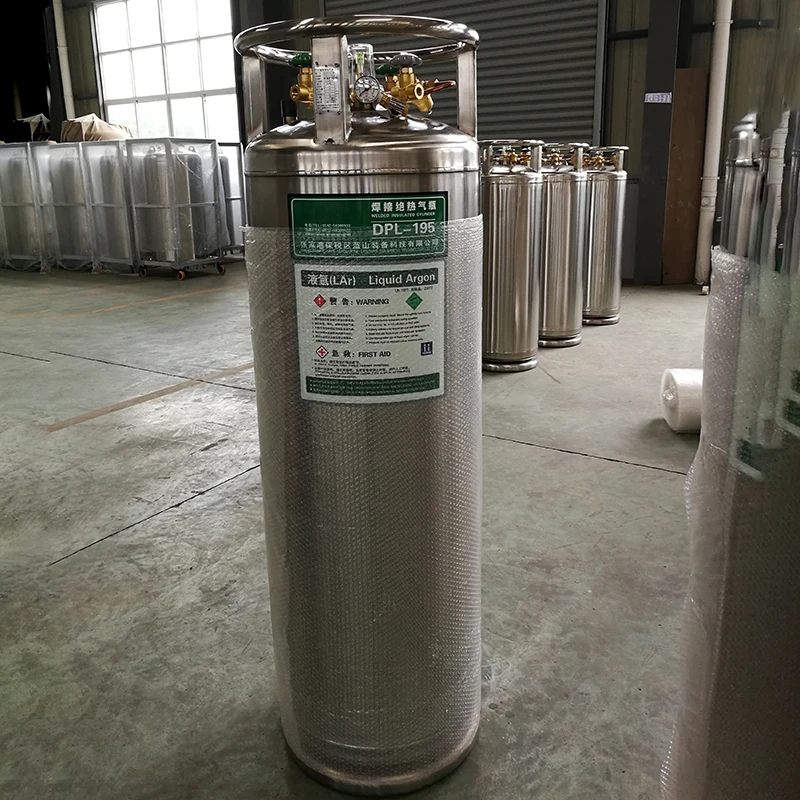

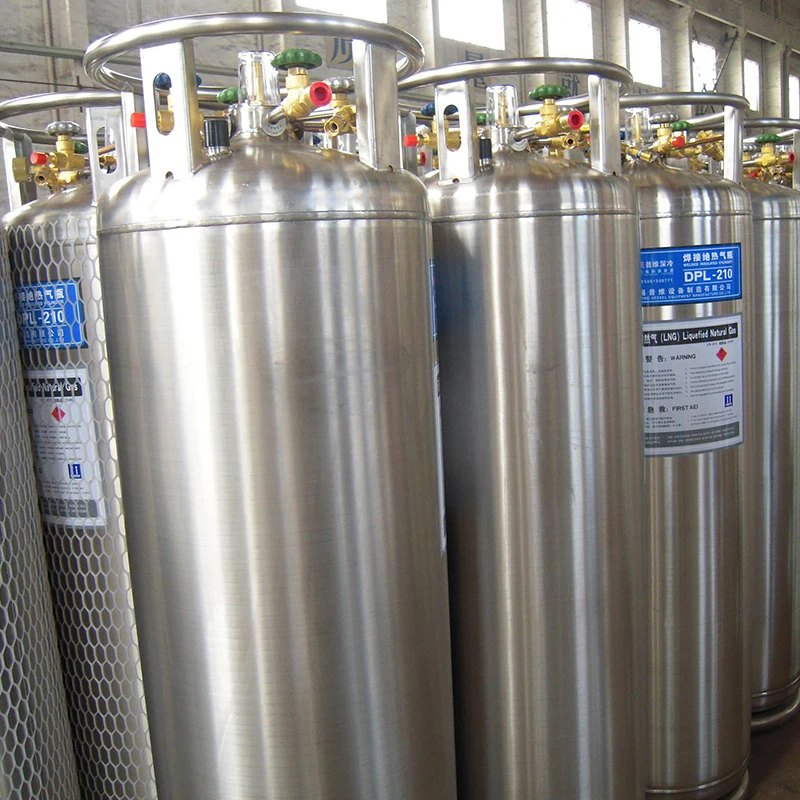

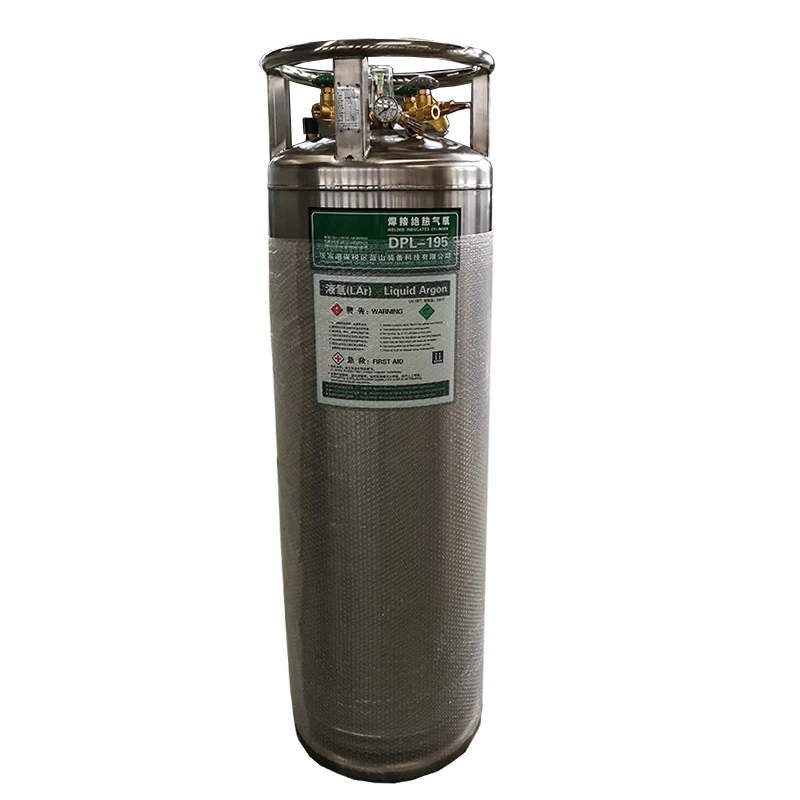

The crogenic liquid cylinders we produced adopted the advanced techniques and the whole production process is under the strict quality-guarantee control systerm. It can be applied to store, transport the cryogenic liquefied gas products(liquefied oxygen, liquid argon, liquid nitrogen, liquid natural gas, liquid CO2, etc),and it can automatically provide continous gases.

Features:

 1. Mainly used in storage and transportation of liquid oxygen, liquid nitrogen, liquid argon, and liquefied natural gas

 2. Adopted high multi-layer insulation method to ensure the low evaporation rate.

 3. Inner vaporizer provides a 10Nm3/h stable continuous gas.

 4. Solar installation use in the priority of gas-pressure and gas space.

 5. Adopt the international CGA standard tie-in and all the valves installed imported from USA(Rego)

 6. Unique design of damping ring meets the needs of frequent transportation.

 7. Suitable for electronics, research, chemical industry, welding, and LNG supply industries.

Type	Nominal/Effective Capacity(L)	WP(Mpa)	Dimension	Weight(kg)	Max Filling Weight(kg)				Certification
					LOX	LIN	LAR	LCO2
DPL450-175-1.37	175/164	1.37	505*1530	118	170	120	208	--	DOT&GOST
DPL450-196-1.37	196/185	1.37	505*1655	127	191	135	233	--
DPL450-210-1.37	210/197	1.37	505*1740	132	205	145	250	--
DPL450-175-2.3	175/164	2.3	505*1530	133	170	120	208	164
DPL450-196-2.3	196/185	2.3	505*1655	145	191	135	233	185
DPL450-210-2.3	210/197	2.3	505*1740	151	205	145	250	197
DPL450-210-2.88	210/197	2.88	505*1740	175	205	145	250	197	TPED&GOST
DPL500-180-2.3	180/169	2.3	505*1353	140	175	122	215	169
DPL500-220-2.3	220/207	2.3	505*1553	156	214	150	264	207
DPL700-450-2.88	450/427	2.88	505*1605	360	444	310	543	427
DPL580-410-1.6	410/369	1.6	2165*800*980	310	383	267	468	--
DPL650-495-1.6	495/455	1.6	2140*820*1070	320	472	330	578	--
DPL650-495-2.5	495/455	2.5	2140*820*1070	378	472	330	578	455

---

---
