  Before Buy, please check your local frequency first. This product is work for PCS 1900MHz only. If frequency doesn't match, it can not works. Thanks!

Repetidor Cellular Signal Amplificador 1900 MHZ 2g 3g 4g for Chile Mexico ArgentinaCell Phone Signal  Mobile Booster Set

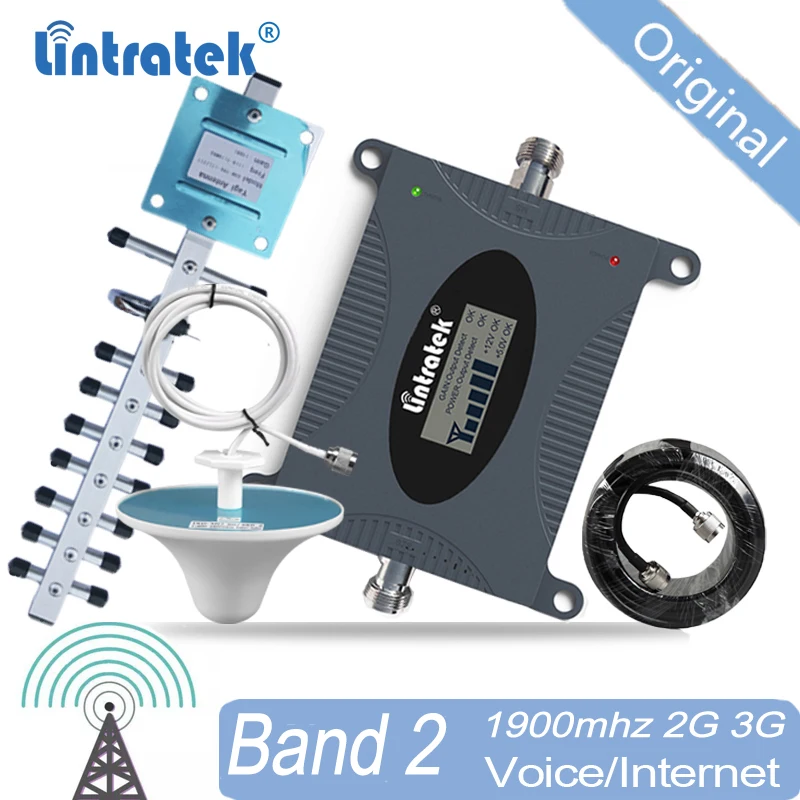

Packing list:



1+PCS 1900MHZ Mobile Phone Signal Booster

1+ DC 5V Power Adapter 1+Outdoor antenna

1+Indoor antenna

1+10m cable

1+Manual

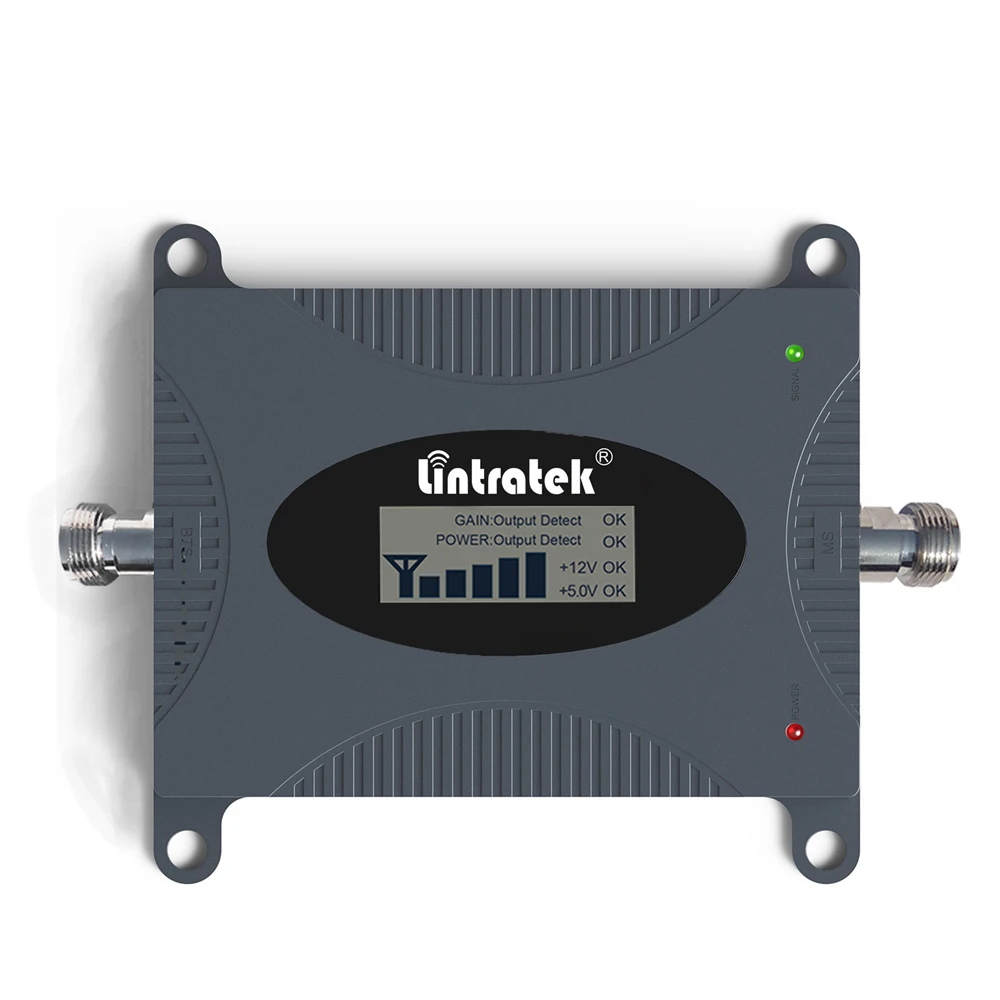

Signal repeater real shot:





Accessories detail:



Outdoor yagi antenna

Gain:13dBi

Frequency: 1710-2170mhz

N female connector









Indoor ceiling  antenna

Gain:3dBi

Frequency: 800-2700mhz

N male conn​ector



​

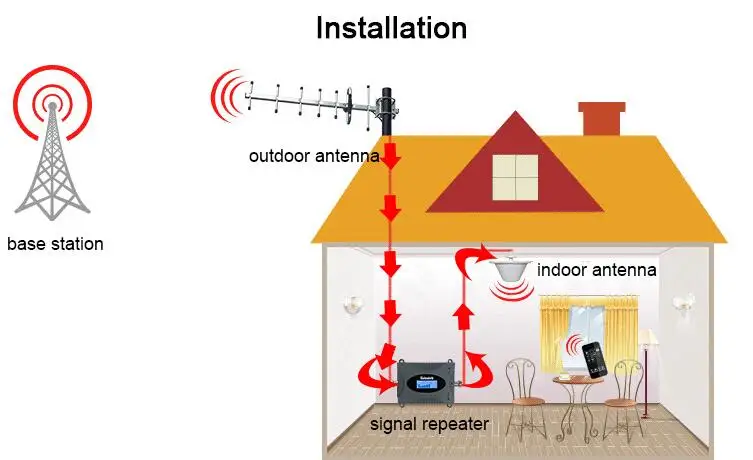

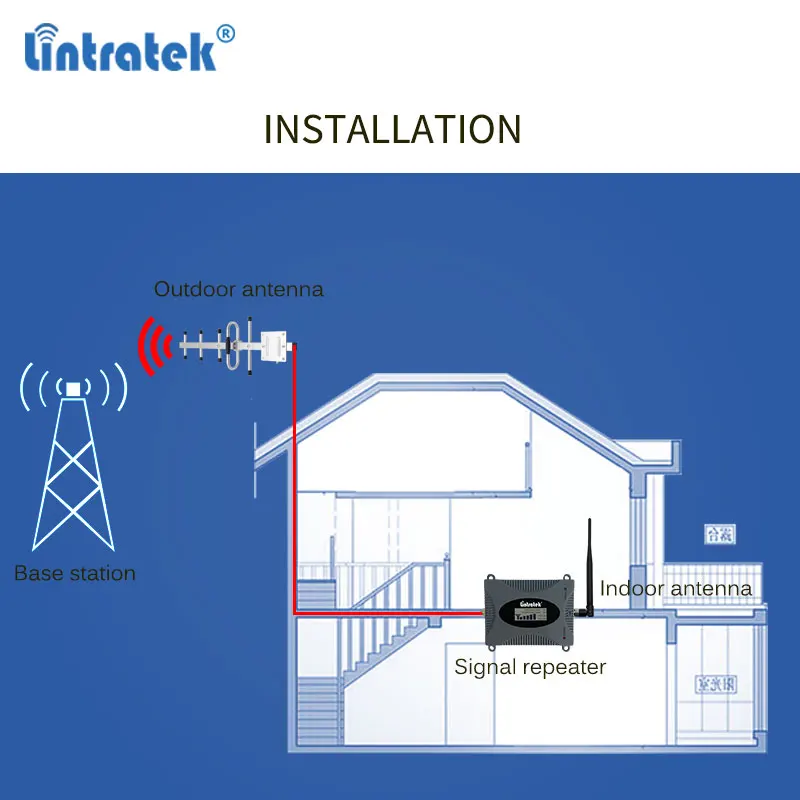

How to install



Step 1: Find a position where could receive great signal,mostly a higher position, like at rooftop. Install outdoor antenna at it and make it toward the base station.   Note: the outdoor antenna shall receive good signal, otherwise the repeater could not work.   Step 2: Connect outdoor antenna to booster at BTS connector with the cable.   Step 3: Connect indoor antenna to booster at MS connector. And it would be better to install it at a height of 2 meters.    Note: The two antennas shall be totally separated by a brick wall with a distance of at least 10 meters. Otherwise, the signal would intervene to each other, showing full of signal on display, but actually the booster doesn't work properly.   Step4: Plug in power supply and done!





Solution for signal problem after installation and technique supporting

1. If the signal still weak after installation, please check if outdoor antenna point to the signal tower direction correctly.

2. If still no signal after installation, please check the repeater power adapter whether connected perfectly? And make sure all the connectors connect well.

3. If strength is not steady as expected , please check if outdoor and indoor antenna was too close, It’s vital that outdoor antenna must far away from the indoor antenna at least 10 meters, it should with a barrier and not in horizontal line while installation .

Please wrap the outdoor connector by waterproof glue, otherwise will reduce signal strength if in humid situation.
