AC 220 V 1 CH 1CH 10A Remote Control Light Switch Relay Output Radio Receiver Module and Waterproof Transmitter Garage Doors |

Please note ：If you don't understand the product set， please go to the following product video links:https:/store/product/433-Mhz-Universal-Wireless-Remote-Control-Switch-AC220V-1CH-Relay-Receiver-Module-and-RF-Transmitter-Electronic/4997407_33020718819.html?spm=2114.12010615.8148356.1.30736e4esaFRHZ

The company receives the remote control board, suitable for anti-theft alarm, remote control electric doors and Windows, signal control, industrial control, the electric control circuit of lifting equipment and so on.Remote control switch module relay contact output independently, is very suitable for direct control of all kinds of load;Products adopt wireless fixed code technology, omnidirectional, noninterference switch.Remote control switch circuit component materials buyers can contrast.

220V 10A 1CH wireless remote control system .

Working Voltage: AC220V
Working Frequency :315MHz/433MHZ
Receiver sensitivity: : -105Db
Working temperature : -10'C - +80'C
Output way : Momentary Toggle Latched Adjustable
Code type : Learning code
Size :35*32*17mm
working/output way:

Through the sub circuit board behind the pad Pin1, Pin2, Pin3, different local to switch working way

1,Momentary  Pin1  2  3  no connection

2,Toggle          Pin1+Pin2

3,Latched        Pin2+Pin3

Toggle----- press one button for one time is ON .press the same button again is OFF

Latched-------press one button is ON , press another button is OFF .

Learning Method:
Press the learning button3 seconds, the indicator light off .then you press any buttons of the remote control to transmite signal .it means studying successfully when the indicator flash 3 times until the indicator light on.

Remove code:
press the learning button about 8 seconds , the indicator turn on to off to on , it means the information that you keep have been removed successfully .

pacote inclued:

A:

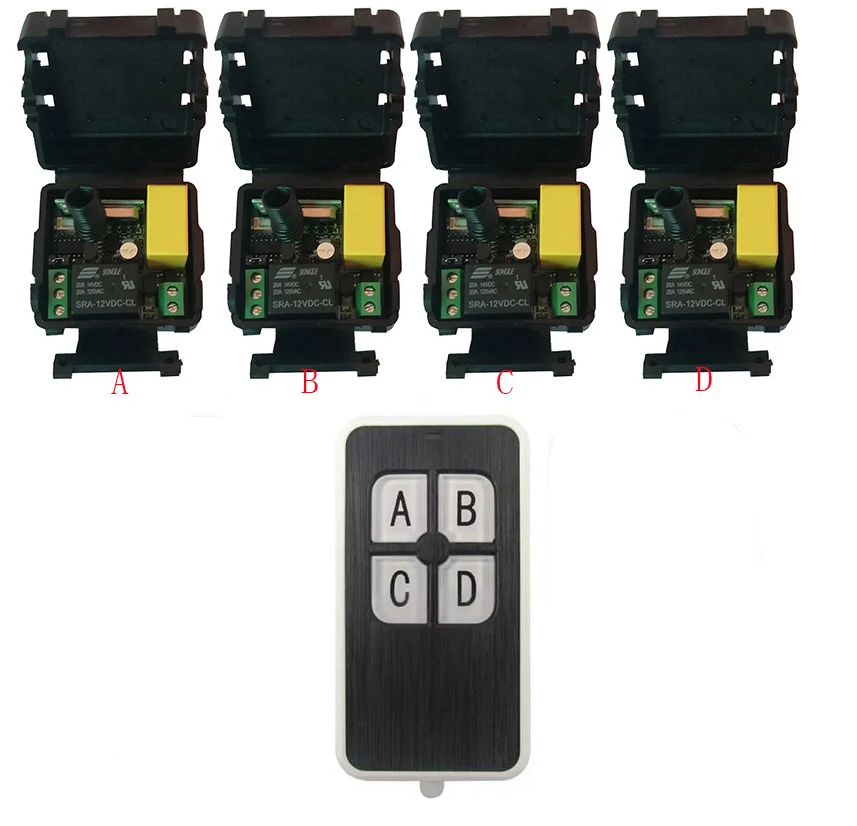

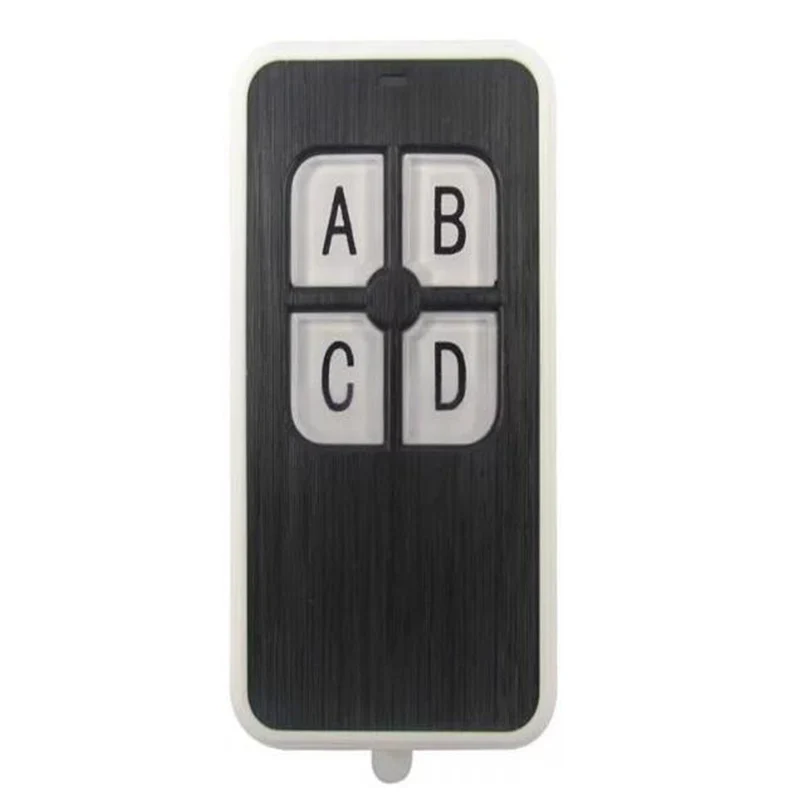

1x Transmitter(with battery)

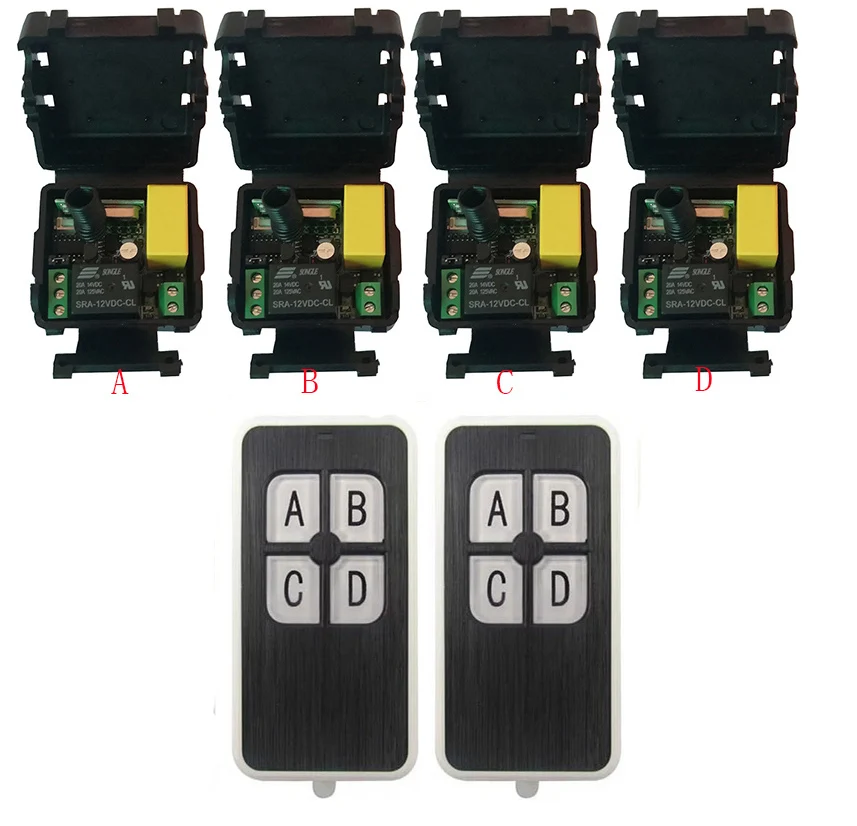

2x Transmitter(with battery)

E:

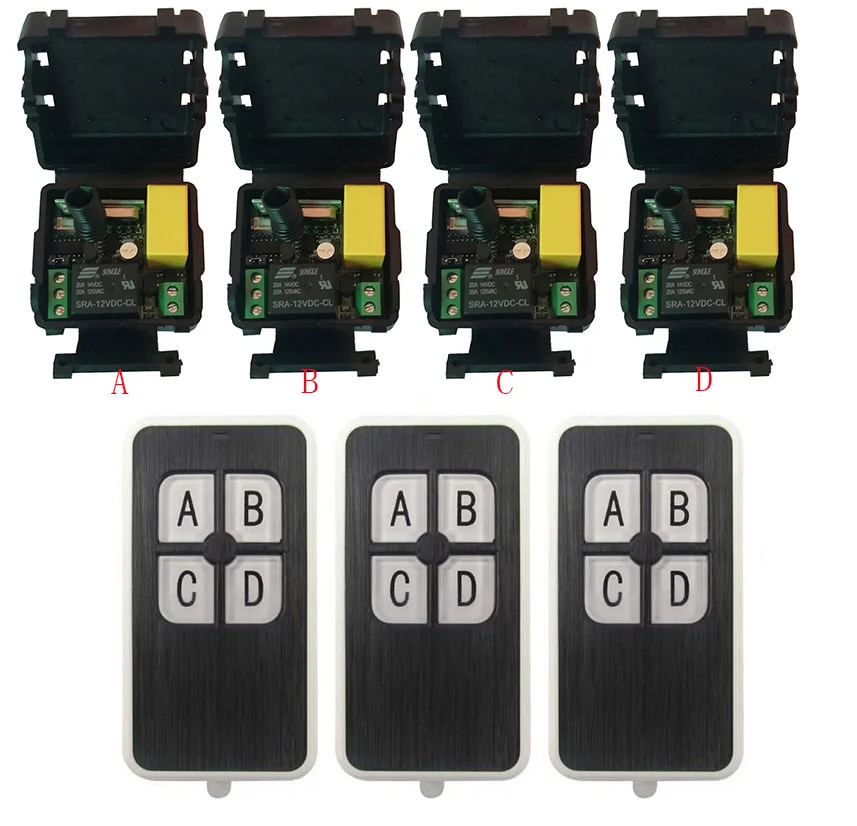

3x Transmitter(with battery)

F:

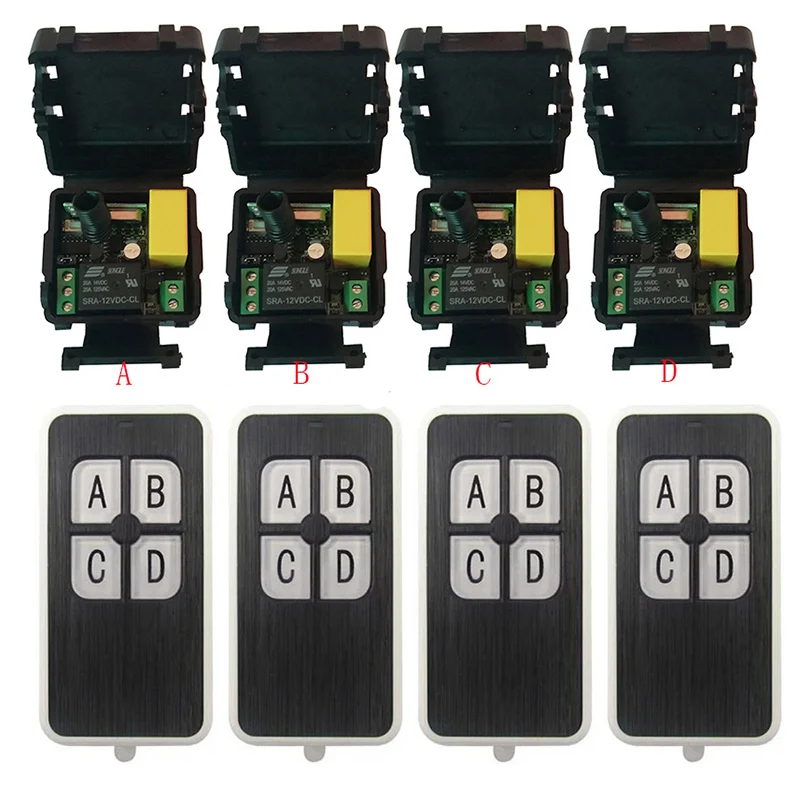

4x Transmitter(with battery)
