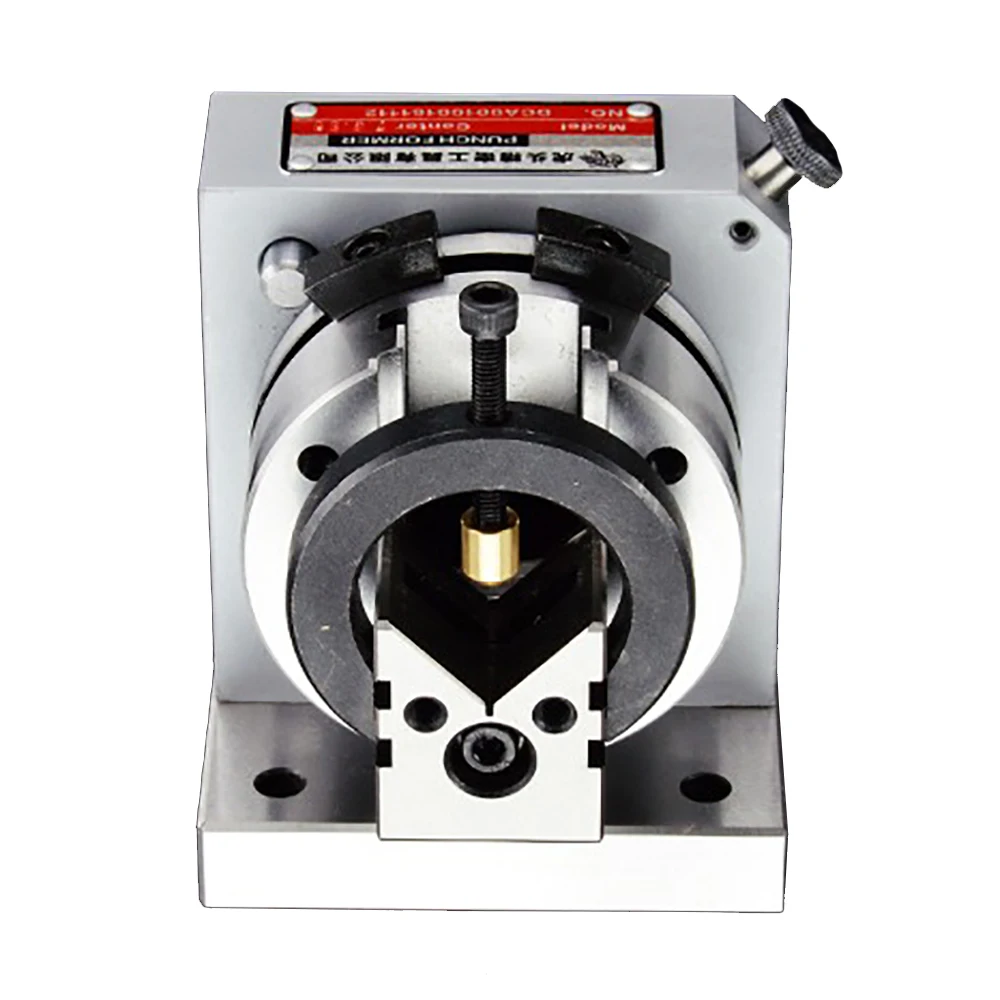

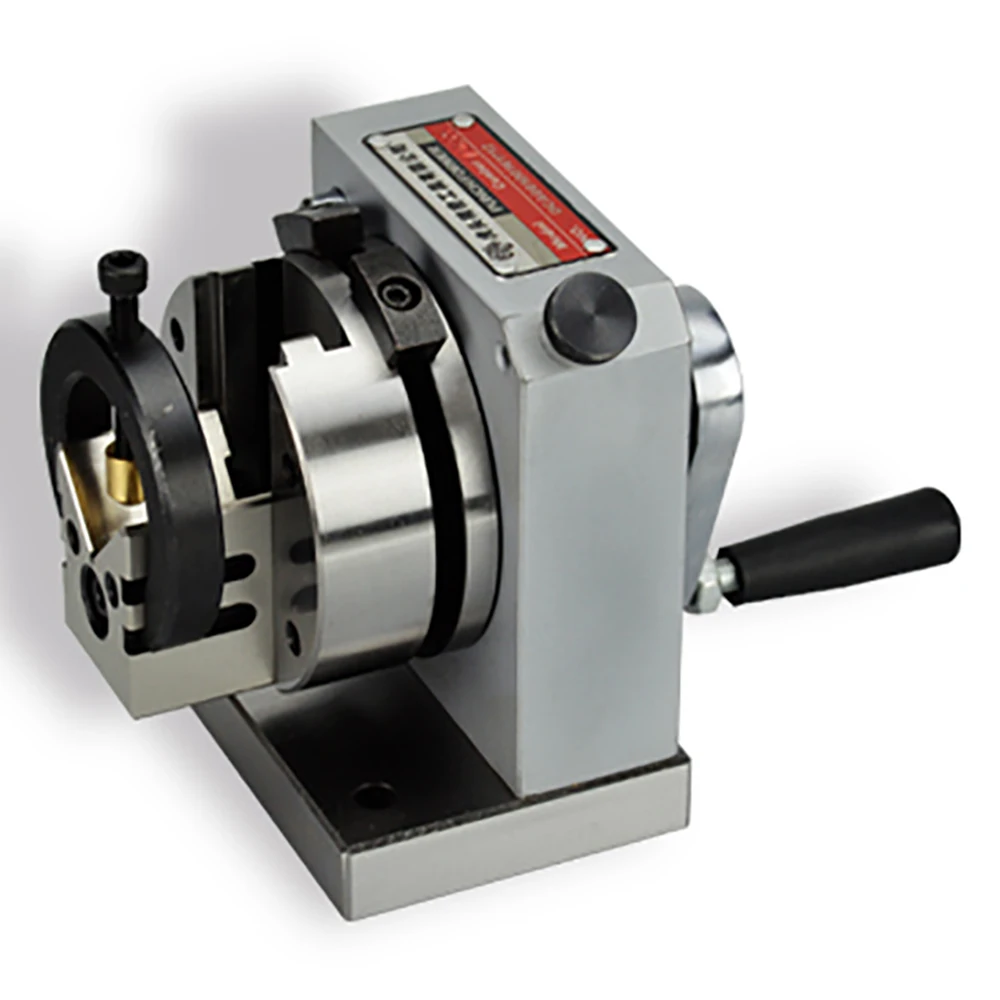

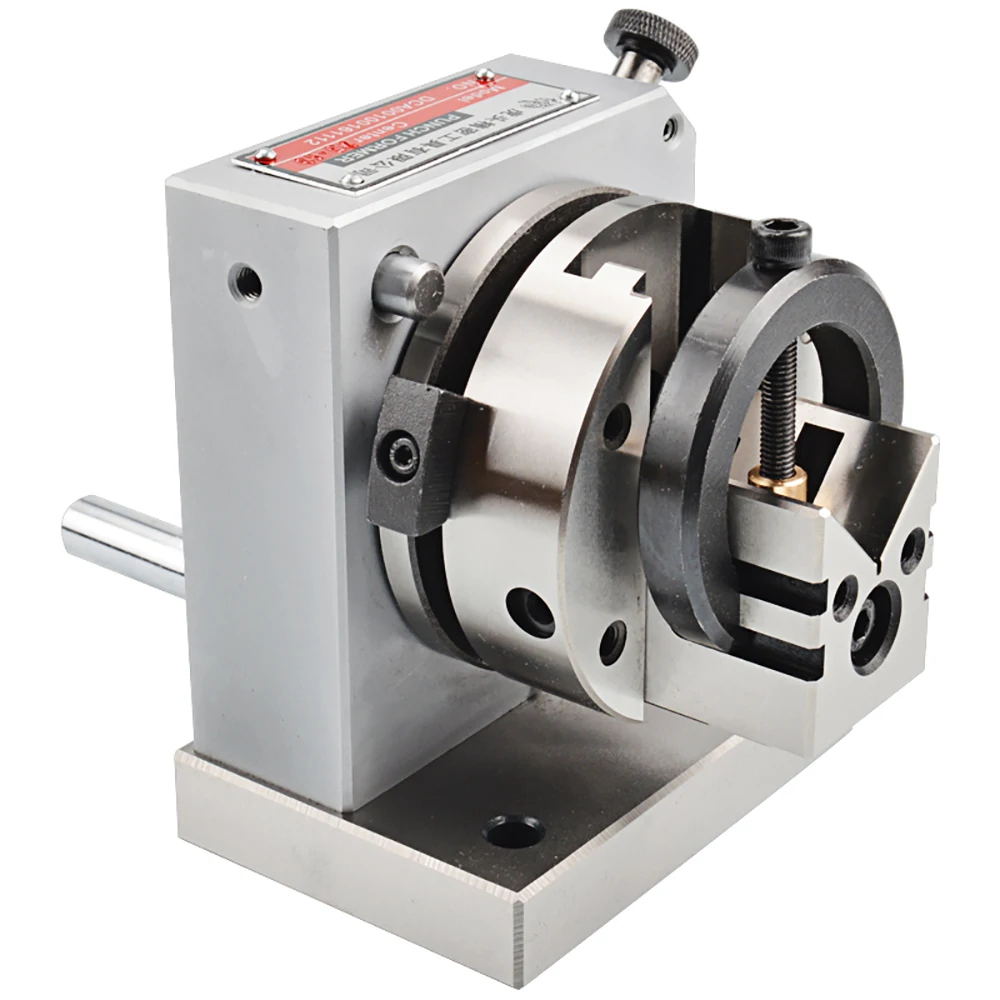

Устройство для формовки штампования в одном направлении PFB с высокоточным шлифовальным станком, с точностью в пределах 0,005 мм.

Brand NameNoneModel NumberLYTypeOtheris_customizedNoUsageCommercial ManufactureMeasurement unitpiece/piecesEach pack127 939,25 ₽27 939,25 ₽Add to CartBuy now27 939,25 ₽loader

Description

Description:

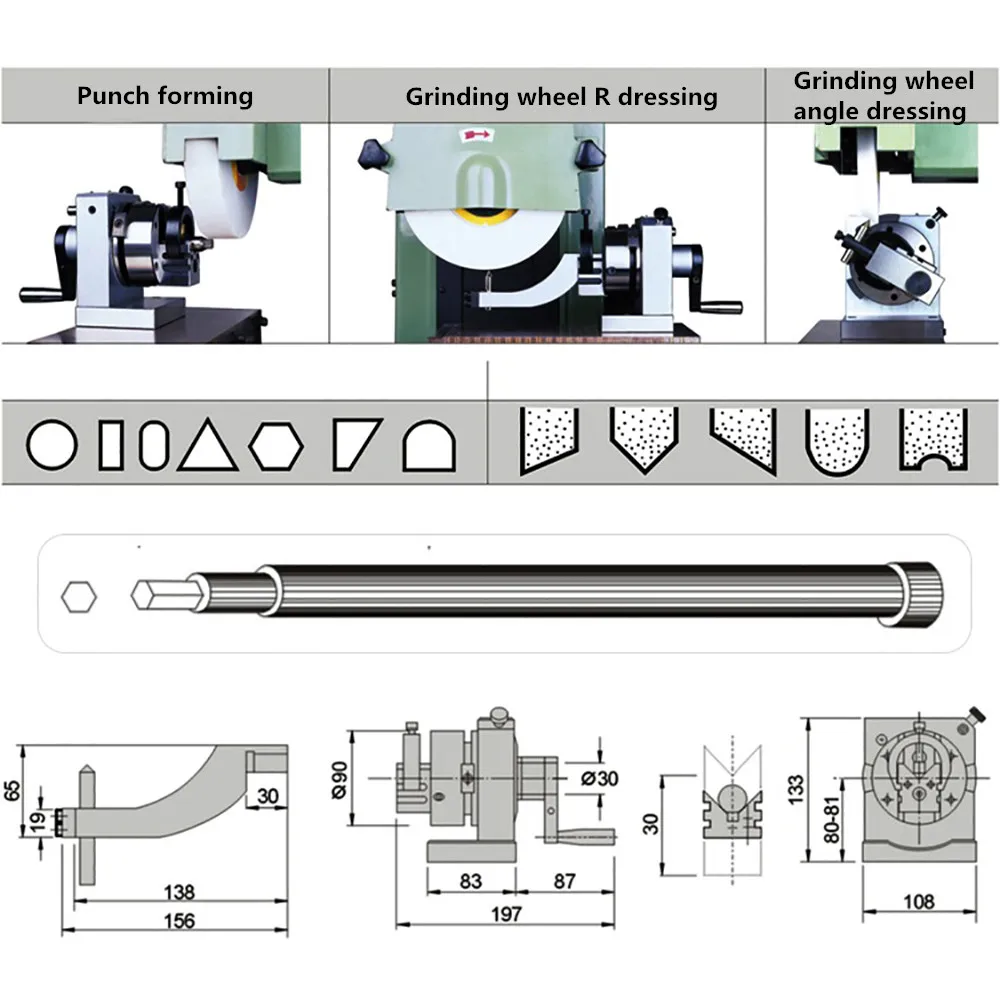

The punch forming device is suitable for grinding various shaped punches, punch forming,grinding wheel R dressing, grinding wheel Angle dressing.

Parameter:

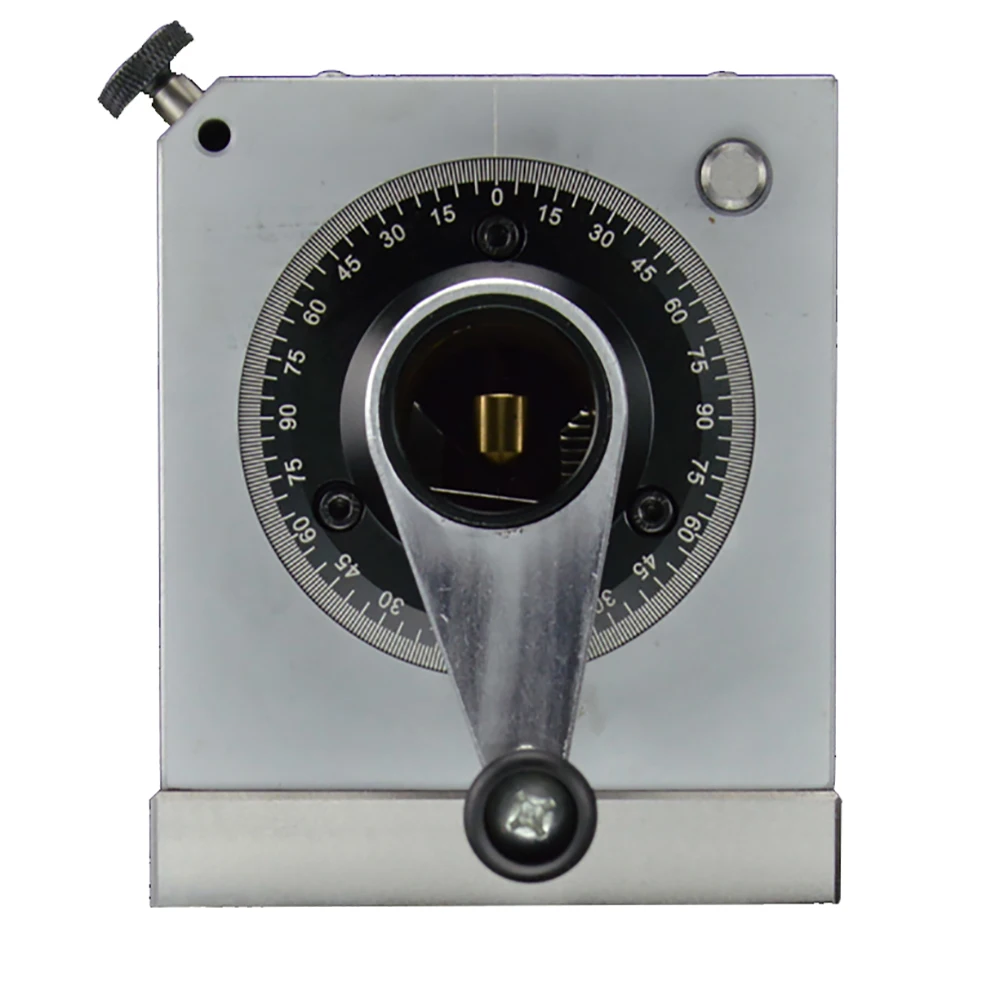

1. Center height: 80-81mm 2. V-groove clamping diameter: 3-30mm 3. Adjustment diameter of v-shaped block: 25mm 4. index plate teeth: 24 5. index plate accuracy: 15 ° ± 5 ' 6. Maximum diameter of dressing grinding wheel: 200mm 7. Maximum convex arc radius of R arc of dressing grinding wheel: R48mm 8. Maximum concave arc radius of R arc of dressing grinding wheel: R100mm 9. Clamping grinding accuracy: ±0.005mm

Feature:

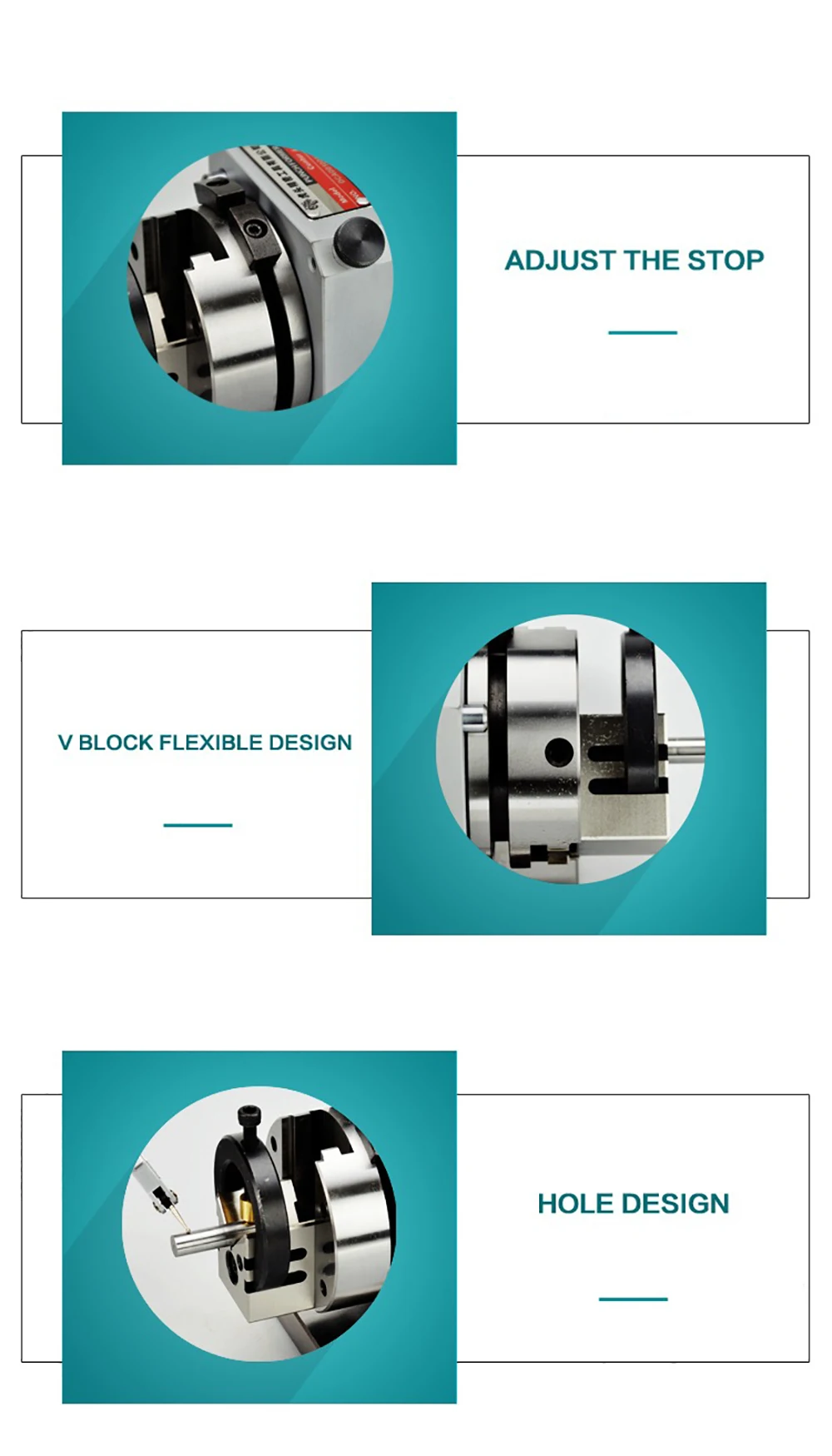

1. Precision adjustment of the block, ergonomics, 360° no dead angle grinding. 2. V-block flexible design, precision adjustment operation is convenient, the active slot is not stuck. 3. Special through hole design, used to grind various shaped punches, to solve the trouble that long workpieces can not be ground.
