1W 12Ch Беспроводной приемник CCTV 2.3G 2.4G 2.5GHZ для передатчика видео/аудио FPV на Дроне.

Brand NameKan.DoModel Numberptm1WOriginMainland ChinaCertificationCEPackageYesDrones Accessories TypeData Transmission SystemMeasurement unitpiece/piecesEach pack1Frequency2.4GhzPlace of OriginGuangdong, China (Mainland)is_customizedYes

Unavailable in

Description

"Any dispute / Direct negative feedback"  before contact means "Buyer bad " !! And not welcome such buyer !! Please go away !!( Because business is cooperation ,not fight each other ) .

If protection time is running over ,please contact to extend time ,
if any problem found ,please contact to solve by a friendly way .

Selling point of product :

1. 1000MW big power
2. 2.4G wireless kits with transmission 1-2km ;
3. 2.4G transmitter and receiver ;
4. 2.4G transceiver ;
5. 12 channels ;
6. With LCD to display channels
7. Fast shipping

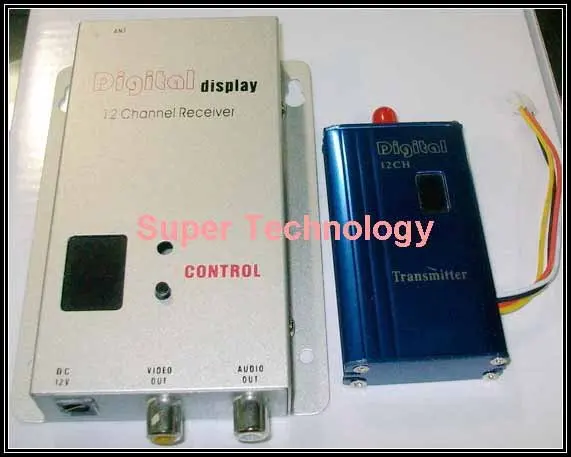

This is a great transmitter and a receiver for both video and audio ;
It allows you to transmit video and audio to one location to another, it`s good for home and office use ;
Microwave anti-interference performance well ;
This machine sound/video signal adopt the microwave transmission means with 2.4G frequency;

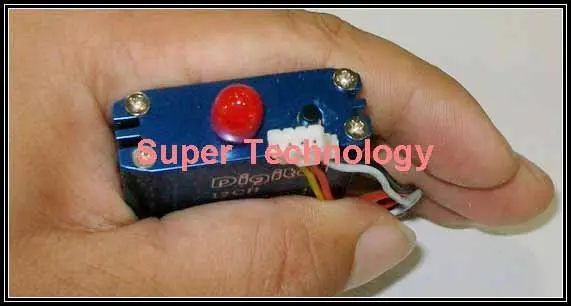

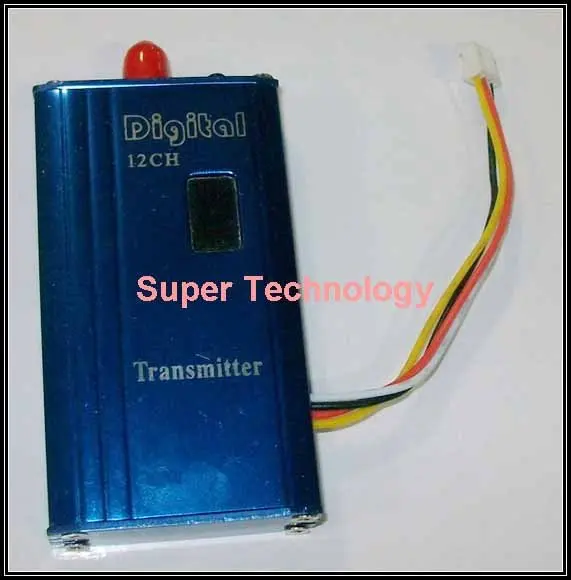

Transmitter description:

Transmit Power: 1000mW
Working frequency: 2.3G/2.4G /2.5G
2410mhz , 2430mhz ,2450mhz , 2470mhz ,2490mhz ,2510mhz,2390mhz, 2370mhz, 2350mhz, 2330mhz , 2310mhz, 2290m


Working voltage: DC12V
Operating Current: 900mA
Body product:74*41*14mm
Weight: 82g
LCD display : display channel .
Channel Selection: 12-channel audio and video synchronization
Emission Distance: (open air ) 1-2 km ( factory data );

 100-400 m with default antenna, longer distance to work with bigger gain antenna.



Size and weight data above is for reference only , it maybe a little difference with real goods .

Receiver description:

Working band: 2.3G/2.4G /2.5G
2410mhz , 2430mhz ,2450mhz , 2470mhz ,2490mhz ,2510mhz,2390mhz, 2370mhz, 2350mhz, 2330mhz , 2310mhz, 2290m


Body product: 115 * 80 * 21mm
Weight: 126g
Channel Selection: button to select the digital display
Receiving Mode: Manual receiver / automatically receive optional
Operating voltage: 12V
Operating Current: 250mA;
LCD Display : Display channels

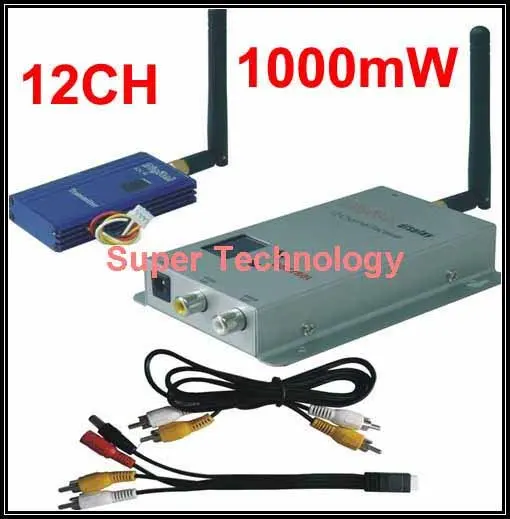

Package including :

1x 12 Channels AV Wireless Receiver
1x 12 Channels Wireless AV Transmitter
1x AV Cable for Receiver
1x AV Cable for Transmitter
1x 2.4G Antenna for Receiver
1x 2.4G Antenna for Transmitter
1x AC/DC adapter for Transmitter

NOte : Wireless transmission distance will have relations with your using conditions such as wall materials ( cement or steel ) , roomhermetic or not and interference . So the recommended transmission of 1-2km is in the condition of full open air and no interference. So it is for reference only .
