Product Overview

Outline

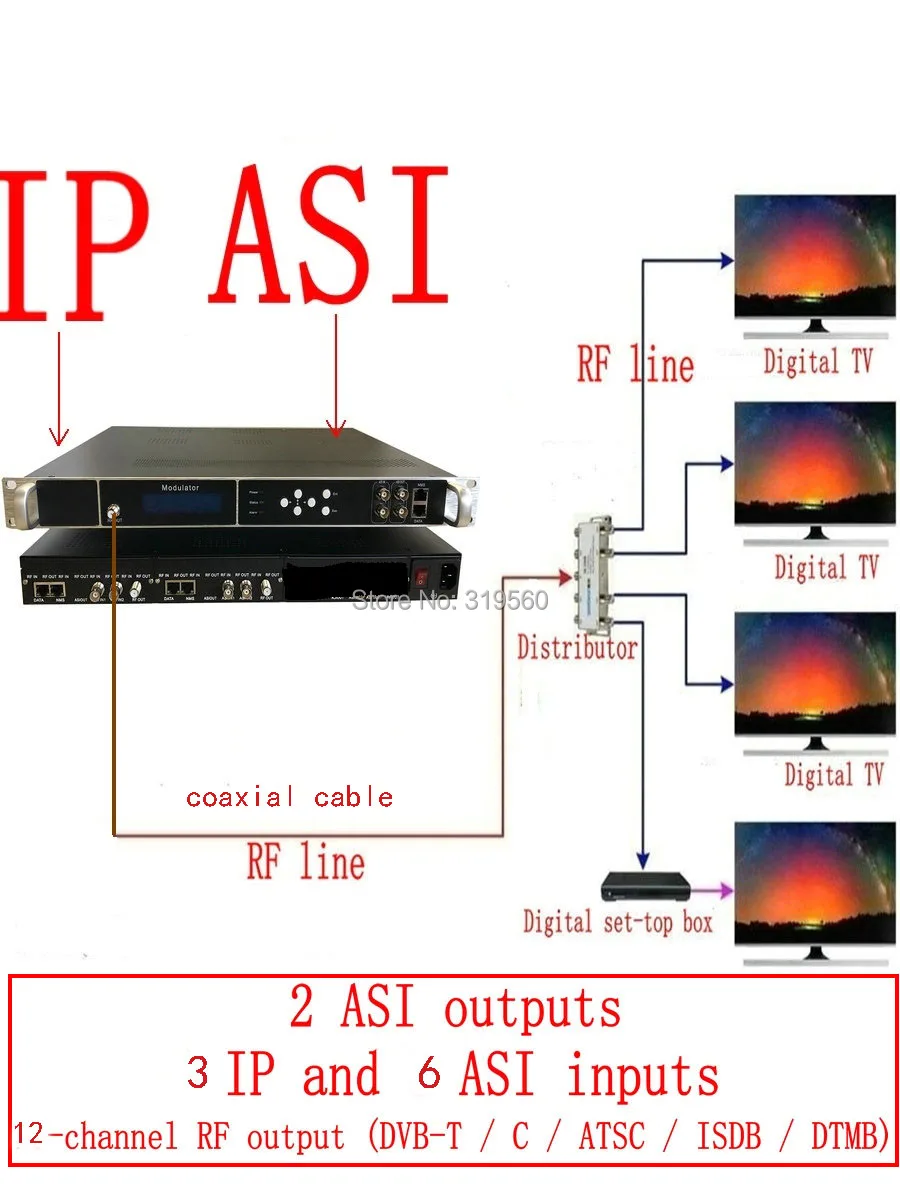

VEK-DVB-T/C-12,  DVB-T/C modulator is an all-in-one device integrated with multiplexing and modulation in one case.  After multiplexing and modulating process, it gives 12 DVB-T/C carriers (30MHz~1000MHz) output through the RF output interface. To meet customers’ various requirements.



With the features of low cost and high performance, this modulator is very adaptable to DVB-T/C CATV system.











Key Features

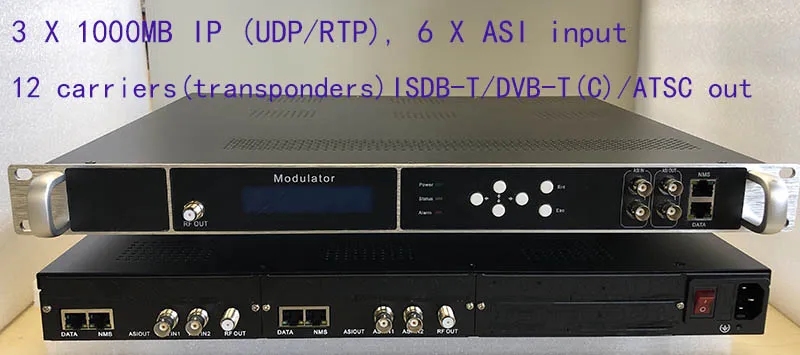

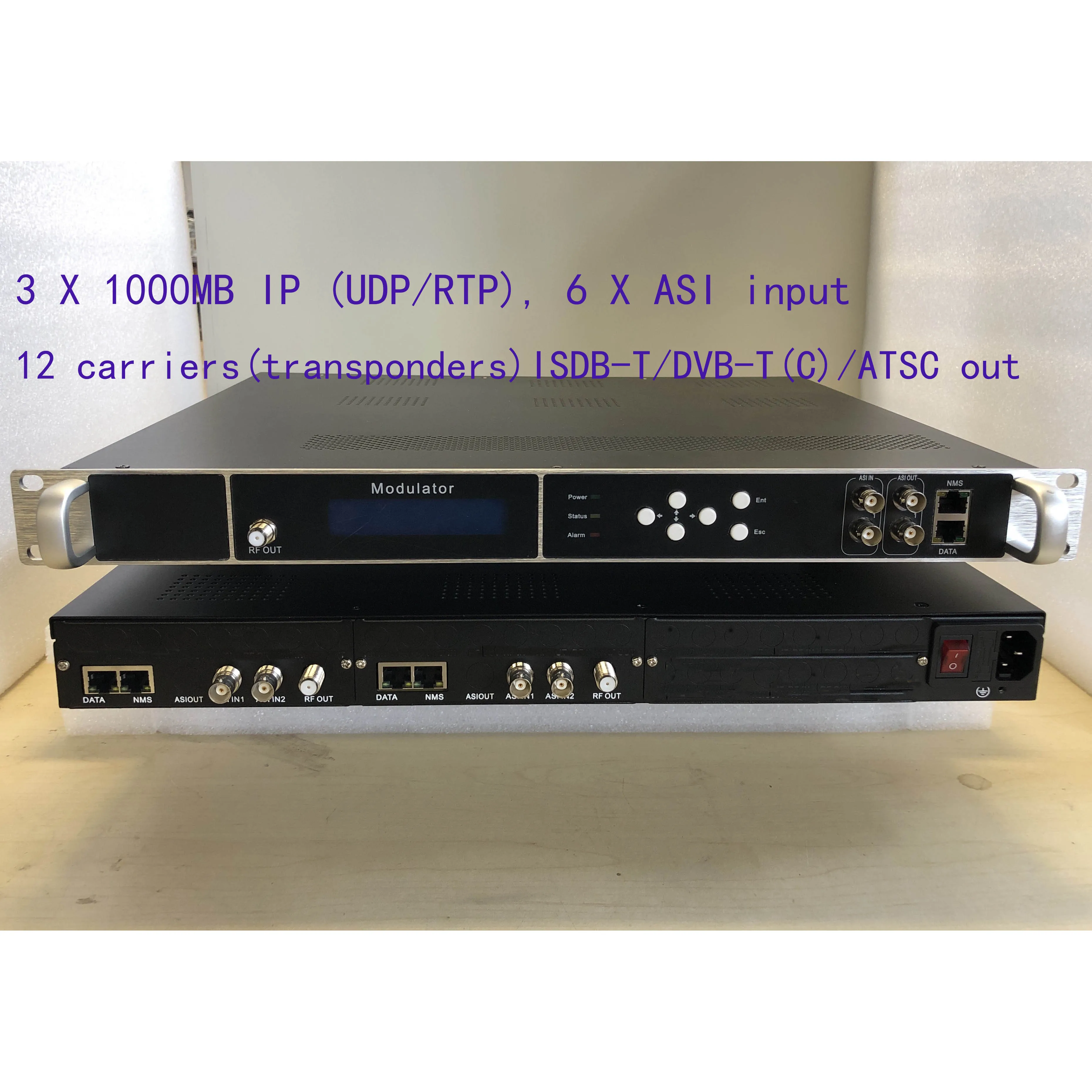

* 3 X 1000MB Ethernet IP input port

* IP (SPTS/MPTS) input over UDP/RTP protocol

* Support PIDS remapping per channel

* Excellent RF output performance index, MER≥40db

* 12 carriers DVB-T/C(QAM) RF output

* Support Web-based Network management







Specifications



Input

3X1000MB IP (SPTS/MPTS) input over UDP/RTP protocol

Modulation	DVB-T/C Channel	F typed output port for 12 carriers, 75Ω
	Standard	international
	MER	≥40db
	RF Frequency	30~1000 MHz, 1kHz stepping
	RF Output level	-10dBm~+0dBm, 0.1dB stepping
	FEC	RS (204, 188)
	Symbol Rate	5.0Msps~9.0Msps, 1ksps stepping
	Bandwidth	8M	6M	6M
output	12 carriers DVB-T/C RF output, 2 ASI output
System	Web-based Network management
	Chinese and English Language
General	Dimension	430mm×180mm×44mm (W*L*H)
	Temperature	0~45℃(Operation) ; -20~80℃(Storage)
	Power	AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ
