Waterproof 3650 3900KV Motor with 60A Brushless ESC For 1:10 TRX4 Defender G500 SCX10 D90 RedCat GEN8 Scout RC Crawler Parts | Игрушки и

---

Waterproof 3650 3900KV Motor with 60A Brushless ESC For  For Traxxas Rustler Bigfoot 4tec Slash Stampede



Features:

4 pole 12 slot high-torque motor design

3.175mm shaft diameter

High purity copper winding maximizes efficiency

Precision engineered for maximum energy conversion

Precision balanced rotor,smoothness for best reliability and maximum RPM

Mutiple protection features: Low voltage cut-off protection, over-heat protection, throttle signal loss protection

Built-in 5.8V/3A BEC

Suit for 1/10 scale RC car

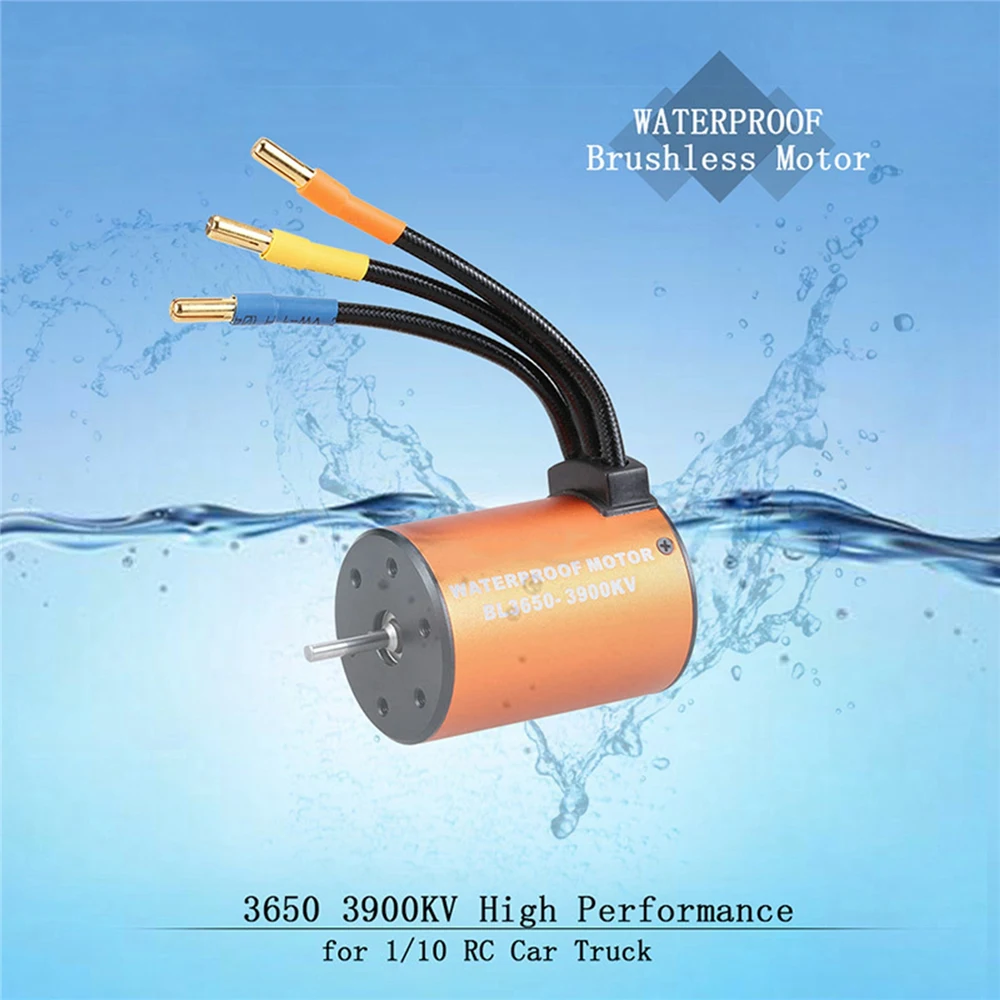

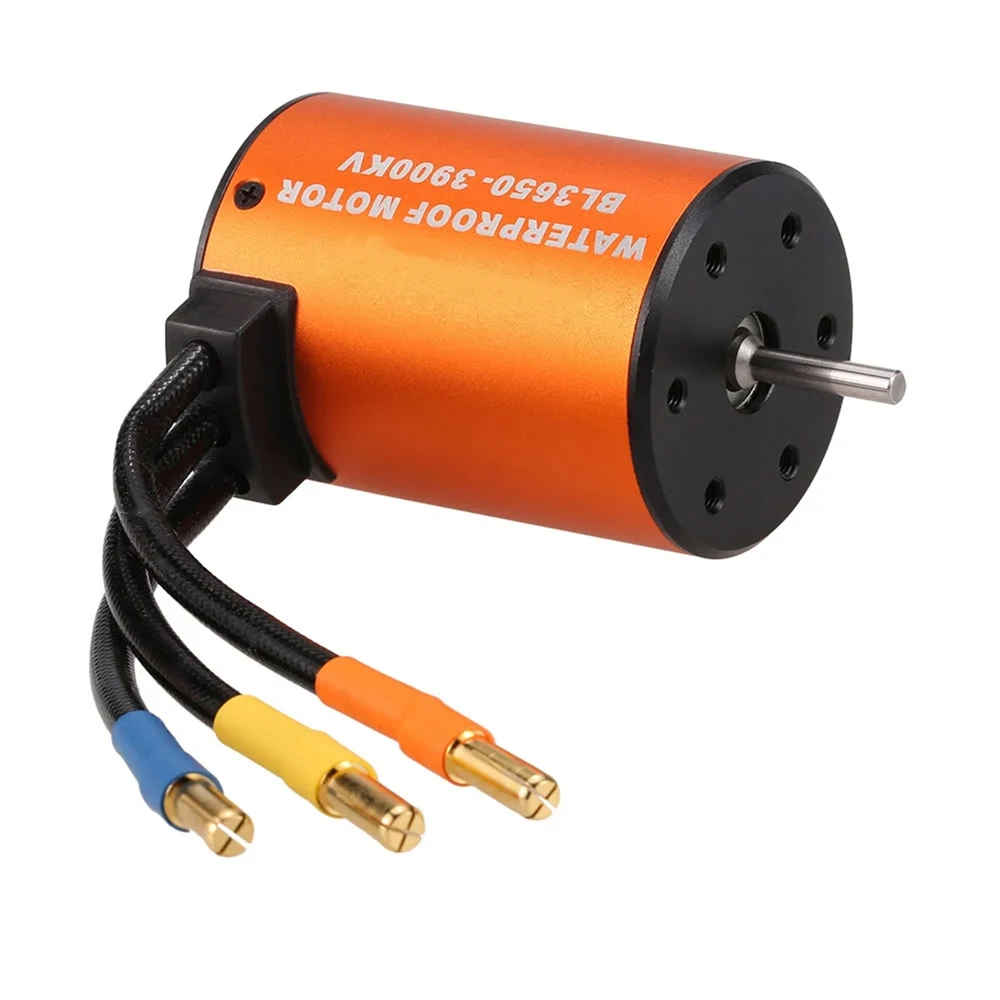

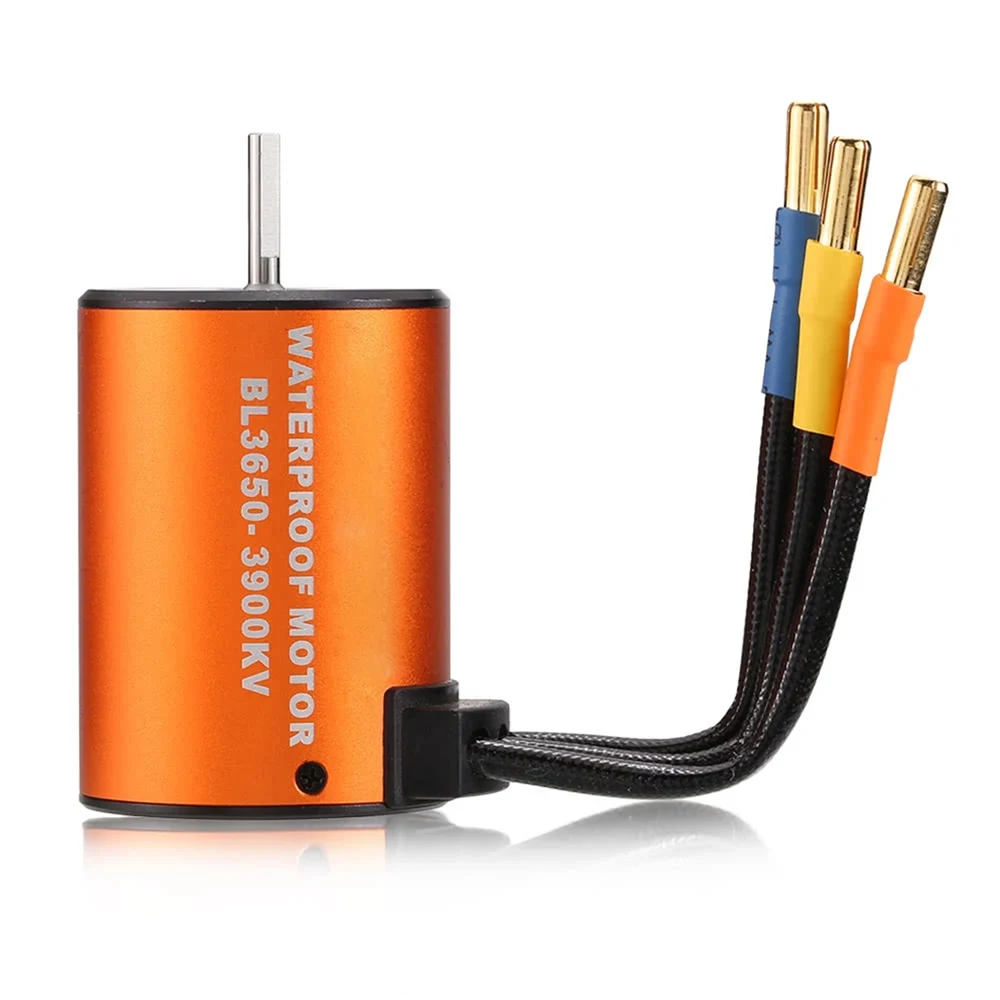

Motor Specifications:

Watts: 900W

Max voltage: <15V

Max Amps: 62A

KV(RPM/Volt): 3900KV

Max RPM: 50000

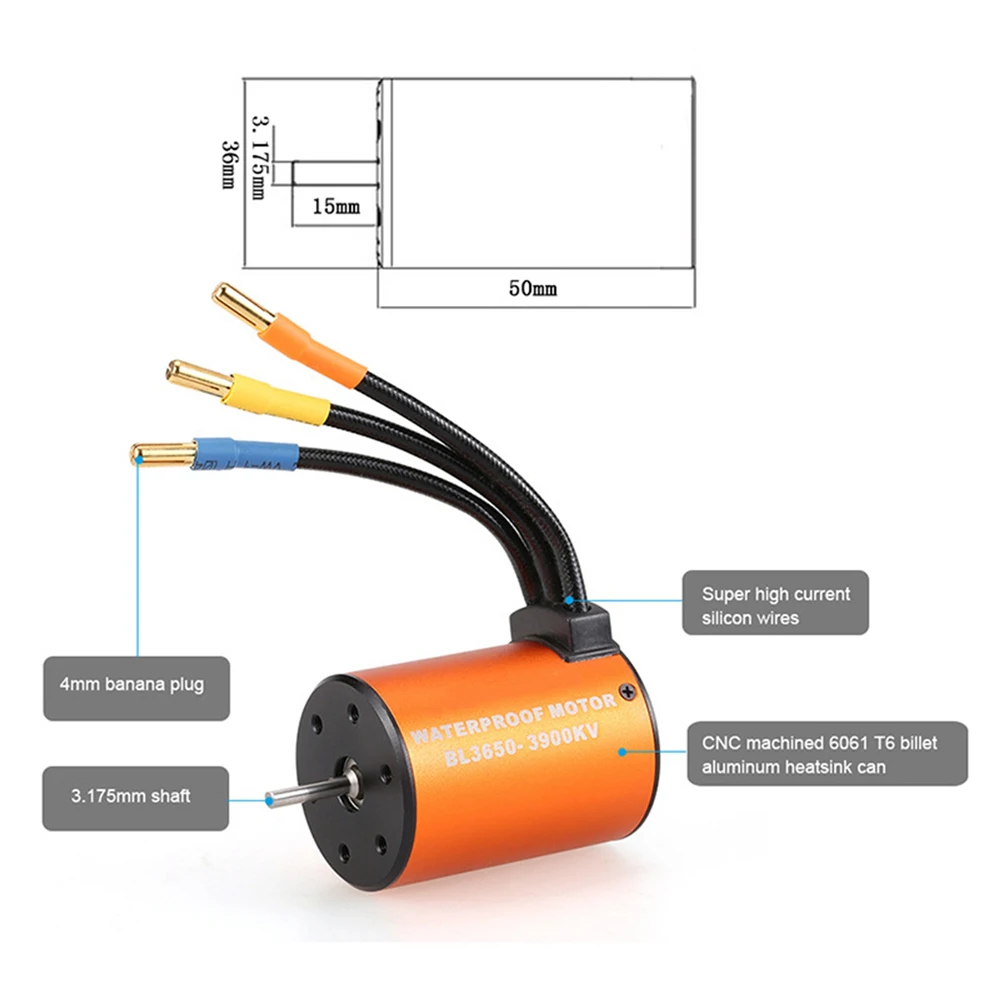

Diameter: 36mm

Length: 50mm

Shaft length: 15mm

Shaft diameter: 3.175mm

Plug type: 4mm golden banana plug

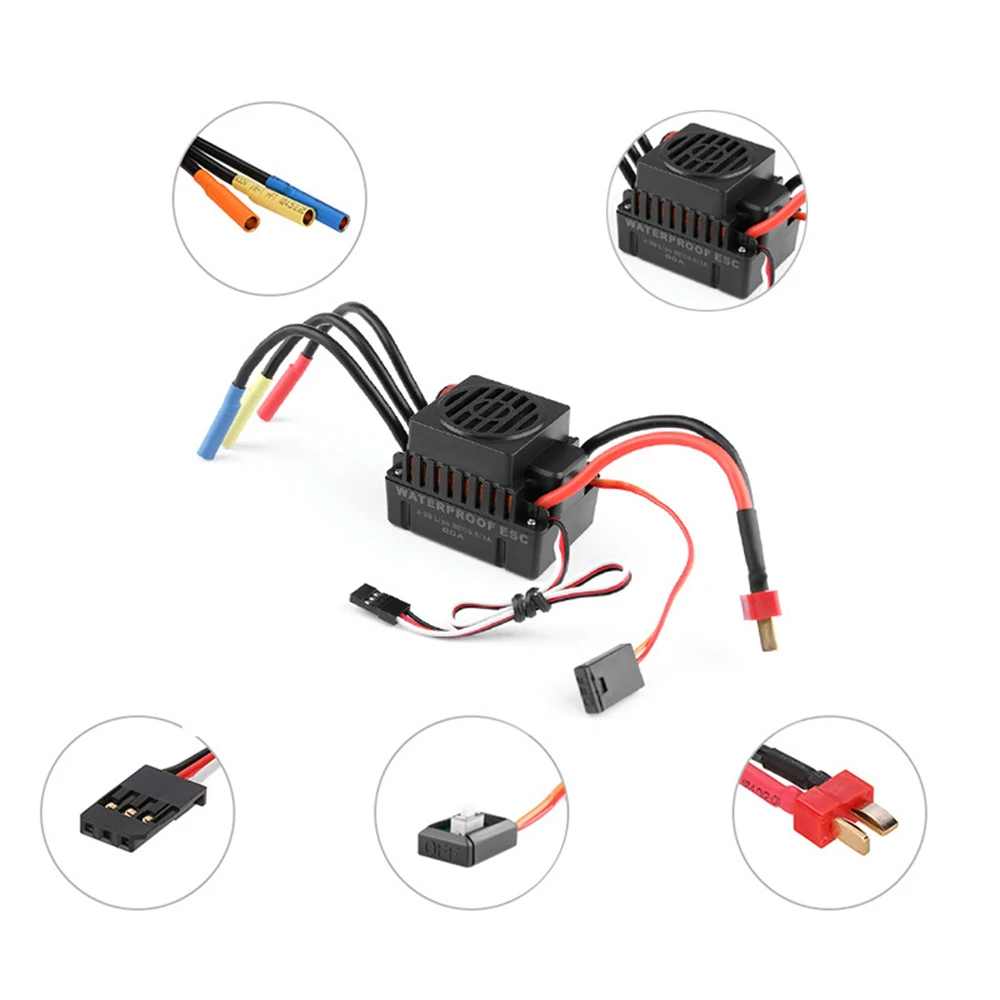

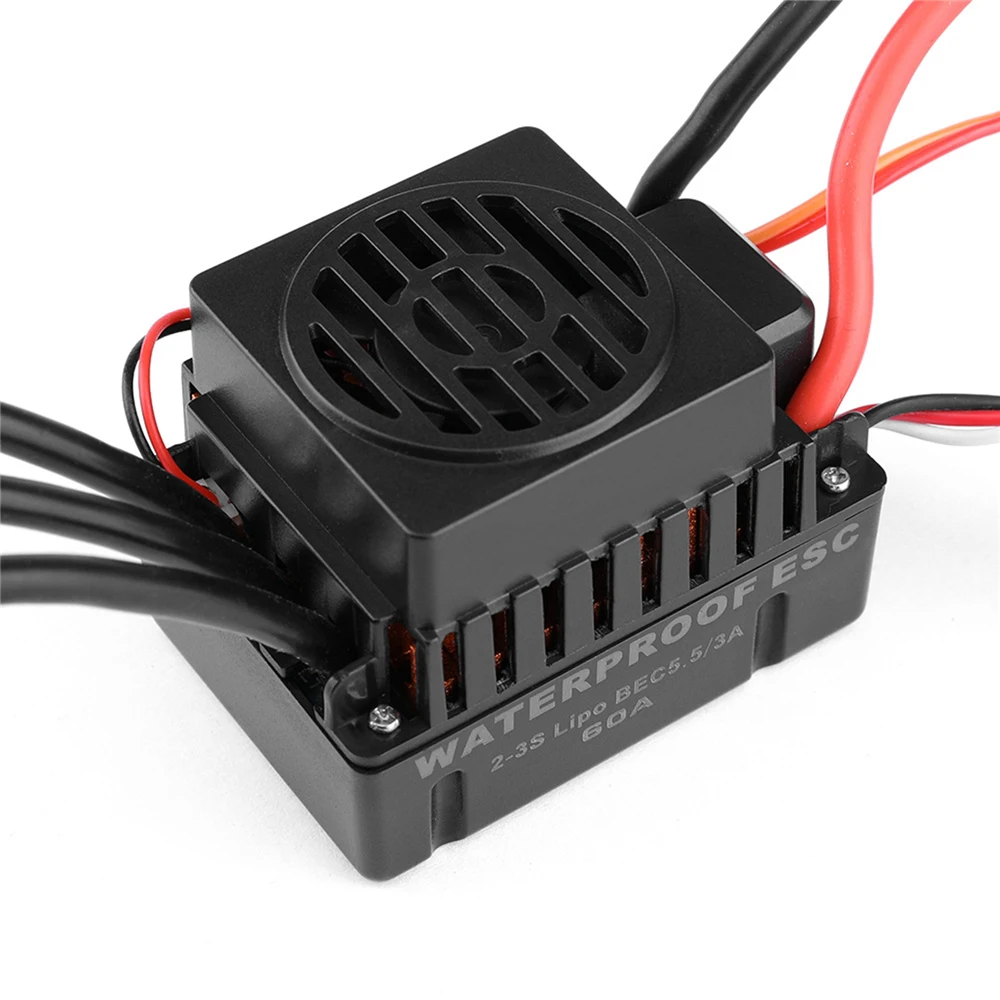

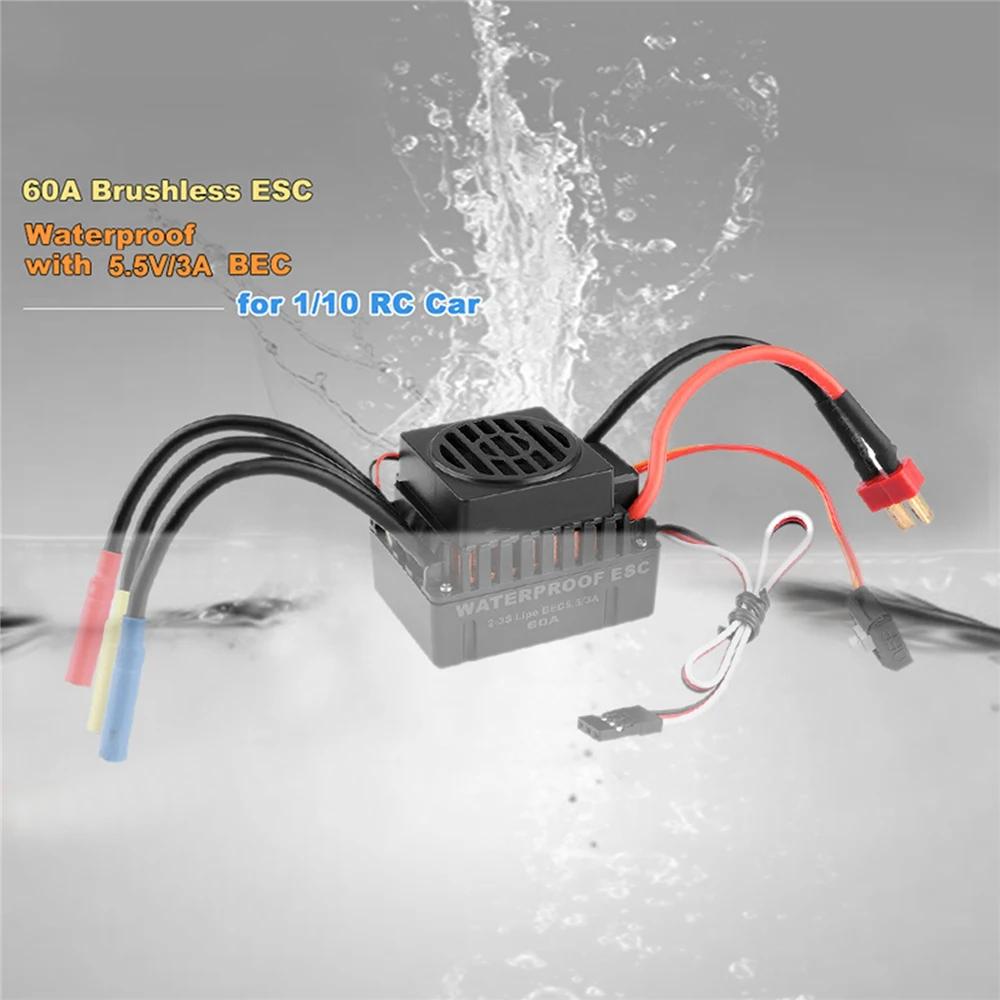

ESC Specifications:

Item name: waterproof ESC

Continue current: 60A

Burst current: 320A

Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd

BEC output: 5.8V / 3A

Power supply plugs: T plug male

Motor plugs: 4mm banana plug female

Dimension: 50 * 35 * 34mm / 2.0 * 1.4 * 1.3in (without cables)

Package size: 10.5 * 8 * 6cm / 4.1 * 3.2 * 2.4in

Package weight: 295g / 10.4oz

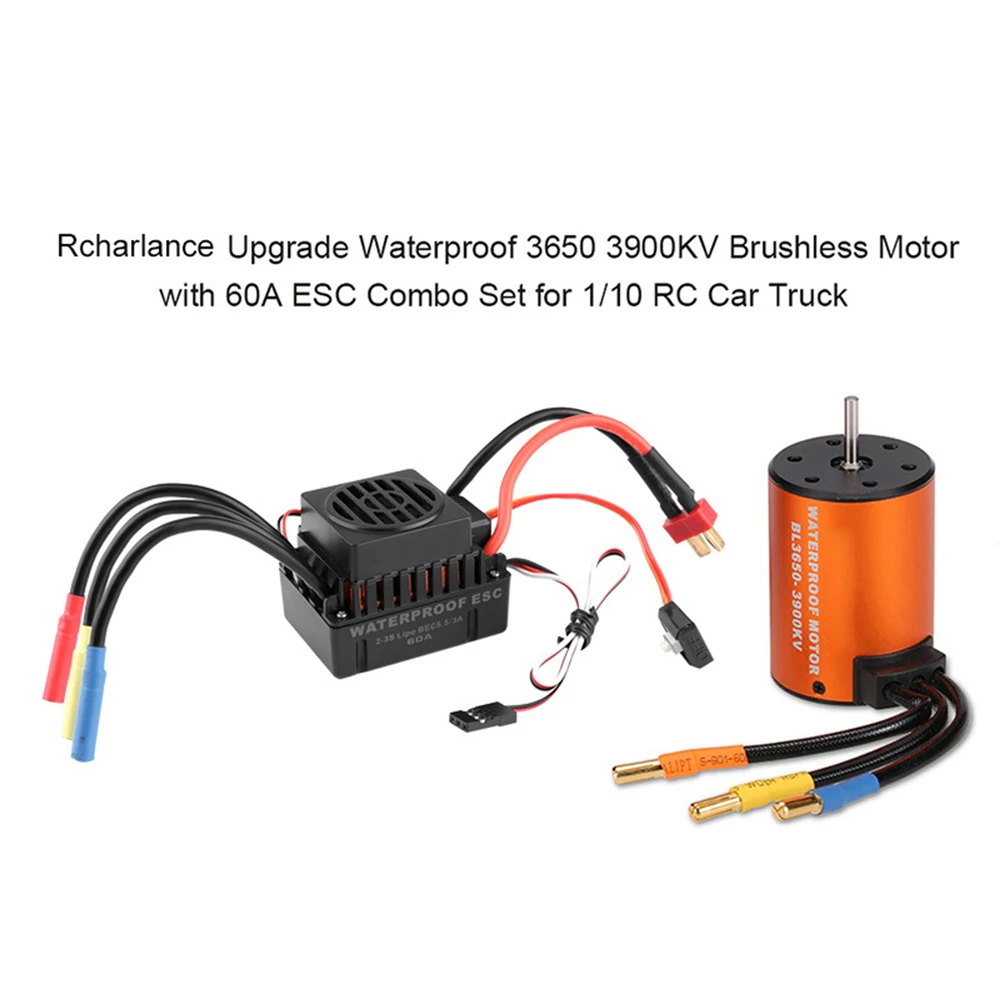

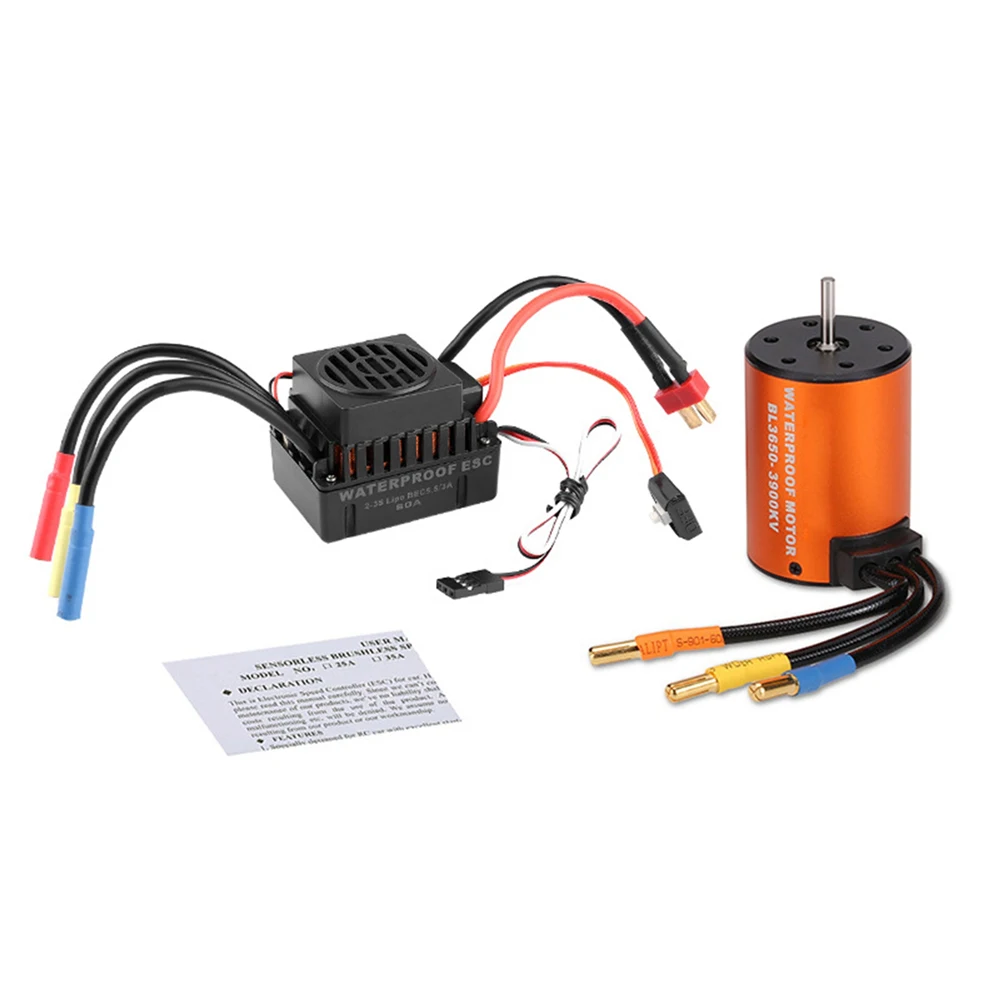

Package List:

1 * for Rcharlance3650 3900KV Motor

1 * Waterproof 60A Brushless ESC

1* User manual





---

---
