  RZ Battery Tester Digital Battery Monitor iphone lithium Monitor Electronic Device Battery Tester Electrical Battery Analyzer

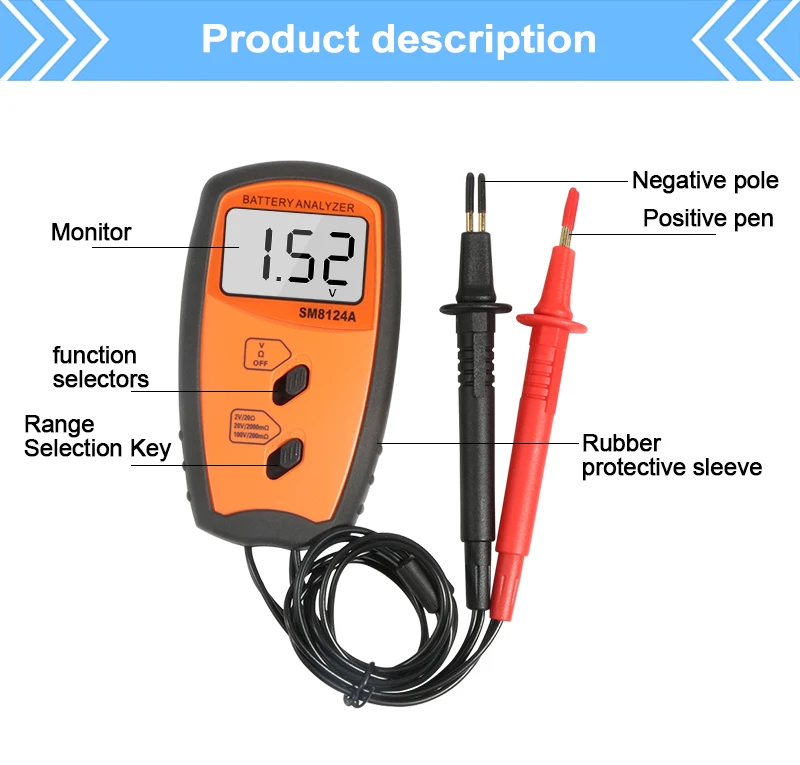

This product is an upgraded version of the battery internal resistance voltmeter. The main function of the smart meter for battery measurement is to measure the basic parameters of the terminal voltage and internal resistance of the battery. It is suitable for the internal resistance measurement of lithium ion, nickel hydrogen, lithium manganese and other monomers and combination batteries.

 Feature

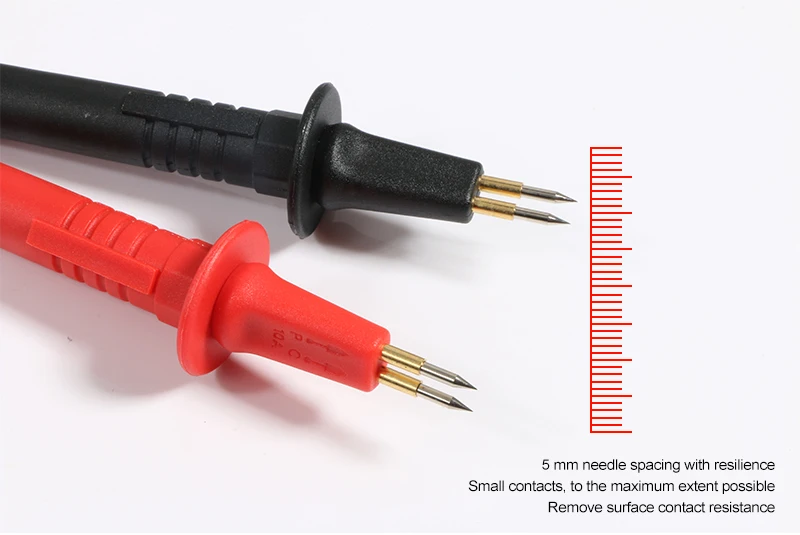

1.Voltmeter of internal battery resistance is an intelligent instrument specifically  designed to measure various battery resistance. It not only measure battery resistance  with off-line mode, but also with on-line mode. Meanwhile, it has the function of measuring battery voltage. in measurement of battery resistance, it is adopted the  international standard 1KHz constant current, And the adoption of four contactor &four  wires eliminate the effect between lead resistance and contact resistance in order to  accurately measure.
2.It is applicable for measurement of various kinds of internal resistances of Lithium- ion, nickel-hydroxide, lithium-manganese cells or assembled battery and quickly assess  whether battery resistance is good or not.

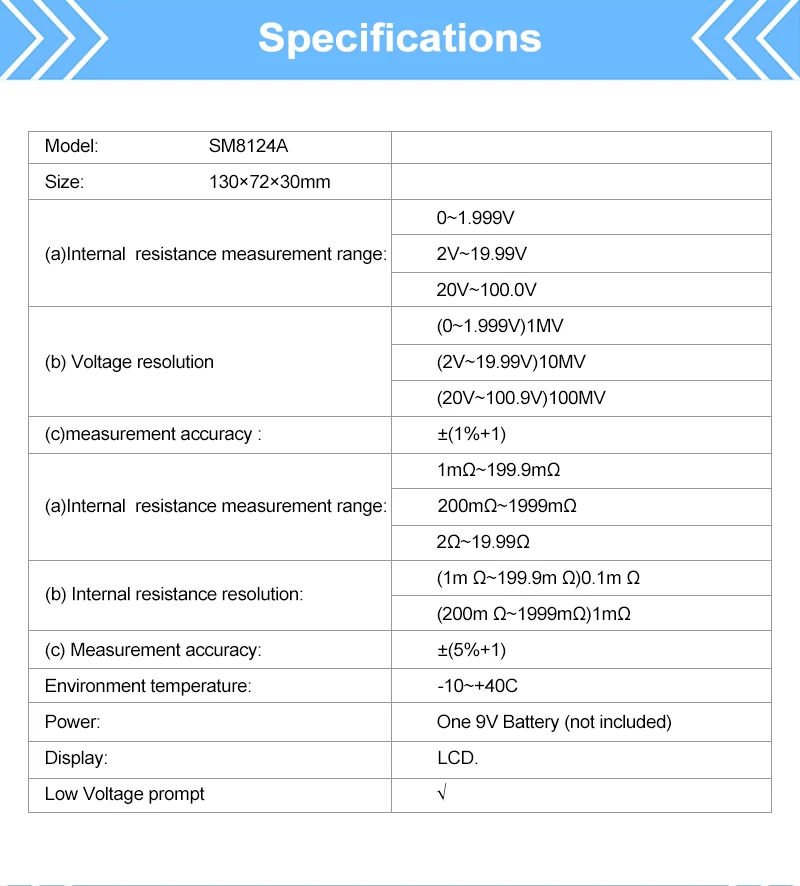

 Specifications   Model: SM8124A Size:130×72×30mm
(a)Internal  resistance measurement range:
0~1.999V
2V~19.99V
20V~100.0V (b) Voltage resolution
(0~1.999V)1MV
(2V~19.99V)10MV
(20V~100.9V)100MV
(c)measurement accuracy :±(1%+1)
(a)Internal  resistance measurement range:
1mΩ~199.9mΩ
200mΩ~1999mΩ
2Ω~19.99Ω
(b) Internal resistance resolution:
(1m Ω~199.9m Ω)0.1m Ω
(200m Ω~1999mΩ)1mΩ
(c) Measurement accuracy:±(5%+1)
Environment temperature: -10~+40C  Power: One 9V Battery (not included) Display: LCD. Low Voltage prompt

 Package included
1x Battery Impedance Meter  (no including battery)
1x User manual
