Yatour Car Audio Mp3 Player for Honda Goldwing GL1800 AUX Bluetooth adapter | Автомобили и мотоциклы

---



     Nowadays, using mobile phone during driving is widely considered dangerous

,and hands free car kit ensures driving safety. As the using of smart phone is

widespread, it is urgent need for most of drivers to enjoy huge music sources and

other Apps of their smart phone via car stereo.      For above demands, Yatour Bluetooth Car Kit (BTK) is released. Developed according to original protocol of OEM car stereo, BTK is a high-tech product innovatively integrated with latest standard Bluetooth technology.   Works with the following vehicles:

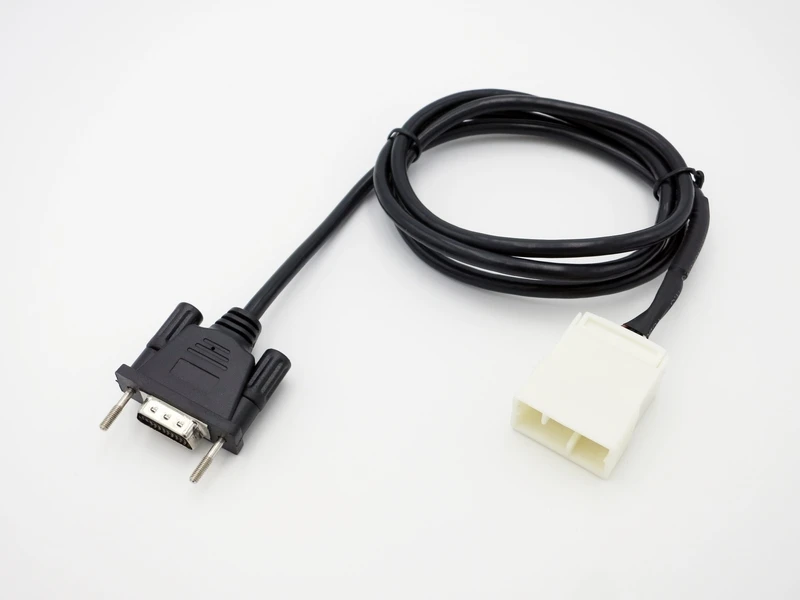

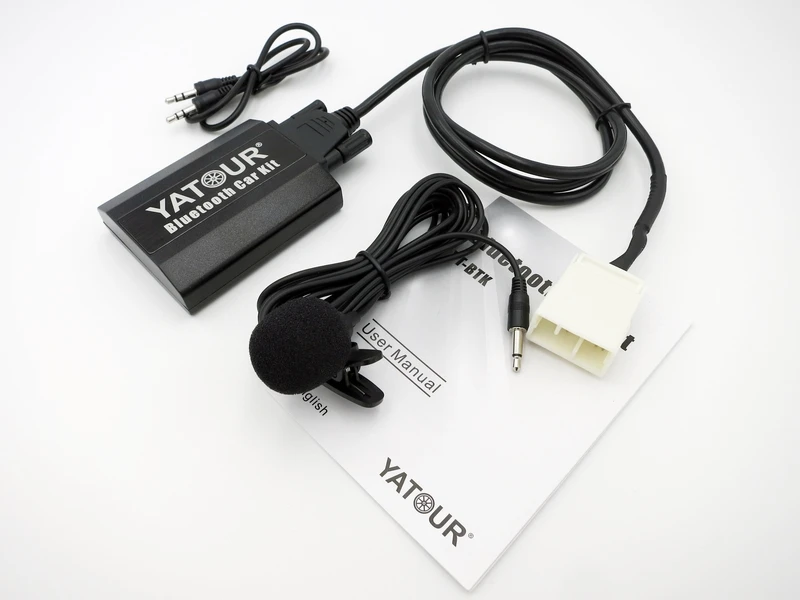

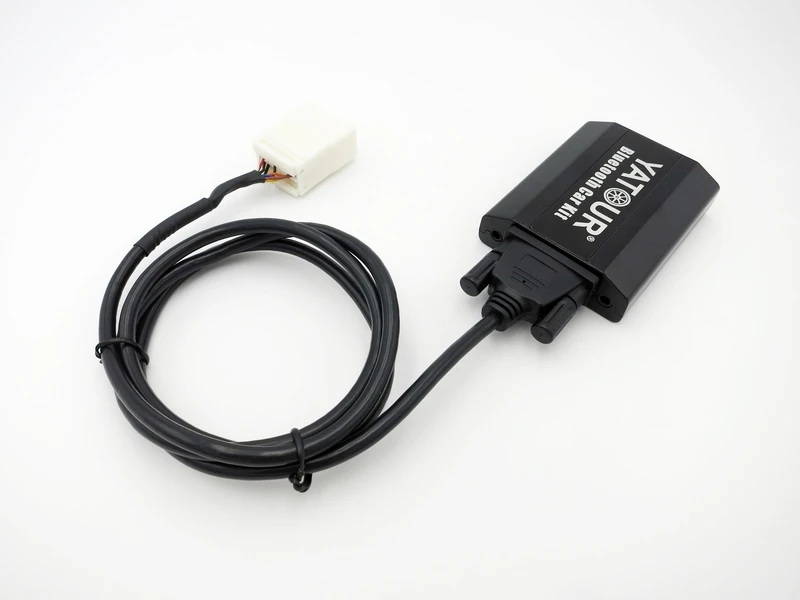

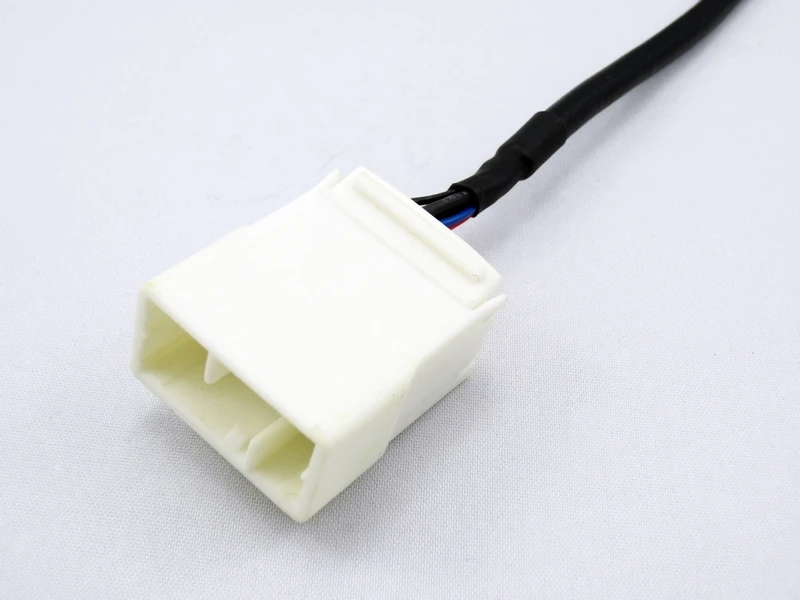

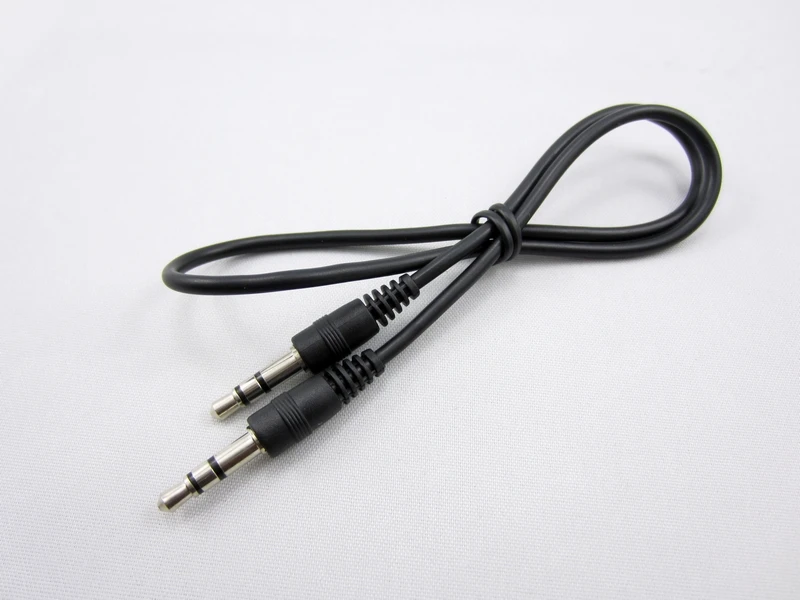

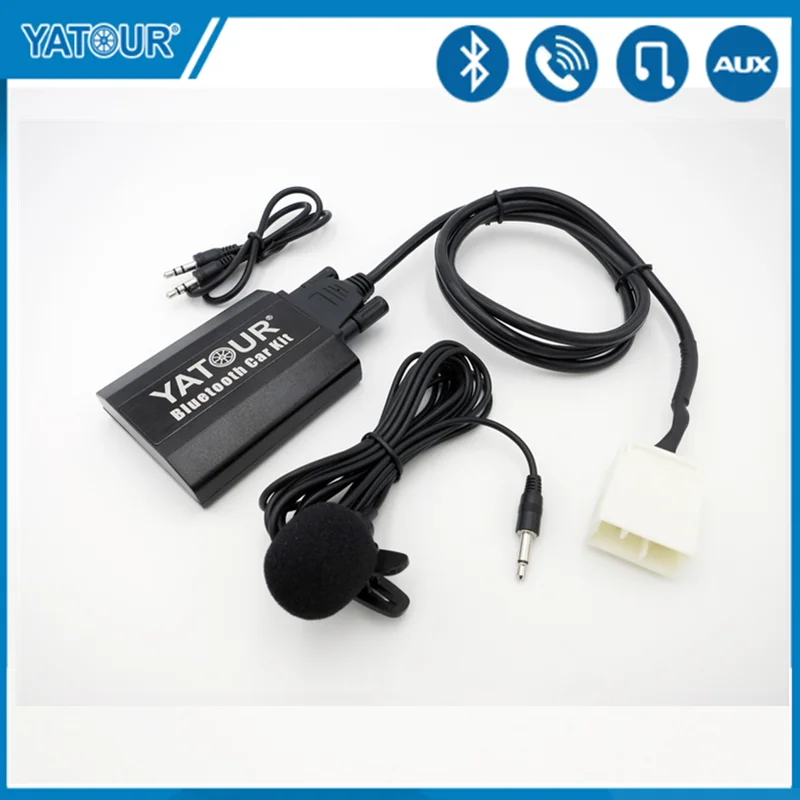

YTBTK-HON2F			Includes: Module unit for Honda white Honda white female plug AUX cable Microphone
Compatible Models	Honda Goldwing GL1800	2001-2005 Standard Max 6 folders, max 54files/folder 2006-2010 Premium Audio Models (Excluding XM or GPS NAV) Max 10 folders, max 99files/folder 2006-2010 Navigation and Airbag Models (USA version excluding XM) Max 6 folders, max 54files/folder 2009-2010 Factory XM and GPS NAV Equipped Models Max 6 folders, max 54files/folder.
Note	(1). YT-MPC is optional for Factory XM and Navi (2). On 2005 and earlier GL1800s pressing the A.SEL (RPT/RDM) button (or UM1on European Models) while playing an MP3 device as a CD Changer may cause a lock up of the audio system. This is a defect in the 2005 and earlier GoldWing radio software and the only recovery is to disconnect the battery orremove the fuse to reset the motorcycle audio system. This does not apply to 2006 and later models.























                  Specification: Module size: 74 x 62 x 20mm Voltage Input : 11V~14.6V DC Operational Current : 600mA Standby Current : 20mA Operating Temperature: -35℃~+75℃ DAC Resolution : 20bit Total Harmonic Distortion : 0.05% SN Ratio : 90dB Frequency Response : 20HZ-20KHZ

Features:

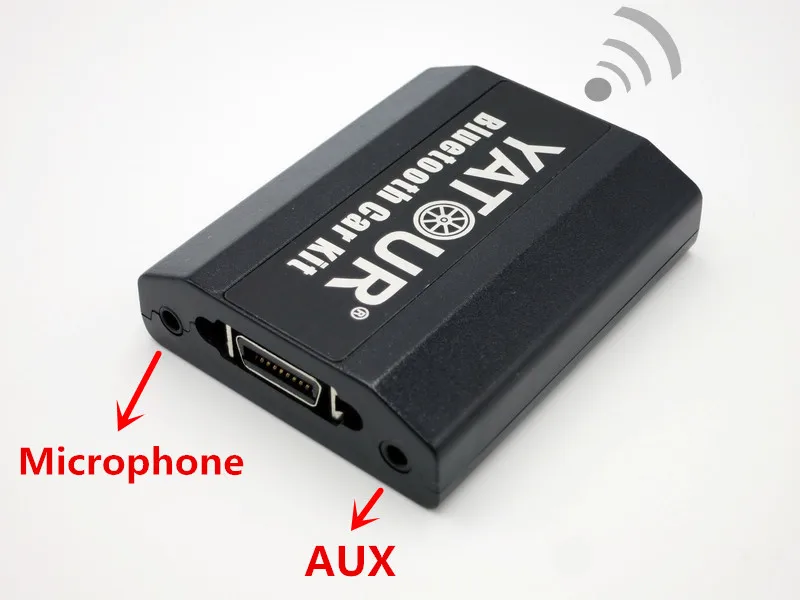

1. Plug & Play: installed via original CD changer port, easy and fast, perfectly integrated with the car. 2. Hands-free Phone Call (HFP): supports Answer/Hang up etc., via car radio buttons and steering wheel buttons. 3. Wireless A2DP Playback: easily streaming music of Bluetooth devices into factory car stereo system. 4. Bluetooth AVRCP Control: controls Prev/Next Track, Pause/Play, Fast forward/backward via car radio buttons or steering wheel easily and safely. 5. AUX Input: Supports 3.5mm auxiliary input, able to connect any external audio sources. 6. Hi-Fi Sound Quality: Connected to car stereo via wire harness, no interference and no loss of sound quality, rivaling original CD sound. BTK allows you to easily have popular configuration of advanced car stereo, is the best choice for safe driving and enjoying digital music.     Installation Preparation 1. The product only operates on a vehicle with 12 Volt DC negative ground system. Do not use it on other voltage system. 2. This product only fits OEM or aftermarket car stereo with CD changer port, and different solutions of Bluetooth adapter would be adopted according to different brands of vehicles or different car radios. 3. Make sure car stereo is powered off before installation, otherwise the car stereo may be damaged. It is suggested to install it at car dealer shop or professional car stereo store. 4. Usually, the car stereo needs to be removed so as to plug BTK’s main connector into CD changer port on radio back. For some car models, BTK can be installed in glove box or trunk where external CD changer port is located (Requires special splitter cable).   1. Turn off car engine and remove key from ignition, If your radio uses a Security Code, make sure that you have the code before unplugging the radio.   2. Unmount the radio from the dash ,disconnect car battery power , find CD Changer port at the back of the radio and disconnect CD changer plug.   3. Attach the wire harness connector to the back of the stereo to the CD changer port. Be sure to make a firm connection but do not force it.   4. Disconnect the battery for minutes or remove the fuse to reset the car audio system.   5.Once the Yatour is connected to the radio, you will need to test the operation of the interface before re-assembling the dash. Insert SD card or USB flash stick, and power on the Head Unit, then press CD (or Disc / Mode / CDC / SOURCE / AUX) button for once or twice to switch to playback mode of Digital Music Changer, with the symbol of LED light being on. Meanwhile, CDC, EX, or CD01 will display on the radio screen(depending on the car stereo type). Now the Digital Music Changer will run normally.     6. After successful test, re-assemble the radio, and put wire harness and module unit box in proper place. Then installation  is completed.   Working Modes Instruction After finishing installation of BTK, press once or twice the CD (or Disc / Mode / CDC / SOURCE / AUX etc.) button to switch to CD changer working mode (BTK mode). Yatour BTK offers 2 types of working modes: HFP/A2DP mode, AUX IN mode. Under BTK Bluetooth HFP/A2DP working modes, the car stereo should be under CD1 mode, and you should see CD 1-1 on you car stereo. When you disconnect current bluetooth connection from your mobile phone and BTK will switch to AUX IN mode, BTK’s AUX input will be valid.   1. BTK doesn't work after installation. Please check whether the wire harness is correctly connected. And if there is GND wire (for some car models), please check whether it connects well with metal parts of car radio. 2.Frequently switching or other unknown reasons cause playback stuck. Music playback is from function of mobile phone, you just need to start the playback from mobile phone menu. 3.External audio input(AUX IN) sounds too low or too much noise. Adjust volume of earphone output of your external audio device;It is not proper for external audio devices to use car power, because common ground noise will occur in this case. External audio device should use its own battery to play. 4. Why I can still hear the former mobile phone Bluetooth A2DP music when I plug in AUX device? When you need AUX IN function, you have to disconnect current bluetooth connection from your mobile phone and BTK will switch to AUX input mode status . ​   • We accept Alipay, West Union, TT. All major credit cards are accepted through secure payment processor ESCROW. • If you can't checkout immediately after auction close, please wait for a few minutes and retry Payments must be completed within 3 days. • Please contact us for invoice if you don't know how to pay as soon as you win the product. • We will ship the item within 1-3 business days after the payment has been verified. All items will be shipped by UPS, DHL, FedEx, China EMS,Honkong post. • Usually,It may takes approximately 5-15 business days to delivery item to your hands. As for postal process, it Excluding Saturday, Sunday and Public Holidays - these do not count as business days. • We are not responsible for wrong or undeliverable address. We only accept Aliexpress verified and confirmed address. Please provide us your full address with Telephone number and make sure your shipping address is correct and deliverable. If you need to change your address, please change it in Aliexpress first before you pay for it. • Tracking number will be emailed to you at once when we have shipped your order. If there is any delay, it may be caused by bad weather or custom inspection. If you don't receive the item within 30 DAYS, please feel free to contact us. • We can Ship to Worldwide by the best way within 48 hours after the payment is cleared. except weekend (Saturday and Sunday) and Chinese official holidays.  • Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding/buying. • We try our best to make you get your desired products as soon as possible. In case you receive wrong products due to our shipping error, please contact us for exchange or refund. • We check all our items before sending out And All selling products are brand new, ever been used & not refurbished. • If item is defective and not working on arrival, please report to us within 14 days of receiving the defective product so we can issue a RMA (Return Merchandise Authorization). Please contact us to request a return authorization. Please include your name, auction number, and reason for return in the email. All items returned must contain all original packaging materials. Buyer will be responsible for all shipping charges for returns sent to our Returns Warehouse. Handling charges and insurance are not refundable in any case. • All our products have One-year warranty. We will offer free repairing service within One Year from the date of you purchased. If damaged is caused by undue wear and tear, dirt, misused ,improper installation or operation, neglect, accident or repaired by unauthorized person then the item's warranty becomes void. please read the item's instruction detailly. • Returns made for non-defective merchandise will be charged a 10% restocking fee • Feedback and DSR score is very important for us. Could you please kindly give us chance to resolve your problem if you have?  • Good communication can solve every problem. Any problem, please contact me first, we will give you a prompt reply within 24 working hours to resolve any problems till you satisfy. • Neutral or Negative feedback, dispute on aliexpress, and lower DSR score will hurt both of us. Our working time: 8:00 AM - 18:00 PM (Beijing Time), Monday - Sunday •   We are professional car electronics distributors in China, specializing in China Wholesale Car electronics such as car pcs, car DVD players, car video monitors.We are legal company and honor seller in China. •   If you are interested in an item that isn't listed in our online shop, but you think that we might be able to offer related information, then please feel free to let us know.We will answer every email from you. Please check your email box.



---

---
