1PCS NFC electronic label wet inlay ntag213 chip RFID electronic label 14443a protocol label NFC Tag Access Control Card

Description

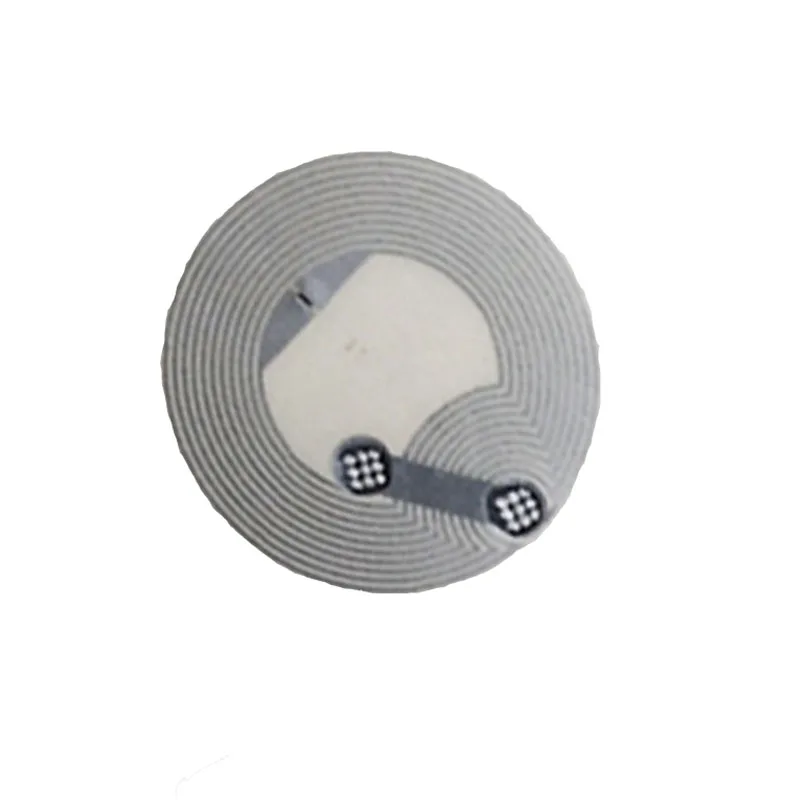

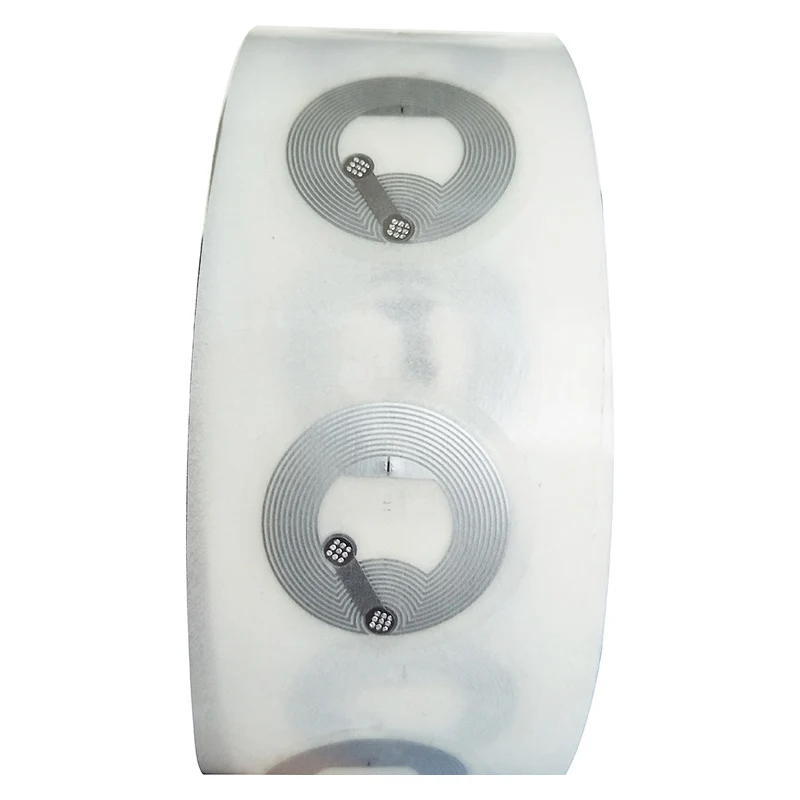

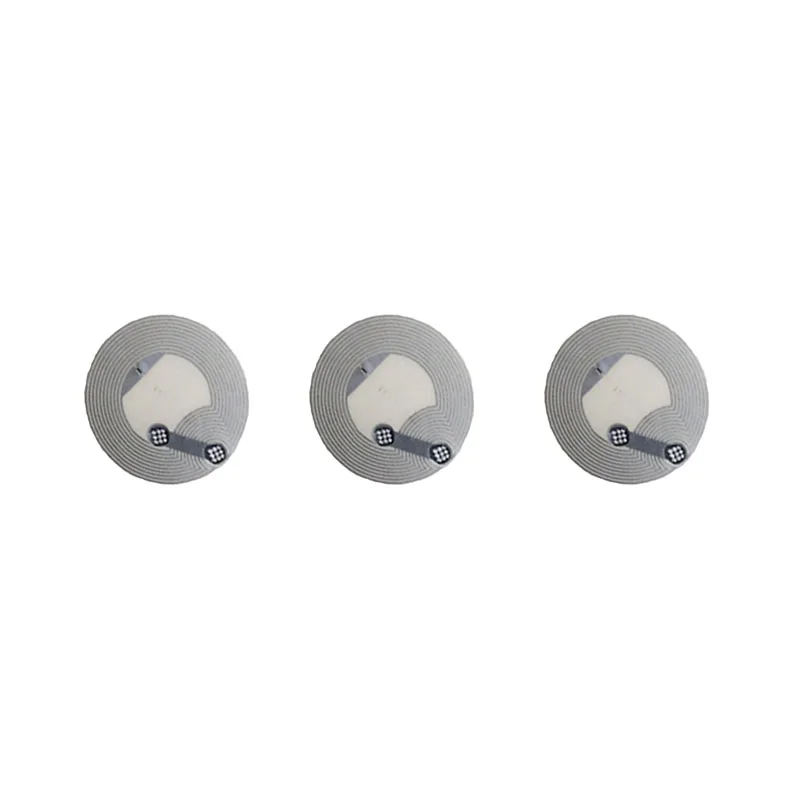

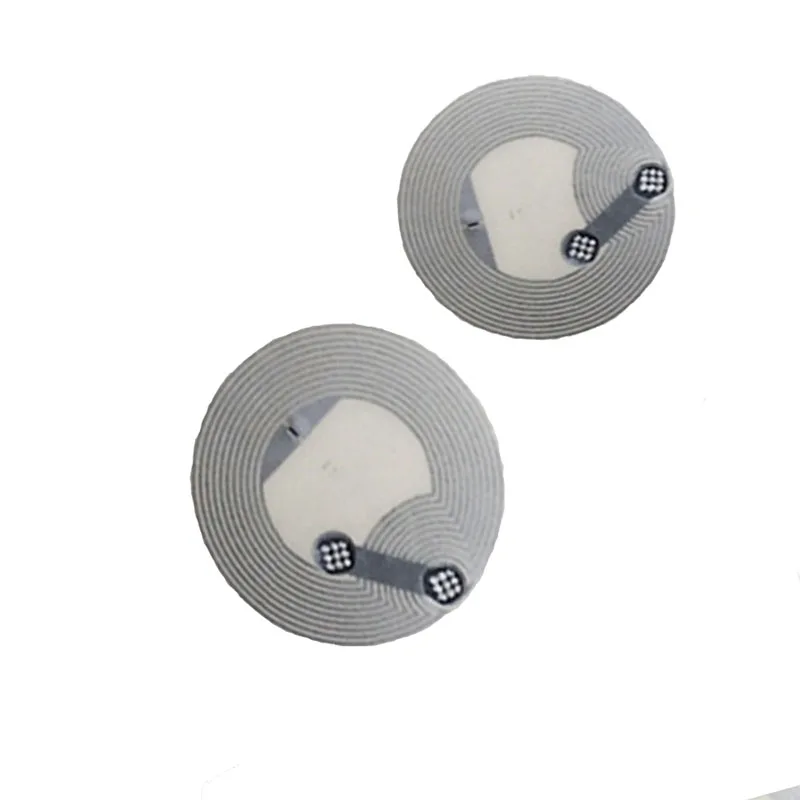

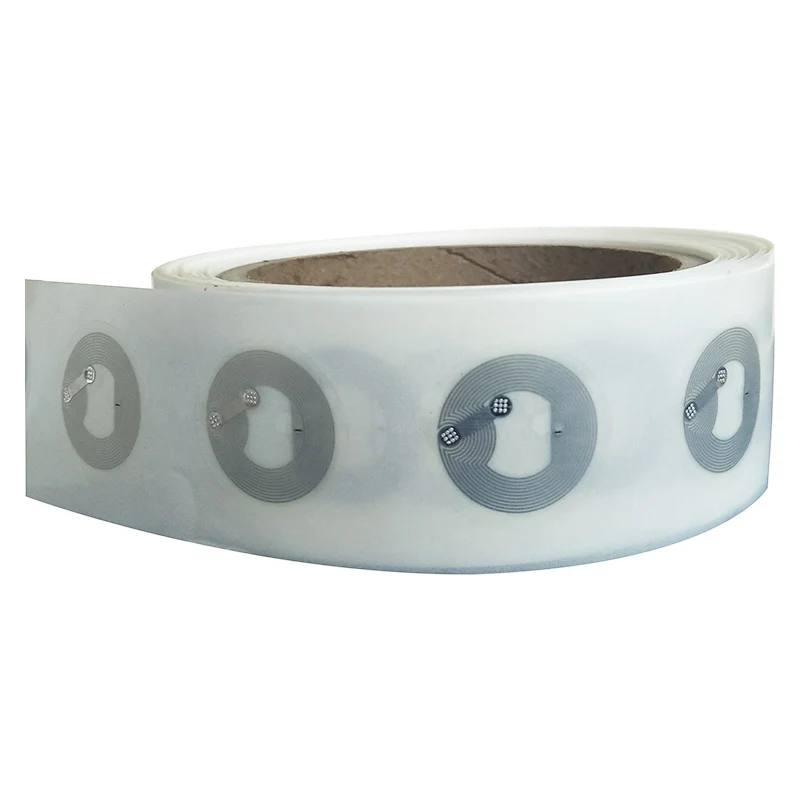

Ntag 213 NFC Wet inlay label

Chip model: ntag 213

Working frequency: 13.56 MHZ
Power supply mode: contactless data transmission and power supply

Data transmission: 106 KB / S

Data integrity: 16 bit CRC, parity, bit code, bit count

Memory capacity: 180bytes, read / write: 144bytes

Working distance: up to 100 mm (depending on different parameters such as field strength and antenna geometry)

Data retention period: 10 years

Configurable password protection with optional fail attempt limits

Antenna: Aluminum etching thickness 0.03mm

Size: 26mm, 30mm, 50 * 50mm or specified by the customer

Additional process: four color, monochrome printing, barcode, washing code, uid internal code, URL,

Laser, absorbing material (0.1-0.5mm), etc



Applications: outdoor smart advertising, product certification, mobile phone matching label, Bluetooth or Wi Fi pairing, electronic shelf label and business card
