CZH CZE-T251 0-25W power adjustable Professional FM stereo broadcast transmitter +1/4 GP antenna kit | Radio & TV Broadcasting Equipment

New!! CZE-T251: Adjustable 0-25W Professional FM stereo broadcast transmitter+1/4 GP antenna +power supply kit

DHL EMS UPS FEDEX Free Shipping

Be sure to add me to your favorites list!

FEATURES: CZH-T251 25Watt FM transmitter is a professional FM transmitter newly released by Fmuser . It’s featured by one button control for all functions. It has VSWR protection, temperature protection, electronic volume adjusting,equipped with low pass filters. It’s applicable in many places, such as stadium, county radio station, community radio station, motel, public square,church, theater and so on.

Technical Specification
Functions and features:

-215mm x 165mm x 54mm chassis

-Power up to 25 watts

-Using digital phase-locked loop frequency synthesizer (PLL) technology, ultra-high frequency stability.

-Have the standing wave protection, and overtemperature protection.

-Output power from 0 ~ 25W continuously adjustable

-Using the RF power lock feature

-Show the timely output power and various working status.

Electrical parameters:

RF part:

Operating frequency: 87.5 ~ 108MHz

Output power: 0-25Watt (continuously adjustable)

Output Impedance: 50 ohm

Spurious and harmonic radiation:-60db

Audio part:

Frequency response: 50 ~ 15KHz (3db)

Distortion: 0.2%

Left and right channel separation: 45db

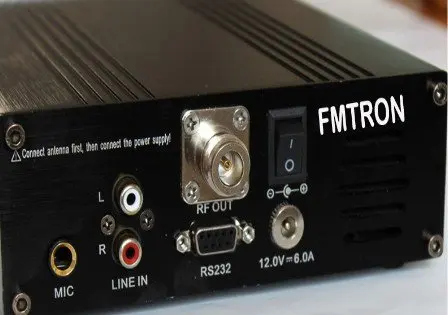

LINE IN connector: RCA two-channel Cinch (stereo)

The microphone interface: 6.5mm

Microphone Type: Dynamic microphone (electret microphone is not applicable)

Power supply part:

Rated working voltage: DC 12~13.8V 5A/6A

Maximum power consumption: 60W

Operation Attentions:

1. Make sure the antenna or the Load can be ground connected to transmitter

2. The power supply voltage must be within the allowed range.

3.Make sure the fan ventilation is good.

Package include:

1pc CZE-T251 FM Transmitter

1pc 1/4 GP antenna

1pcs power supply
