HoBiMart 5pcs HY-SRF05 5pin Ultrasonic sensor distance measuring module ranging #J147 | Электронные компоненты и

---

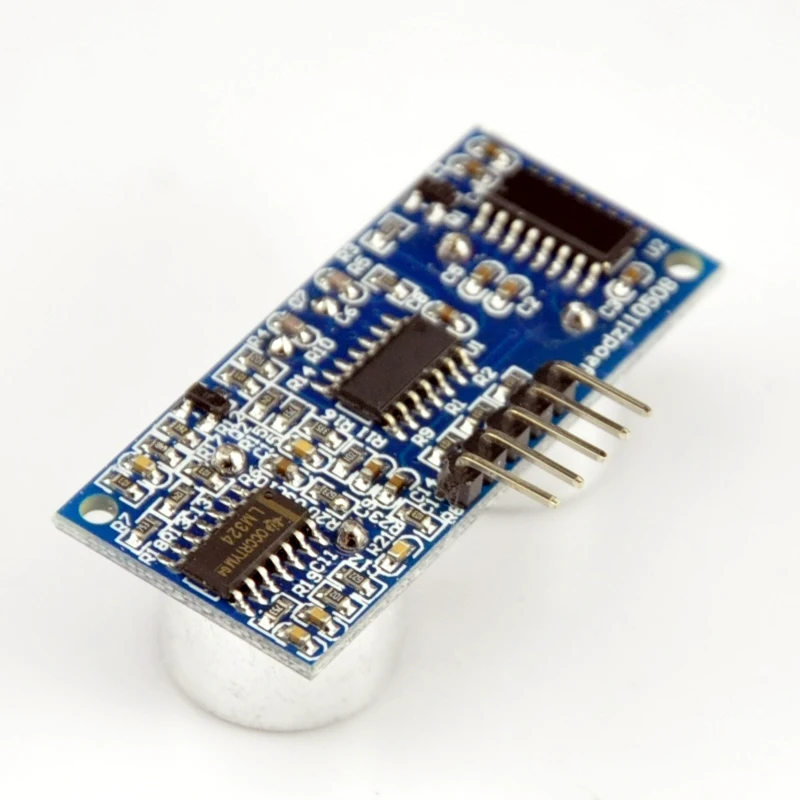

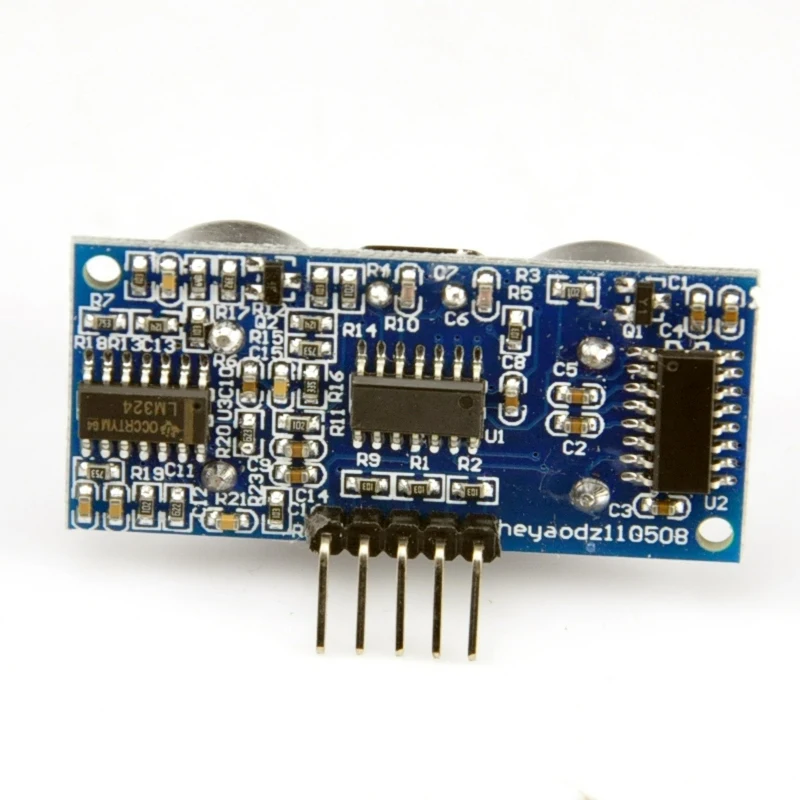

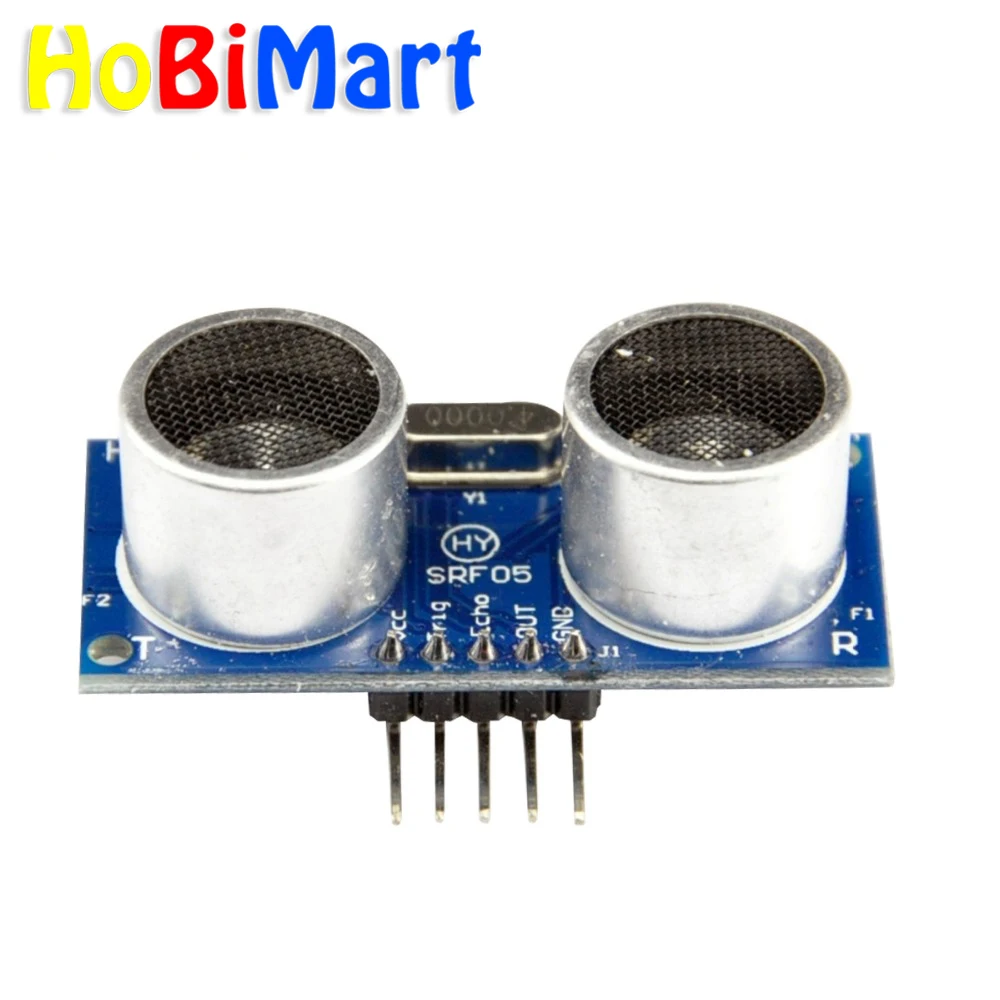

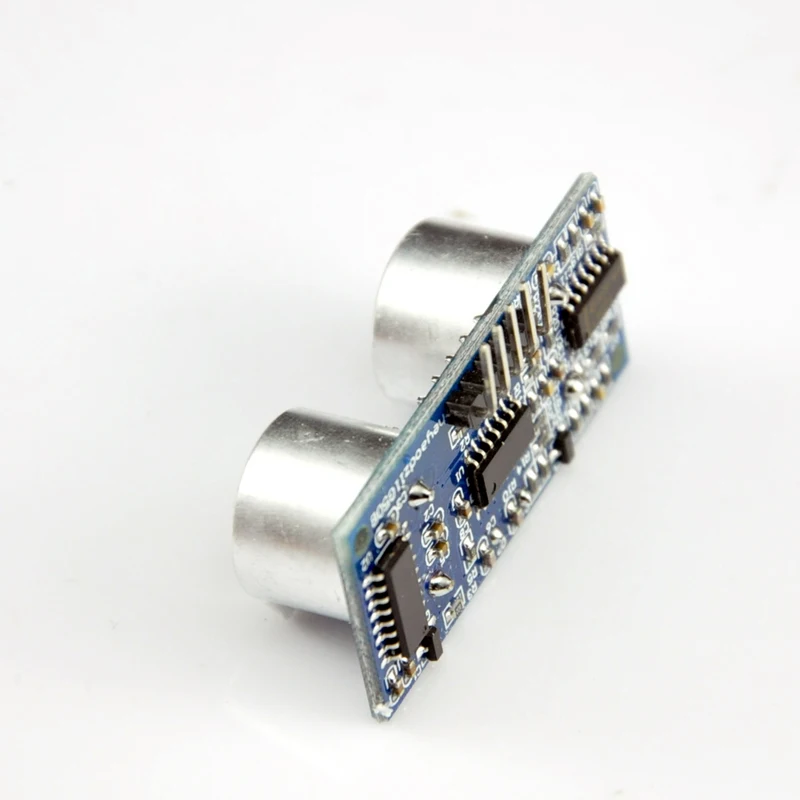

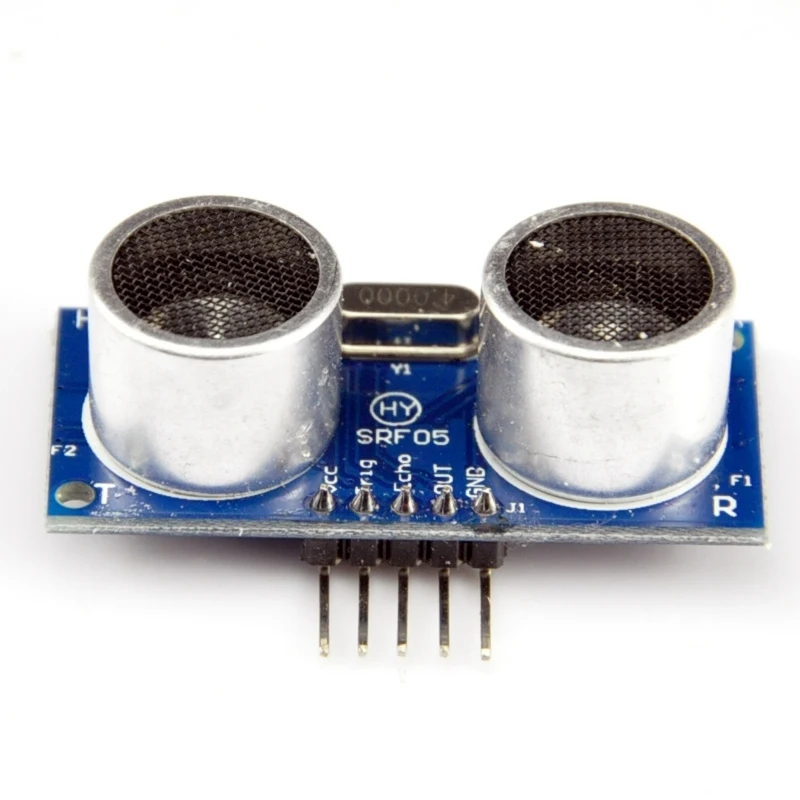

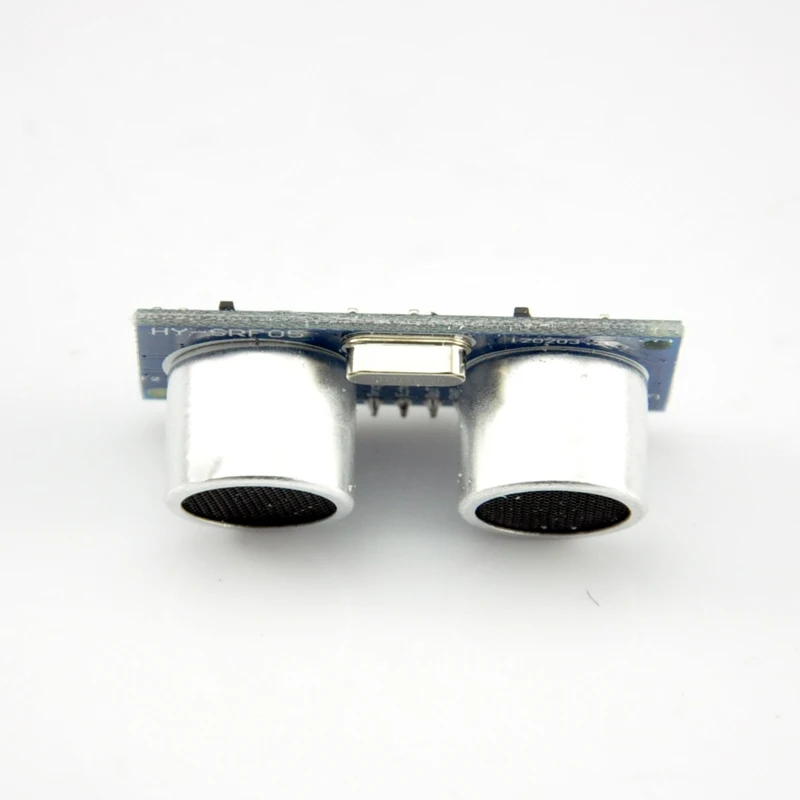

5pcs HY-SRF05 5pin Ultrasonic sensor distance measuring module HY-SRF05 ranging distance sensor module Free shipping #J147

(1) voltage: DC5V 2 Quiescent Current: <2mA
3: level output: high-5V 4: level output: Low 0V
5: Induction Angle: not more than 15 degrees 6: detection range: 2cm-450cm 7: High precision: up to 3mm
Wiring, VCC, trig 's (control side), echo (receiving end), GND ground
This product uses: a control Port an 10US more than the high, you can wait for the high output at the receiving port. One there
The output can be opened to the timer, you can read the timer value when this port goes low, this time for the distance measurement,
Order to calculate the distance. Such a continuous cycle of measurement, it can reach you move the measured value of ~ ~~

(1) IO trigger ranging to at least 10us high signal;
(2) module automatically sends eight 40kHz square wave, automatically detect whether a signal return;
(3) the signal to return, a high IO output, high duration of
Ultrasonic time from launch to return. Test distance = (time high * speed of sound (340M / S)) / 2;
This module provides a full range of ranging process: C51, PIC18F877 ultrasonic LCD1602 displays, ultrasonic LCD12864 display digital display, serialdisplay, ranging reference program.     5x HY-SRF05 Ultrasonic sensor distance measuring module
